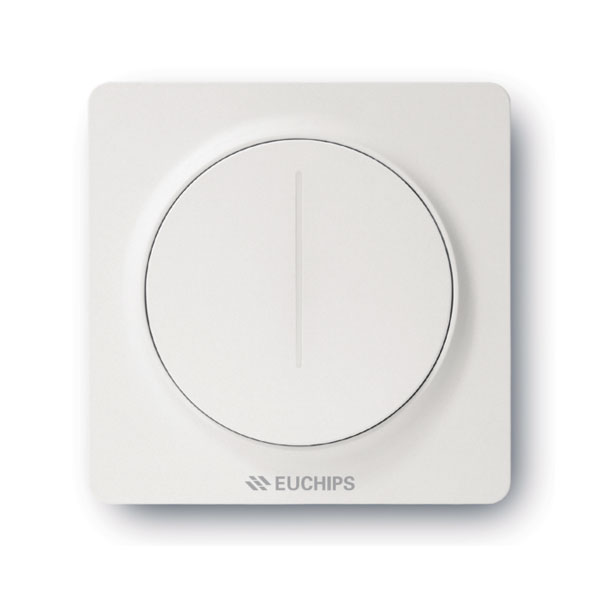

200~240VAC Triac Dimmer Walldim109W
200~240VAC Triac Dimmer Walldim109W
Product Introduction
· Excellent design and high-quality materials to ensure long-term stable and reliable service to users
· Optimized dimming algorithms maximize the compatibility of lights and does not flicker at any brightness
· Stepless touch dimming makes the brightness adjustment easy and smooth
· Silent mechanical push button design provide the user’s best feedback
Technical Paramaters
| Model | WALLDIM109W |
| Input Power | 200~240V AC 50Hz |
| Dimming Control | TRIAC Edge Cut |
| Inductive load (LED/CFL) | 220W Max |
| Resistive load (Incandescent) | 300W Max |
| Communication | WiFi 802.11 b/g/n 2.4GHz |
| Control Channel | 1 CH |
| Standby Power | ≤0.5W |
| Working Temperature | -10℃～45℃ |
| Working Humidity | <90％ |
| Button Life | 500K times |
| Dimension | 86*86*53.5mm |
