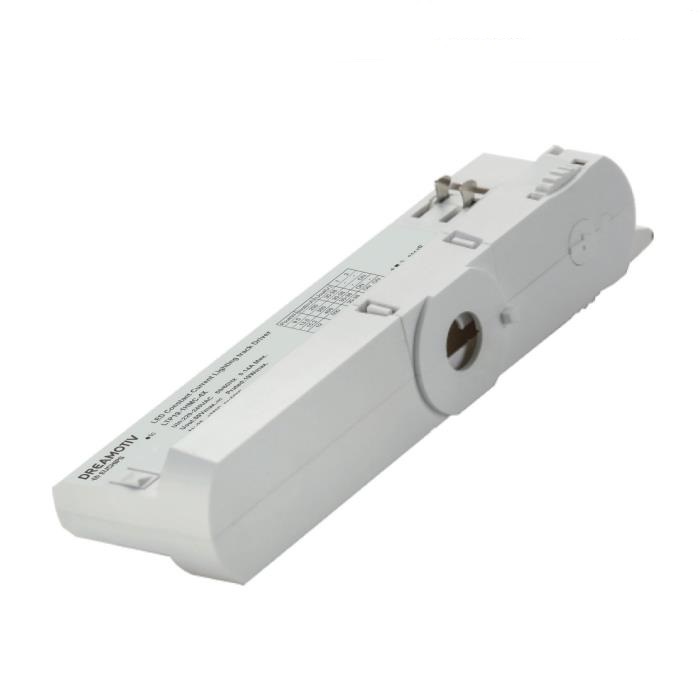

19W 250~500mA Nond-dimmable CC Driver LTP19-1HMC-4X-B W G
19W 250~500mA Nond-dimmable CC Driver LTP19-1HMC-4X-B W G
Features
· Constant Current Track Driver, High Power factor, Flicker-free
· High efficiency, full load efficiency ≧92%
· Strong adaptation, can be adapted to common guide rails
· Output current selectable: 250/350/400/500mA
· Luminaires of protection class II
· 5 years warranty
Technical Parameters
| Model | LTP19-1HMC-4X-B LTP19-1HMC-4X-W LTP19-1HMC-4X-G | |
|
Input |
Efficiency | ≥92%@220VAC, 36V |
| Rated Input Voltage | 220VAC-240VAC | |
| Range of Input Voltage | 198-264 VAC | |
| Range of D C Input Voltage | 180 -280VDC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power | ≤21.8W (230VAC, full load) | |
| Power Factor | ≥0.9 (230VAC, full l oad) | |
| THD | ≤20% (230VAC, full load) | |
| Input Current | ≤0.14A (230VAC，full load) | |
| No-load Power Consumption | ≤0.5W @230VAC | |
| Inrush Current | ≤15A/180us (230VAC，full load) | |
|
Connected quantity of 10A Breaker Connected quantity of 16A Breaker Connected quantity of 20A Breaker |
18pcs/type A ;30pcs/type B ; 50pcs/type C @ 230Vac 28pcs/type A;48pcs/type B ; 81pcs/type C @ 230Vac 32pcs/type A;60pcs/type B ; 101pcs/type C @ 230Vac |
|
| Output | Current(mA)/Voltage (VDC) Power(W) | 250mA/ 30-38V/ 7.5-9.5W 350mA/ 30-38V/ 10.5-13.3W
400mA/ 30-38V/ 12-15.2W 500mA/ 30-38V/ 15-19W |
| No Load Voltage | 59VDC Max. | |
| Current Ripple(< 120 Hz) | ±3% (Imax-Imin)/(Imax+Imin) | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Current Accuracy | ±5% | |
| Started Delay Time | ≤0.5S (230VAC，full load) | |
| Protection | Short Circuit Protection | Auto Recovery |
| Overload Protection | Auto Recovery (not be hot swap) | |
| No-load Protection | Auto Recovery | |
| Insulation voltage | 3000V 5mA 60S between P-S | |
| Insulation resistance | >100M ohm @ 500VDC | |
| Leakage current | < 700µA, I/P to O/P @230V input | |
| Standards | Safety Standards | EN61347-1:2015/A1:2021; EN61347-2-13:2014/A1:2017; |
| Performance | EN62384 | |
| Surge | L-N/2KV | |
| Environment | Ta/Operation Temperature | -25….+35℃ |
| Ts/Storage Temperature | -25….+70℃ | |
| Tc/Enclosure Temperature | 50℃ | |
| Humidity | 10%. 90%RH | |
| Atmosphere | 86-108KPa | |
| Construction | Connection Method | Push-in Terminal |
| Installation | Independent | |
| SEC Wire preparation | 0.5-1.5² | |
| Dimension | 155*31.1* 42.2mm (L*W* H) | |
| Others | RoHS | Complied to 2011/65/EU |
| Life Time | 50000hrs@tc=50℃ | |
| Warranty | 5years, F.R. <10000ppm | |
| Remark | All Parameters, if not specified, are measured at 230VAC/50Hz and 25℃ ambient temperature.
LED Driver is a component of the luminaires, Luminaires and wire layout will affect the EMC, please check the EMC with end products again. |
|
