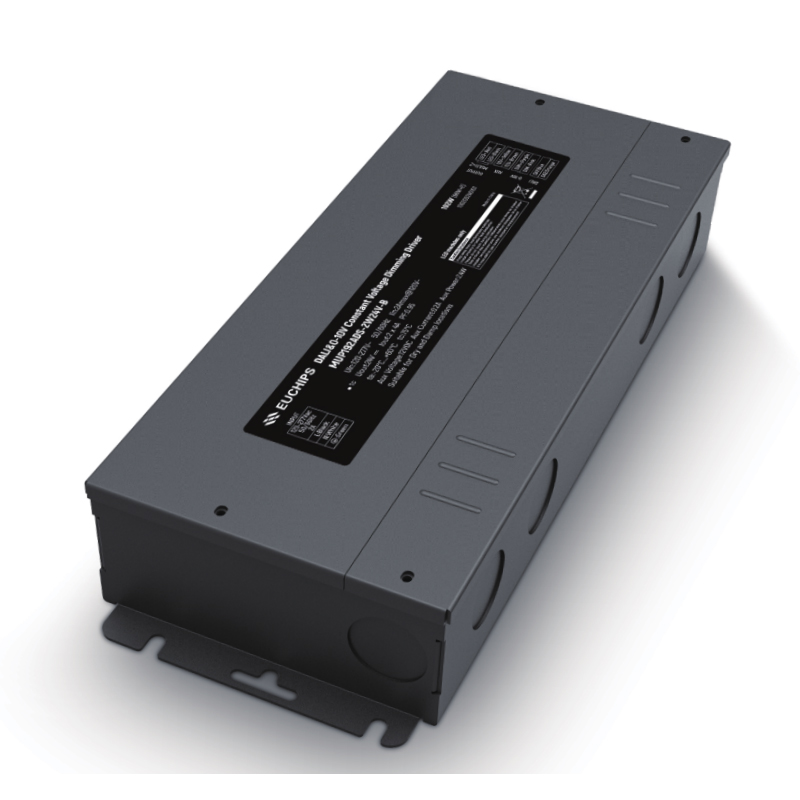

192W 24VDC 2ch DALI&0/1-10V CV Driver MUP192ADS-2W24V-B
192W 24VDC 2ch DALI&0/1-10V CV Driver MUP192ADS-2W24V-B
MUP192ADS-2W24V-B is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386, and provides DALI,0/1-10V active signal dimming.
Features
· Dual channel constant voltage output, the maximum output current per channel is 4A
· Wide input voltage of 120VAC ~ 277VAC
· Dimming range of 0.1-100%, and dimming effect smooth, Flicker free
· 100% output when no dimming signal input, can be used as normal power supply
· IP20, suitable for indoor LED lighting application
· Protection: Over load; short circuit; Over Current
· Up to 50000-hour life time.
· 5 year warranty
Technical Parameters
| Model | MUP192ADS-2W24V-B | |
| Input | Efficiency | ≥91%@120VAC, ≥93%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 2Amax @120VAC 1Amax@230VAC 1Amax@277VAC | |
| PF | ≥0.95@120VAC ≥0.90@277VAC, full load | |
| THD | <10%@120VAC <10%@277VAC, full load | |
| Inrush Current(max) | Cold start,40A@120VAC 240us | |
| Standby power | <0.5W@120VAC | |
| No load power | <0.75W@120VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
| Output | Current | 2 Channel, 4A per channel |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 96W per channel, total 192W | |
| Overload power limitation | ≥105% | |
| Ripple & Noise | ≤720mV | |
| Channel | 2 | |
| Auxiliary Power (Vaux) | 12VDC±3% 200mA | |
| Frequency | 20KHz PWM | |
| Function | Dimming Type | 0-10V, DALI |
| Dimming Range | 0.1%-100% Dimming to off | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free IEEE1789 | |
| Protection | Short Circuit | Close output, Automatic recovery after troubleshooting |
| Over Load | Close output, Automatic recovery after troubleshooting | |
| Over Current | Close output, Automatic recovery after troubleshooting | |
| Safety&EMC | Surge | L-N: 2KV L-N-PG:4KV |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA O/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 CSA C22.2 No250.13 | |
| EMC Eission | FCC PART15B | |
| Energy efficiency | Title24 | |
| Others | Working Temp. | -20℃~+60℃ (-4°F~140°F) |
| Storage Temp., Humidity | -40℃ ~85℃ (-40°F~185°F) 20-90%RH | |
| tc | 75℃(167°F) | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃(167°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 1650g (3.63 lb) ±5%/PCS; 8PCS/Carton;13.7kg(30.2 IB)±5%/Carton; Carton Size: 452*284*135mm(17.8*11.2*5.3 Inch)(L*W*H) | |
| Dimension | 262*104*46mm (10.31*4.1*1.8 Inch) (L*W*H) | |
