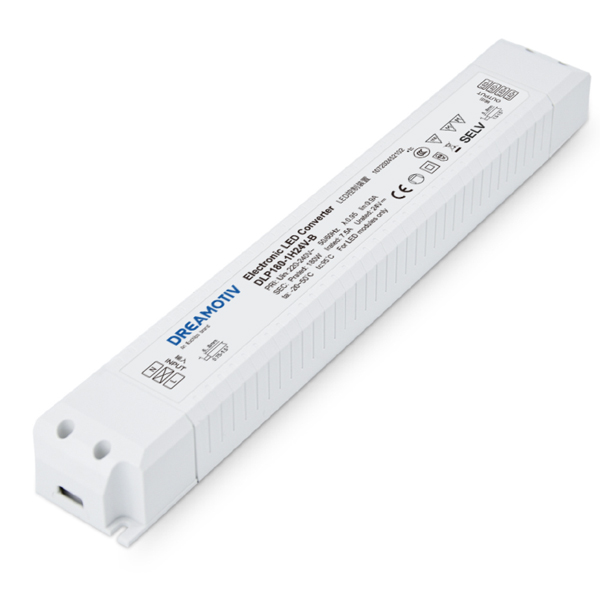

180W 24VDC Non-dimmable CV Driver DLP180-1H24V-B

Short Description:

Item No.: DLP180-1H24V-B
Output Power: 180W

Product Detail

Product Tags

180W 24VDC Non-dimmable CV Driver DLP180-1H24V-B

Features
· A channel constant voltage output
· Applicable to indoor LED lights
· Small size, high efficiency, high reliability and long life time
· -20℃~+50℃, working temp
· Protections: Over Current, Over load, Short circuit self-recovery protection
· The typical efficiency of the machine is up to 92%
· Compliance with CE and ROHS
· 100% Full load aging test

Technical Paramaters

Model	DLP180-1H24V-B
Input	Efficiency	≥92%@230VAC, full load
	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Power Factor	>0.95@230VAC, full load
	THD(full load)	<10%@230VAC, full load
	AC Current(max)	0.9Amax@230VAC
	Inrush current	Cold start,60A@230VAC 330us
	Standby power	≤0.5W
	No load power	≤0.5W
	Turn on delay Time	≤0.5 s, at230Vac (When the light begins to shine)
Output	Current(mA)	7.5A
	Voltage (VDC)	24VDC
	Power(W)	180W
	Channel	1
	Voltage ripple	300 mV
	Voltage Accuracy	±3%
	No load output voltage	25.2VDC max
Protection	Short Circuit	No output hiccup protection, the output is normal after troubleshooting
	Over Current	No output hiccup protection, the output is normal after troubleshooting
	Over Load	No output hiccup protection, the output is normal after troubleshooting
Safety& EMC	Surge	L-N 1000VAC
	Withstand Voltage	Input-output: 3000Vac/1min/<5mA
	Performance standard	IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
	EMC Eission	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2
Others	Working Temp.	-20℃~50℃
	Storage Temp., Humidity	-40℃~85℃ 20-90%RH
	tc	95 @230Vac
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:90℃
	Warranty Condition	5 years
	Switch Cycle	25,000 times
	Packing(weight)	Net weight: –g±5%/PCS;30PCS/Carton;–kg±5%/Carton; Carton Size:352274234mm(LWH)
	Dimension	3455035mm（LWH）
