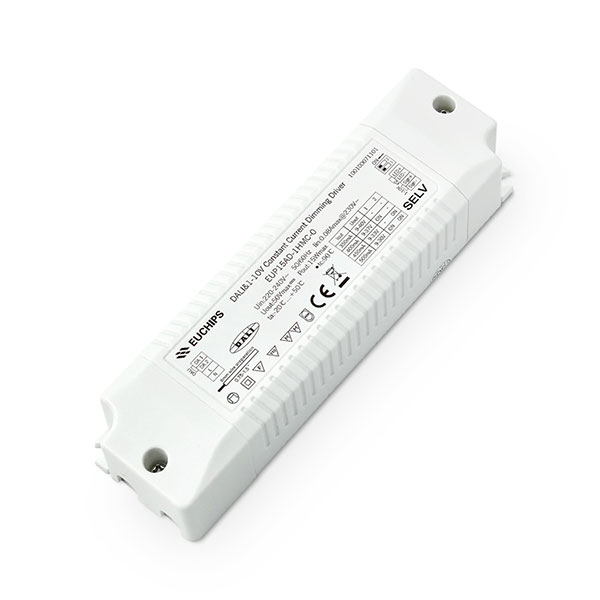

15W 350/400/450/500mA*1ch DALI&0/1-10V CC Driver EUP15AD-1HMC-0
15W 350/400/450/500mA DALI&0/1-10V Constant Current LED Driver EUP15AD-1HMC-0
EUP15AD-1HMC-0 is a 15W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch , complies with DALI standard protocol IEC 62386,and provides multiple dimming function (DALI,1-10V active signal ,PWM, adjustable resistance, and Touch DIM) to achieve a smooth dimming effect.
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Support a variety of dimming mode（DALI / 0-10V active signal / adjustable resistance / PWM / Touch DIM）
3. Built-in active PFC function
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over temperature
7. Suitable for indoor LED lighting application, such as down light, spot light,panel light, and so on
Technical Parameter
| Model | EUP15AD-1HMC-0 | |
| Input | Efficiency | >85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.08Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC | |
| Output | Current(mA)/Voltage (VDC)Power(W) | 350mA/9-40VDC/14W 400mA/9-37VDC/14.8W 450mA/9-33VDC/14.85W 500mA/9-30VDC/15W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 50V Max | |
| Turn on delay Time | <1.5s, at230Vac | |
| Function | Dimming Type | DALI/1-10V active signal/adjustable resistance/PWM/Touch DIM |
| Priority order | DALI>(1-10V active signal/adjustable resistance/PWM)> Touch DIM | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >100,000 tims | |
| Packing(weight) | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | |
| Dimension | 150*43*29mm（L*W*H） | |
