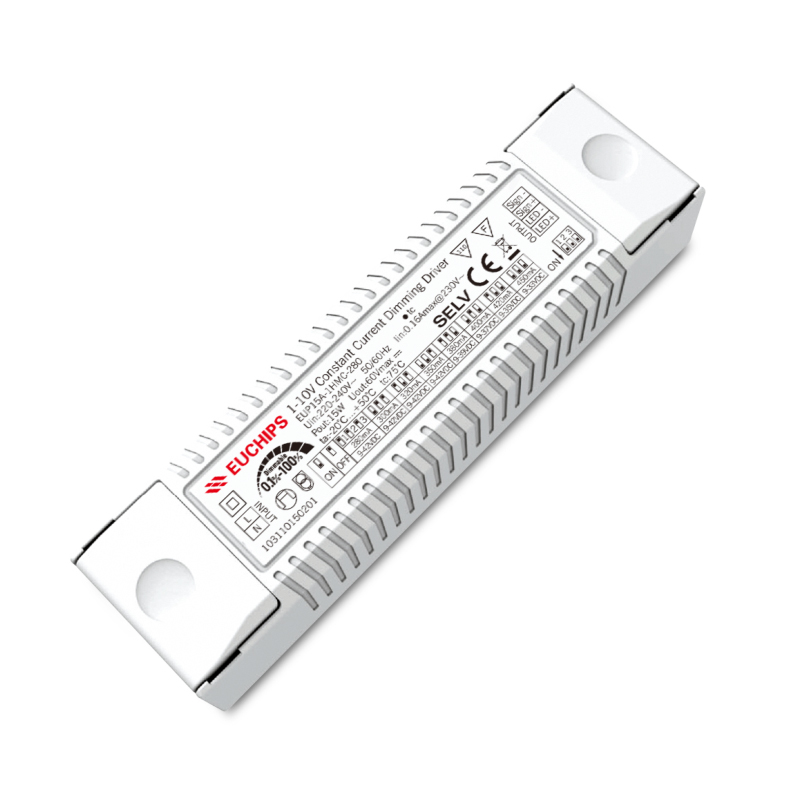

EUP15A-1HMC-280 is a can provide 280/300/320/350/380/400/420/450mA eight current LED driver.The output current can be easily set by DIP switch, external 1-10V active signal, adjustable resistance, PWM signal to achieve smooth dimming; When the external signal is not connected, it can be used as a conventional power supply.
Features
· Single channel output, output current level selectable by DIP S.W.
· Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)
· Input voltage of 220VAC ~ 240VAC
· 100% output when no dimming signal input, can be used as normal power supply
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load, over temperature
· Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
|
Model |
EUP15A-1HMC-280 | |
|
Input |
Efficiency | 78%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.5@230VAC, Full load | |
| AC Current(max) | 0.16Amax@230VAC | |
| No load power | ≤1.5W | |
| Turn on delay Time | ≤ 0.75s, at230Vac (When the light begins to shine) | |
| Inrush Current(max) | Cold start,12A(twidth=100us at 50%Ipeak)@230VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 280mA/9-42VDC/11.76W 300mA/9-42VDC/12.60W 320mA/9-42VDC/13.44W 350mA/9-42VDC/14.70W380mA/9-39VDC/14.82W 400mA/9-37VDC/14.80W 420mA/9-35VDC/14.70W 450mA/9-33VDC/14.85W |
| Output Voltage | 9-42V | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Standby Power | <1.5W | |
| No load output voltage | 60V Max | |
| Function | Dimming Type | 1-10V active signal, adjustable resistance, PWM signal |
| Dimming Range | 0.3%-100% darken until closed | |
| Dimming curve | Linearity | |
| Protection | Over load | Current down, troubleshooting output normal |
| Short circuit | Short circuit No output, troubleshooting output normal | |
| over temperature | Turn off the output and automatically resume when the temperature returns to normal | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 75℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:70℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 70g±5%/PCS; 100PCS/Carton; 7.5kg±5%/Carton; Carton Size: 515*235*140mm(L*W*H) | |
| Dimension | 110*30*22mm(L*W*H) | |
