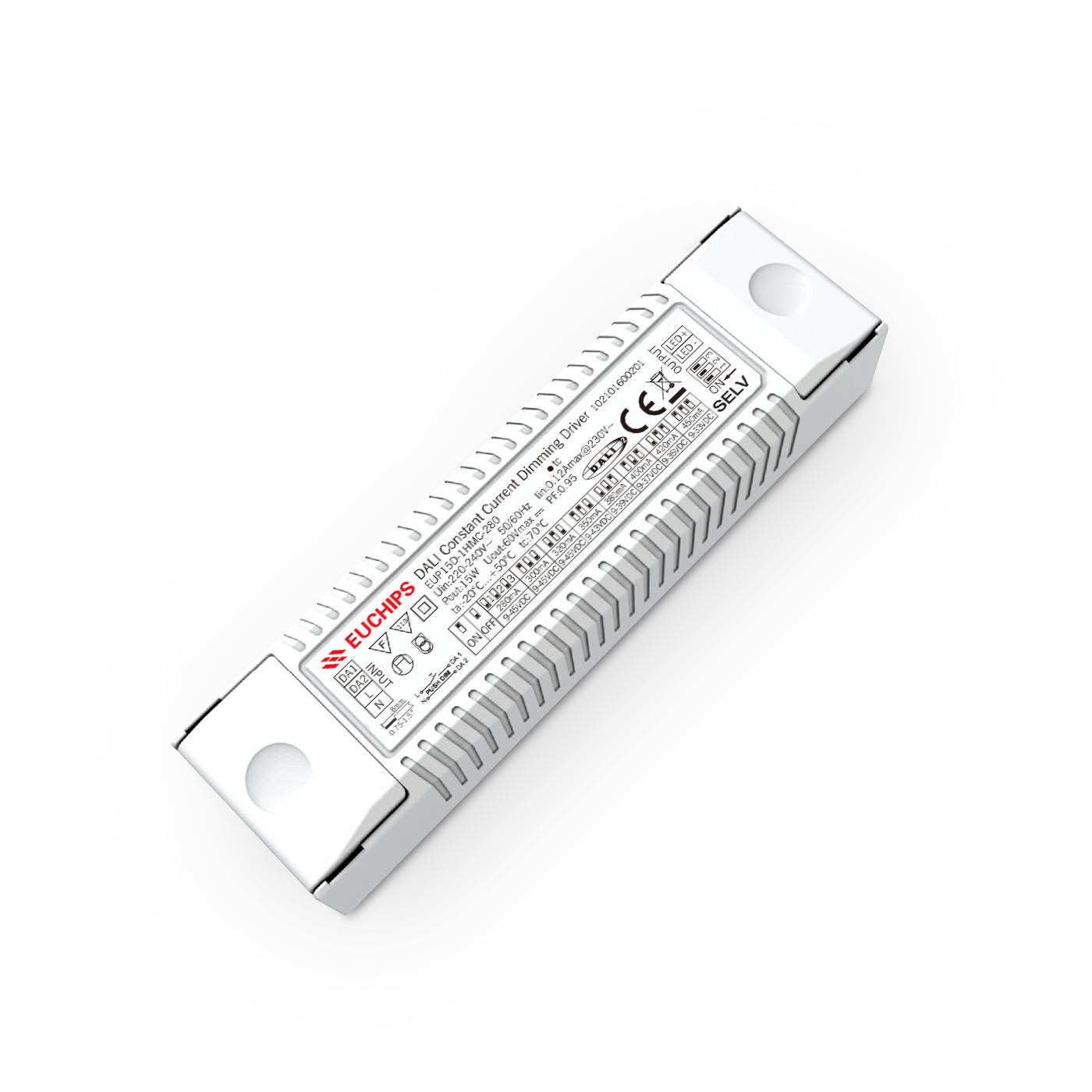

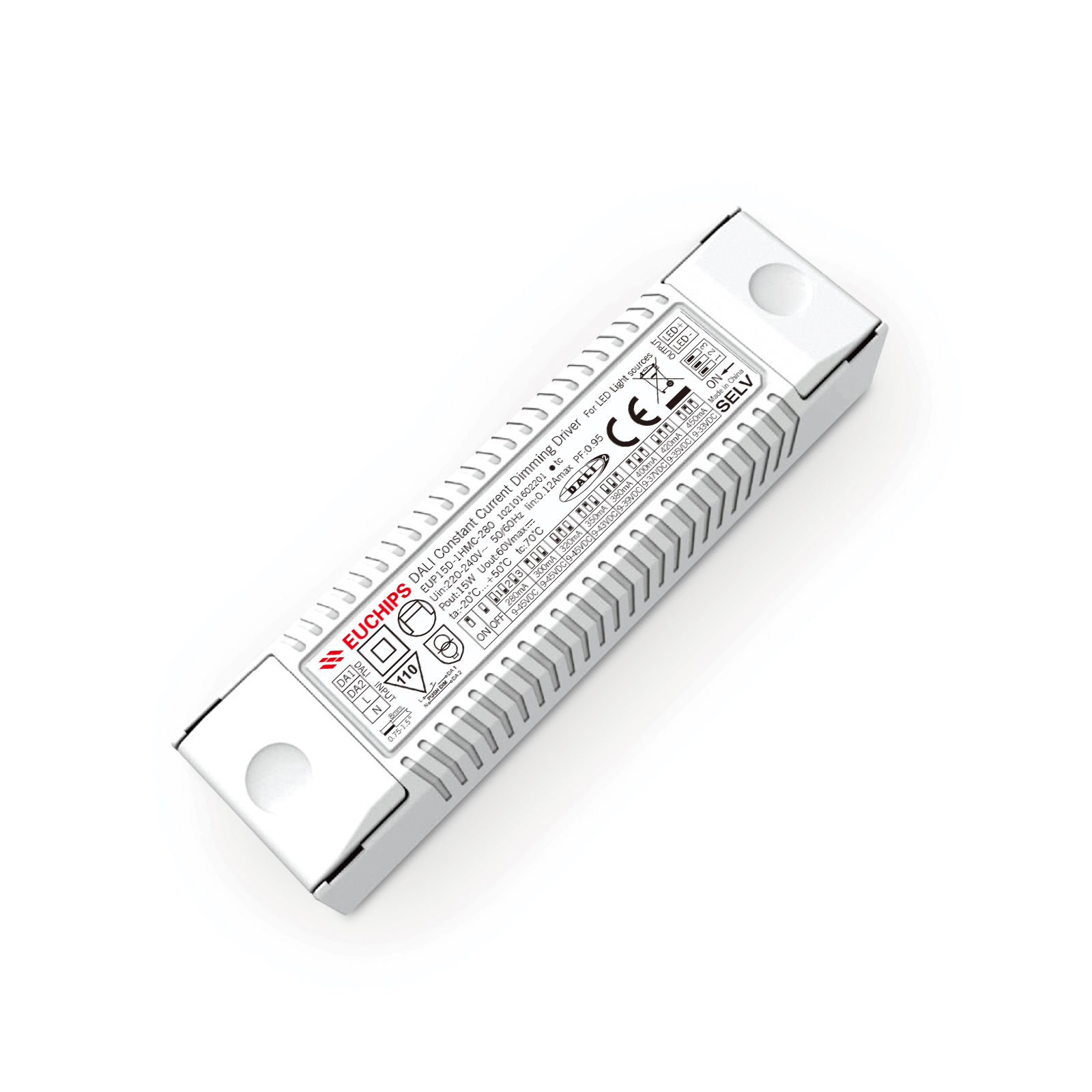

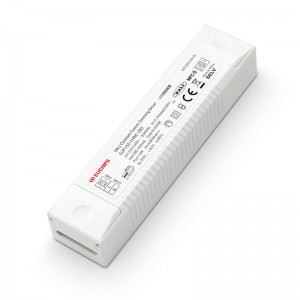

15W 280~450mA*1ch DALI CC Driver EUP15D-1HMC-280
15W 280~450mA DALI CC Driver EUP15D-1HMC-280
EUP15D-1HMC-280 is a 15W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP15D-1HMC-280 can be connected to DALI main controller or Touch DIM(PushDIM) to achieve a smooth dimming effect.
Features
· Single channel output, output current level selectable by DIP S.W.
· Meet DALI Protocol IEC 62386-207
· Support Touch DIM (Push DIM)function
· Built-in active PFC function
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load, no load
· Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
| Model | EUP15D-1HMC-280 | |
| Input | Efficiency | >82%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50/60Hz | |
| Power Factor | 0.95@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Current | 0.12Amax@230VAC, Full load | |
| Inrush Current | cold start,6A(twidth=6us measured at 50% Ipeak@230VACC | |
| Output | Current/voltage/power | 280mA/9-45VDC/12.60W
300mA/9-45VDC/13.5W 320mA/9-45VDC/14.40W 350mA/9-43VDC/15.05W 380mA/9-39VDC/14.82W 400mA/9-37VDC/14.8W 420mA/9-35VDC/14.7W 450mA/9-33VDC/14.85W |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Standby Power | <1W | |
| No Load Output Voltage | 60V Max | |
| Turn On Delay Time | <0.75s, at 230Vac (When the light begins to shine) | |
| Function | Dimming Mode | DALI 2.0 |
| Dimming Range | 0.1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short Circuit | Short circuit without output, troubleshooting results in normal output |
| Over Load | Current drops, troubleshooting output is normal | |
| Safety | Surge | L-N 0.5KV |
| Withstand Voltage | I/P-O/P: 1000Vac/1min/<5mA O/P-DALI( Signal port ):500Vac/1min/<5mA I/P-DALI( Signal port ):500Vac/1min/<5mA | |
| Safety standards | EN61347-1,EN61347-2-13 | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 70℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Dimension | 110*30*22.5mm(L*W*H) | |
| Packing(weight) | Net weight: 90 g±5%/PCS; 100 PCS/Carton; 9.5 kg±5%/Carton; Carton Size: 515*235*140mm(L*W*H) | |
