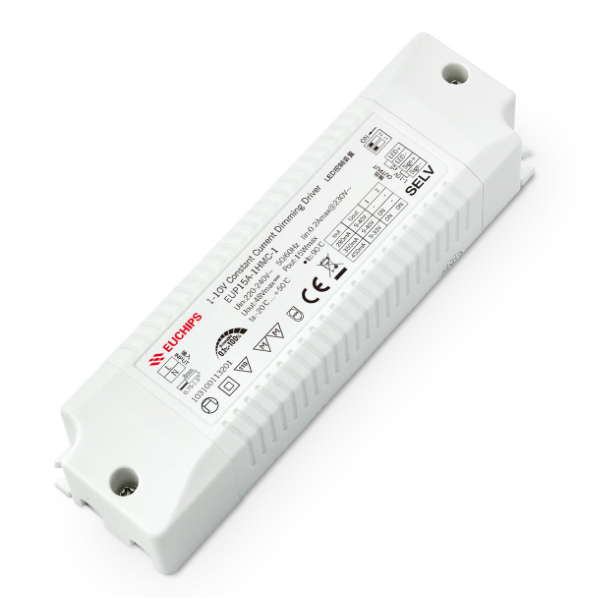

15W 280/350/450mA*1ch 0/1-10V CC Driver EUP15A-1HMC-1
15W 280/350/450mA*ch 0/1-10V CC Driver EUP15A-1HMC-1
EUP15A-1HMC-1 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Features
·Single channel output, output current level selectable by DIP S.W.
·Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
·Class 2 power supply. Full protective plastic housing
·100% output when no dimming signal input, can be used as normal power supply
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load, over temperature
·Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameters
| Model | EUP15A-1HMC-1 | |
| Input | Efficiency | 82%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.5@230VAC,Full load | |
| AC Current(max) | 0.2Amax@230VAC | |
| Inrush Current(max) | Cold start,15A(twidth=22us measured at 50% Ipeak)@230VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 280mA/9-40VDC/11W 350mA/9-40VDC/14W
450mA/9-33VDC/14.85W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Standby Power | <1W | |
| No load output voltage | 48V Max | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming Range | 0.1%-100% Dimming to off | |
|
Protection |
Short Circuit | after fault removed Close output ,the output current recovers automatically |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | |
|
Others |
Working Temp. | -20℃ ~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 120g±5%/PCS; 50PCS/Carton; 6.5kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | |
| Dimension | 150*43*29mm（L*W*H） | |
