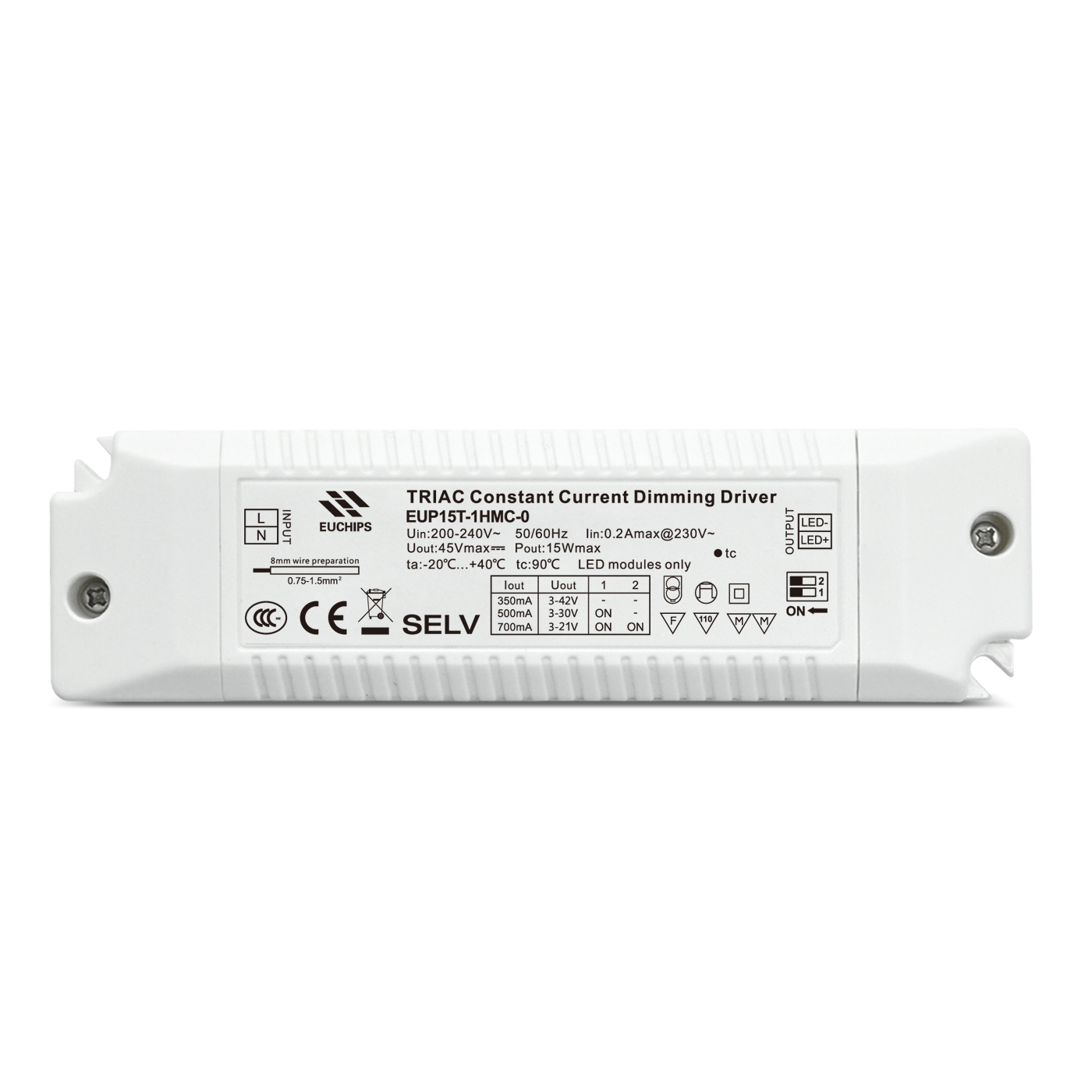

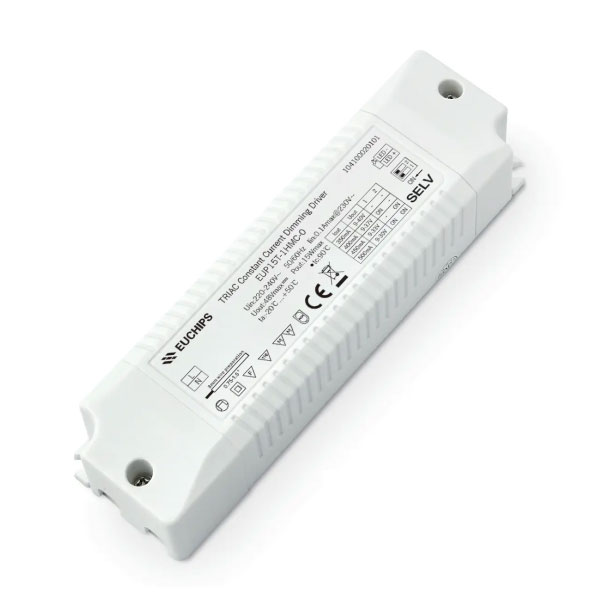

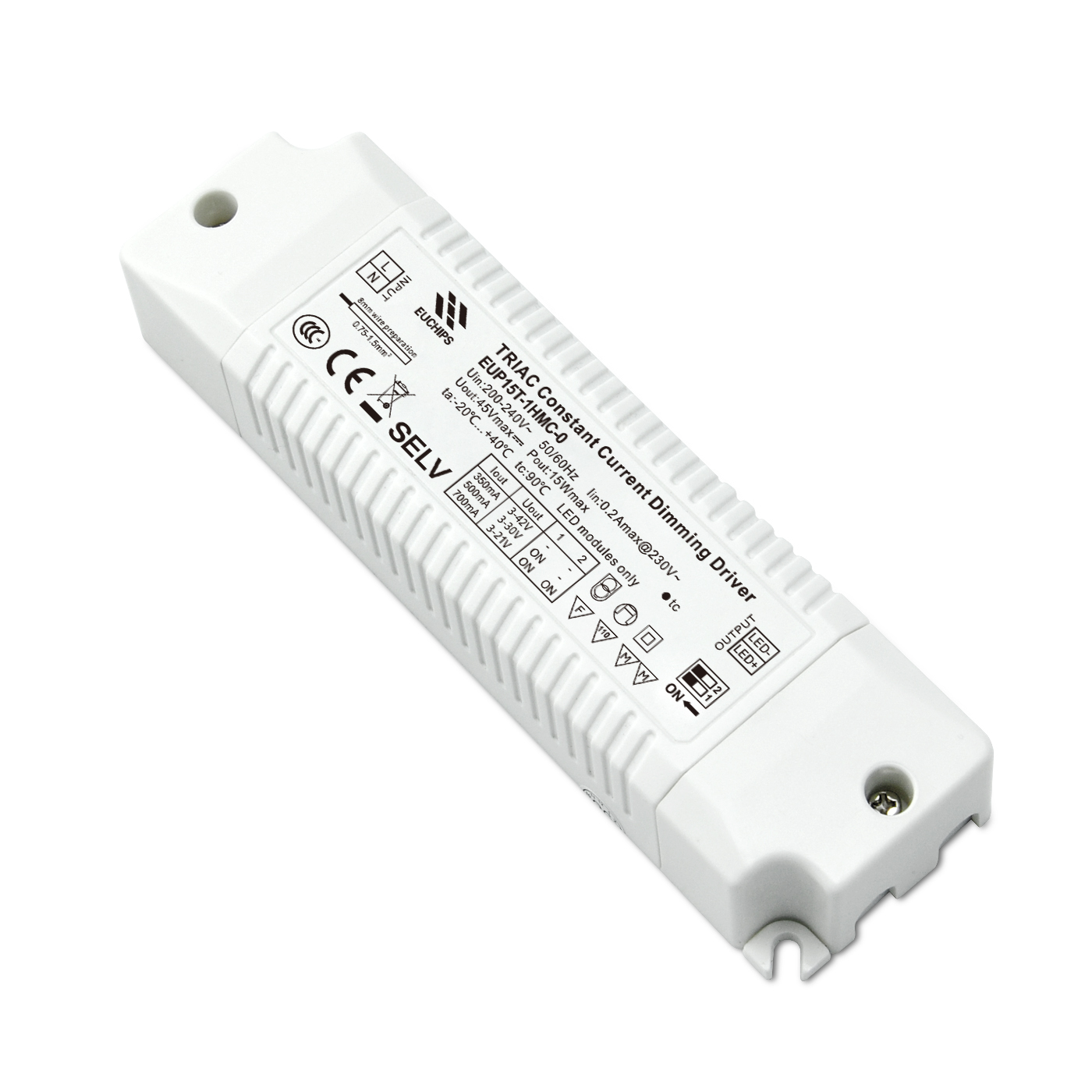

15W 350/400/450/500mA*1ch Phase-cut CC Driver EUP15T-1HMC-0
15W 350/400/450/500mA*1ch Phase-cut Constant Current LED Dimming Driver EUP15T-1HMC-0
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (TRIAC) and Trailing edge (ELV) Dimmer
3. Dimming range from 40VAC to 240VAC
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over temperature
7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameter
| Model | EUP15T-1HMC-0 | ||
| Input | Efficiency | 77%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC, Full load | ||
| THD | <20%@230VAC, Full load | ||
| Current | 0.1Amax@230VAC, Full load | ||
| Inrush Current | Cold start, 6A(twidth=30us measured at 50% Ipeak@230VAC | ||
| Output | Current/Voltage/Power | 350mA/9-40VDC/14W400mA/9-37VDC/14.8W450mA/9-33VDC/14.85W
500mA/9-30VDC/15W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No Load Output Voltage | 48V Max | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac |
ELV |
| Protection | Over temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | ||
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 90℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.75kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||
