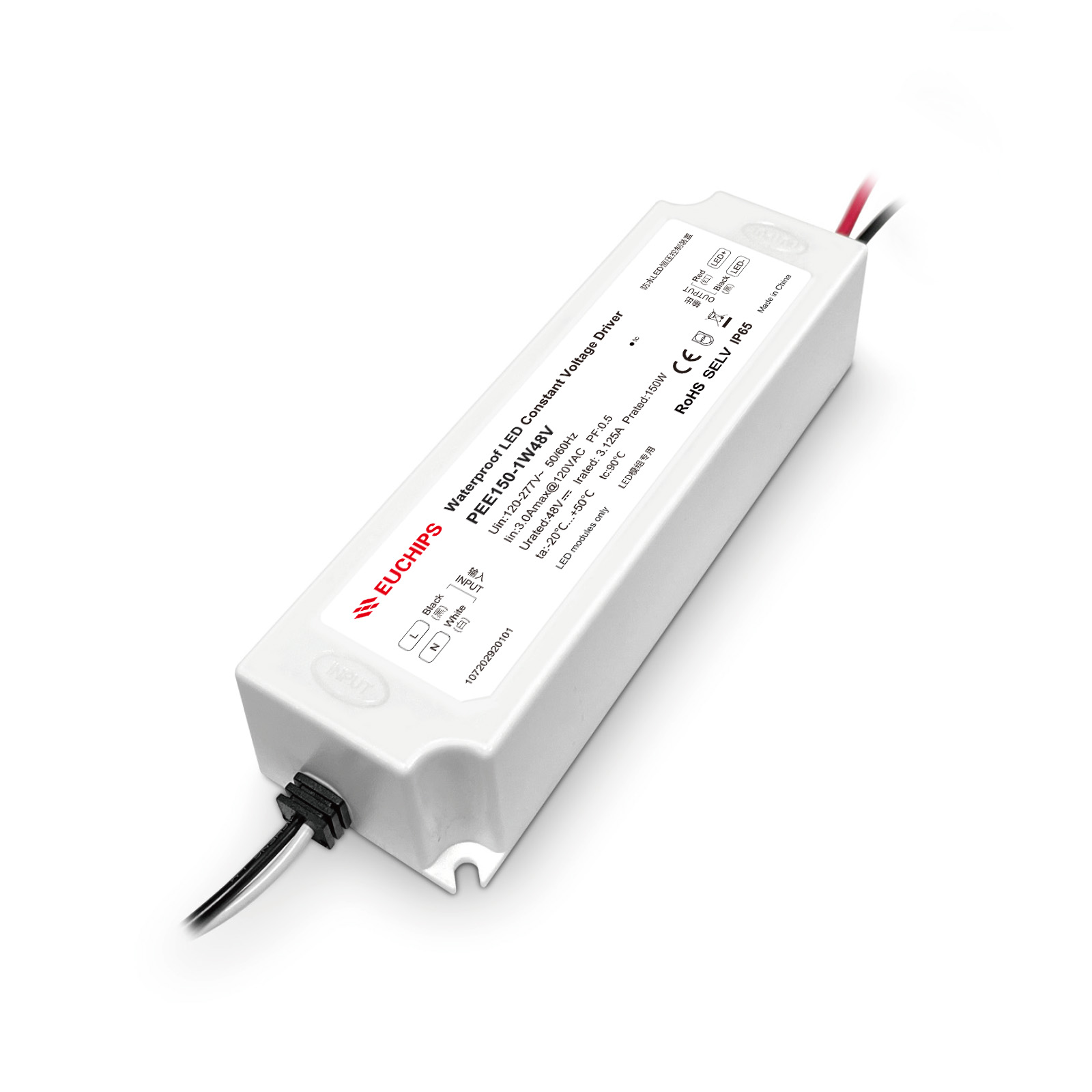

150W 48VDC Non-dimmable Waterproof CV Driver PEE150-1W48V
150W 48VDC Non-dimmable Waterproof CV Driver PEE150-1W48V
Features
·full power output
·Insolated PC design
·Isolated design,safe and reliable
·Protections:Over load,Short circuit,over Current
·Protection grades is as high as IP65
·5 years warranty
· Flicker Free
Technical Parameters
|
Model |
PEE150-1W48V | |
|
Input |
Efficiency | ≥89%@230VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Power Factor | ≥0.5@230VAC, full load | |
| Current | 3.0Amax@120VAC | |
| Inrush Voltage | Cold start,110A@230VAC 100us | |
| Standby power | <0.5W | |
| No load output voltage | <0.5W | |
|
Output |
Current/Voltage/Power | 3.125A/48VDC/150W |
| Ripple Current | ≤200mV | |
| Channel | 1 | |
| No load output voltage | 50.4VDC max | |
| Turn On Delay Time | ≤0.5 s, at230Vac (When the light begins to shine) | |
| Protection | Over Voltage | Current down, troubleshooting output normal |
| Over load | Reduce current hiccup protection and troubleshoot normal output | |
| Short circuit | Short circuit no output, troubleshooting output normal | |
|
Safety & EMC |
Lightning Surge | L-N:2000VAC |
| Withstand Voltage | I/P-O/P:3000Vac/1min/<5mA | |
| Safety Standards | EN61347-1 EN61347-2-13 UL8750 | |
| EMC Emission | EN55015 FCC Part15 ClassB | |
| Insulation Resistance | 5MΩ | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Plastic case | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:50℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 738g±5%/PCS; 20PCS/Carton; 15.2kg±5%/Carton; Carton Size: 304*227*220mm(L*W*H) | |
| Dimension | 190*61*38mm(L*W*H) | |
