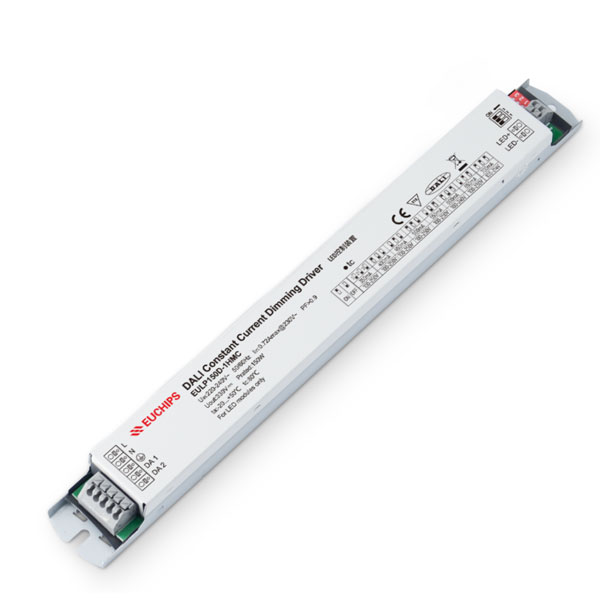

150W 350~700mA*1ch DALI CC Driver EULP150D-1HMC
150W 350~700mA*1ch CC DALI Driver EULP150D-1HMC
EULP150D-1HMC is a 150W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386 EULP150D-1WMC can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support DALI software to adjust output current
3. Meet DALI protocol IEC 62386
4. Support Touch DIM function
5. High efficiency up to ≥95%
6. Built-in active PFC function
7. Logarithmic dimming，dimming effect smooth, no flicker
8. Protections: Short circuit, Over load, Over voltage
9. Suitable for indoor LED lighting application, vapor light, and so on
Technical Parameters
| Model | EULP150D-1HMC | |
| Input | Efficiency | ≥95%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.95@230VAC, Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.86Amax@230VAC | |
| No load power | <0.5W | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start,80A@230VAC 120us | |
| Output | Current(mA)/Voltage (VDC)Power(W) | 350mA/100-250V/87.5W 400mA/100-250V/100W 450mA/100-250V/112.5W 500mA/100-250V/125W550mA/100-250V/137.5W 600mA/100-240V/144W 650mA/100-230V/149.5W 700mA/100-214V/149.8W |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 300VDC maxc | |
| Function | Dimming Mode | DALI |
| Dimming Range | 1-100% | |
| Protection | Short circuit | Close output, recovers automatically after fault removed |
| Over Load | No output, power off and restart | |
| Over Voltage | No output, power off and restart | |
| Safety&EMC | Surge | L-N:1kV L&N-PE:2kV |
| Withstand Voltage | I-PE: 1500VAC/1min/5mA O-PE: 1500VAC/1min/5mA | |
| Safety Standards | EN61347, EN61347 | |
| Performance | EN62384, EN62386 | |
| EMI | EN55015, FCC Part 15 Class A | |
| Other EMC | EN61000-3-3, EN61000-3-2, EN61547 | |
| Others | Working Temp. | -20℃~60℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 80℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: TBDg±5%/PCS; TBDPCS/Carton; TBDkg±5%/Carton; Carton Size:–*–*–mm(L*W*H) | |
| Dimension | 280*30*21mm(L*W*H) | |
