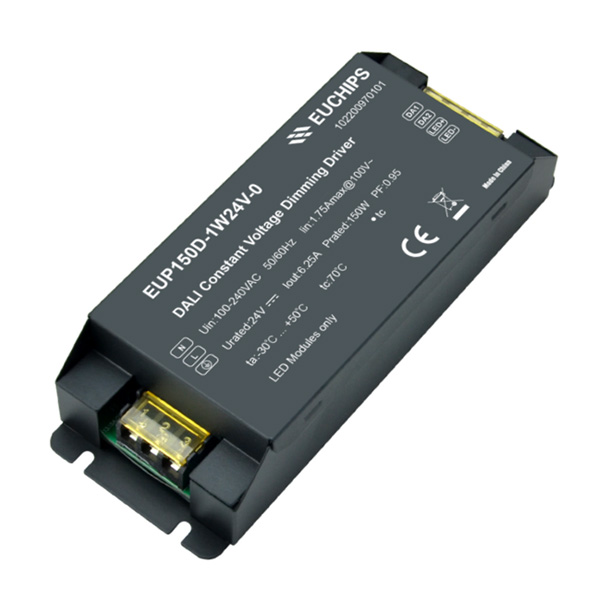

EUP150D-1W24V-0 is a constant voltage output LED dimming driver that can be used indoors, and this driver meets the requirements DALI standard protocol IEC62386. Support DALI, adjustable resistance, PWM, Touch DIM dimming mode.
Features
· Single channel constant voltage output, 24V DC output per channel
· Support passive 0/1-10V analog dimming signal
· Dimming range from 0-100%, LED brightness starting from 1%
· Smooth dimming curve without jitter
· Load protection, short circuit protection, overcurrent protection
Technical Parameters
|
Model |
EUP150D-1W24V-1 | |
|
Input |
Efficiency | 93%@230VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Current | 1.75Amax@100VAC | |
| Inrush Current | Cold start,51.2A 480uS@230VAC | |
| Standby power | ≤1W | |
| No load power | ≤1W | |
| Inrush current | ≤ 1 s, at100Vac ( When the light begins to shine ) | |
|
Output |
Current / Voltage / Power | 6.25A/24VDC/150W |
| Output Voltage | ±5% | |
| Current Accuracy | ±3% | |
| Ripple current | ±5% | |
| No load output voltage | 25.2V max | |
| Function | Dimming type | DALI / PUSH DIM |
| Dimming range | 0%-100% | |
| Dimming curve | Logarithm | |
| Protection | Over load | No output, troubleshooting self-recovery |
| Short circuit | No output, troubleshooting self-recovery | |
| Over Current | No output, troubleshooting self-recovery | |
|
Safety&EMC |
Surge | L-N 1000VAC N-PE2000V L-PE2000V |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA ; I/P-GND: 1500VAC/1min/5mA ; O/P-GND : 500VAC/1min/5mA | |
| Safety standards | IEC/EN62384,IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Emission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resistance | 5MΩ | |
|
Others |
Working temp. | -30℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 70℃ | |
| Material | Metal | |
| IP rating | IP20 | |
| Lifetime | 30,000h @tc:70℃ | |
| Warranty | 3 year | |
| Switch cycle | >15,000 times | |
| Packing size | Net weight: 650g±5%/PCS; 18PCS/Carton; 12.2kg±5%/ box; Outer box size: 303*221*265mm(L * W * H) | |
| Dimension | 206*75*40mm (L * W * H) | |
