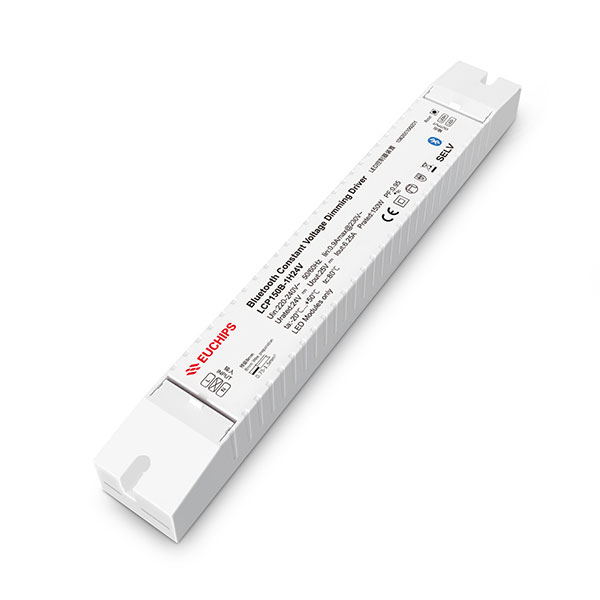

150W 24VDC Bluetooth Driver LCP150B-1H24V
150W 24VDC Bluetooth Driver LCP150B-1H24V
LCP150B-1H24V is a constant voltage mode output LED driver.This driver can be controlled by Bluetooth to achieve a smooth dimming effect.
Features
· Single channel constant voltage output,6.25A Max
· High input voltage of 220VAC ~ 240VAC
· Dimming effect smooth, no flicker
· Over load protection; over voltage protection; short circuit protection
· IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | LCP150B-1H24V | |
|
Input |
Efficiency | 92%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95@230VAC,Full load | |
| THD(full load) | 5%@230VAC, Full load | |
| AC Current(max) | 0.9Amax@230VAC | |
| No-load power | <1.2W | |
| Standby power | <1.2W | |
| Inrush Current(max) | Cold start,30A@230VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 6.25A/24VDC/150W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
| R & N (Max) | <240mV | |
| Function | Dimming Type | Bluetooth |
| Dimming Range | 0%-100% | |
|
Protection |
Over voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short Circuit | Hiccup, recovers after fault condition is removed | |
|
Safety& EMC |
Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547℃ ℃ | |
|
Others |
Working Temp. | -20 ~50℃ ℃, |
| Storage Temp., Humidity | -40 ~85 20-90%RH℃ | |
| tc | 80 | |
| Material | PC | |
| IP Rating | IP20℃ | |
| Lifetime | 50,000h@tc:85 | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 340g±5%/PCS; 50PCS/Carton;17.5kg±5%/Carton; Carton Size: 434*302*174mm(L*W*H) | |
| Dimension | 295*40*32mm（L*W*H） | |
