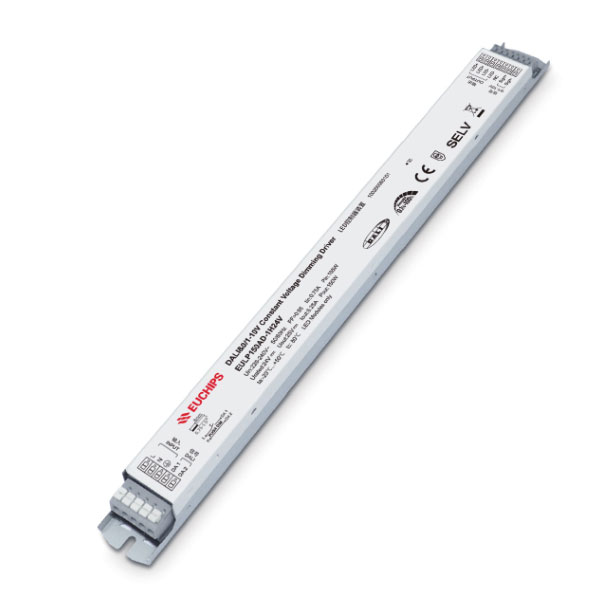

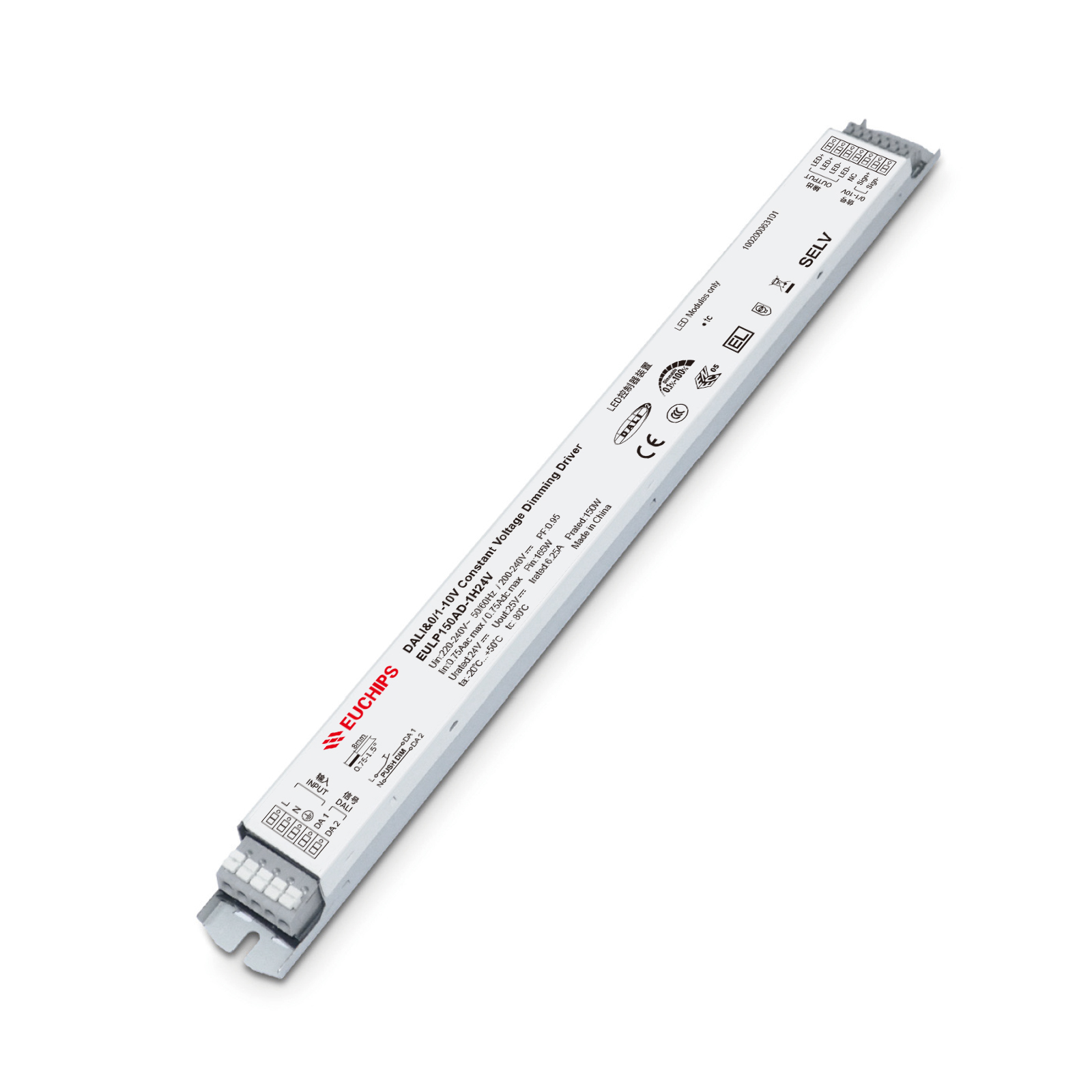

150W 24VDC DALI&0/1-10V CV Driver EULP150AD-1H24V
150W 24VDC CV DALI&0/1-10V Driver EULP150AD-1H24V
EULP150AD-1H24V is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386,and provides multiple dimming function (DALI,0/1-10V active signal ,PWM, adjustable resistance,and Touch DIM) to achieve a smooth dimming effect.
Features
· Single channel constant voltage output,6.25A Max
· Meet DALI protocol IEC 62386
· High input voltage of 220VAC ~ 240VAC
· Dimming effect smooth, no flicker
· Over load protection; short circuit protection
· IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | EULP150AD-1H24V | |
| Input | Efficiency | 92%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.98@230VAC, full load | |
| Current | 0.75Amax@230VAC | |
| THD(full load) | < 5% @ 230VAC, full load | |
| Inrush current | Cold start , 50A@230VAC 100us | |
| Output | Current/Voltage/Power | 6.25A/24VDC/150W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| No load output voltage | 24VDC±5% | |
| Standby power | <0.5W | |
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI/Touch DIM/1-10V/Adjustable resistance /PWM |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Over load | Hiccup, recovers after fault condition is removed |
| Short circuit | Close output ,after fault removed，the output current recovers automatically | |
| Safety&EMC | Surge | L-N:2KV L&N-GND:4KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 80℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch cycle | 25,000 times | |
| Pack Information | Net weight: 350g±5%/PCS; 50PCS/Carton; 18.2kg±5%/Carton; Carton Size:370*326*127mm(L*W*H) | |
| Dimension | 360*30*21mm（L*W*H） | |
