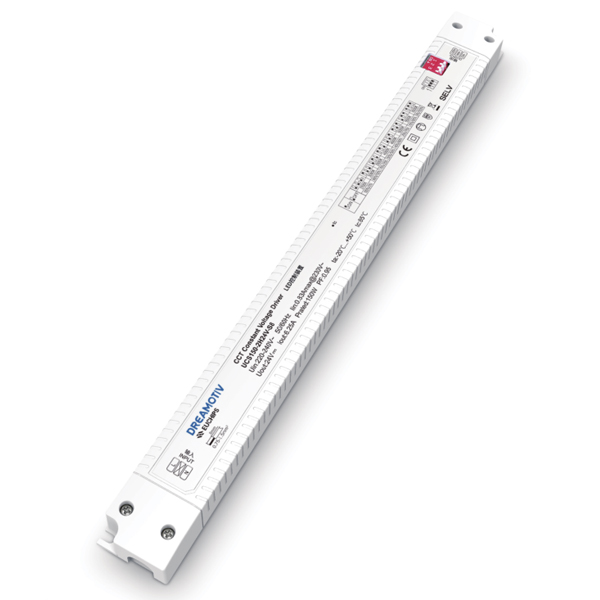

150W 24VDC 2ch Non-Dimmable CV LED Driver UCS150-2H24V-S8

Short Description:

  • Item No.: UCS150-2H24V-S8
  • Output Power: 150W

Product Detail

Product Tags

150W 24VDC 2ch Non-Dimmable CV LED Driver UCS150-2H24V-S8

UCS150-2H24V-S8 is a constant voltage mode output LED driver. The color temperature can be adjusted through the dip switch,and there are 8 color temperatures to choose from. Color temperature 2700K/3000K/3500K/4000K/4500K/5000K/5500K/6500K

Features

· A channel constant voltage output
· Applicable to indoor LED lights
· Small size, high efficiency, high reliability and long life time
· -20°C~+50°C, working temp
· Protections: over load, over voltage, short circuit protection
· Compliance with CE and ROHS
· 100% Full load aging test
· The warranty period is 5 Years

Technical Parameters

Model

UCS150-2H24V-S8




Input

Efficiency >92%@230VAC, full load
Voltage 220VAC-240VAC
Frequency 50/60Hz
Power Factor ≥0.95@230VAC, full load
Current 0.83Amax@230VAC
THD <10%@230VAC, full load
Inrush Current Cold start,48.2A@230VAC 312us
Standby power <1W


Output

Current/Voltage/Power 6.25A/24VDC/150W
Channel 2
Voltage Tolerance ±5%
No load output voltage 25.2VDC max
Turn on delay Time <0.5s, at230Vac (When the light begins to shine)
 Protection Short Circuit Close output, Automatic recovery after troubleshooting
Over Voltage Close output, Automatic recovery after troubleshooting
Over Load Close output, Automatic recovery after troubleshooting


Safety & EMC

Surge L-N:1KV
Withstand Voltage I/P-O/P: 3570VAC/1min/5mA
Safety standards EN61347-1,EN61347-2-13
EMC Eission EN55015, EN61547
EMC Immunity EN61000-3-2, 3; EN61547






Others

Working Temp. -20°C~+50°C
Storage Temp.; Humidity -40°C~85°C, 20-90%RH
tc 85°C
Material PC
IP Rating IP20
Lifetime 50,000h@tc:85°C
Warranty Condition 5 Years
Switch Cycle >25,000 times
Packing Size Net weight: 240g±5%/PCS; 50PCS/Carton; 12.5kg±5%/Carton; Carton Size: 513*380*150mm(L*W*H)
Dimension 323*30.5*22mm(L*W*H)
