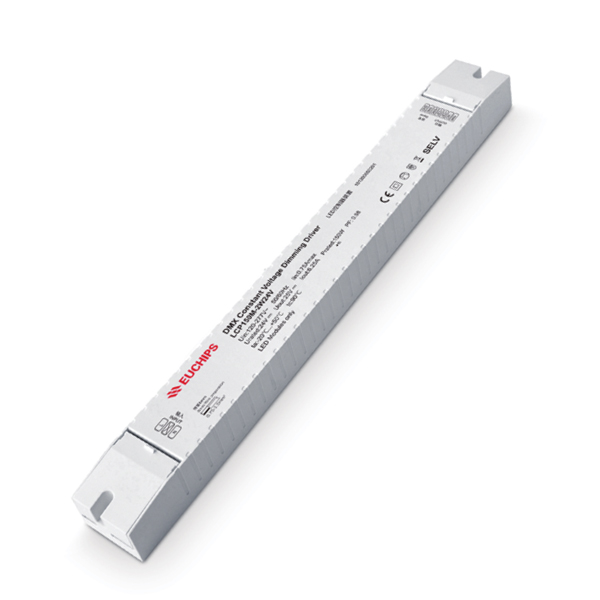

150W 24VDC 2ch DMX CV Driver LCP150M-2W24V
150W 24VDC 2ch DMX CV Driver LCP150M-2W24V
Features
· Dual channels constant voltage output,24VDC output
· Support DMX512 dimming signal
· Dimming range from 0.5-100%
· Wide range voltage Input 120-277VAC
· High efficiency: up to 90%
· High PF:>0.95
· Dimming effect smooth, no flicker
· Output short circuit protection , Over load protection,Over voltage protection
Technical Parameters
| Model | LCP150M-2W24V | |
|
Input |
Efficiency | 90%@220VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Power Factor | 0.98@230VAC, Full load | |
| Current | 0.75Amax@220VAC, Full load | |
| THD | <10%@220VAC, Full load | |
| Inrush Current | Cold start, 40A@220VAC | |
| Output | Current/Voltage/Power | 6.25A/24VDC/150W |
| No load output voltage | 24VDC±5% | |
| Channel | 2 | |
| Voltage Tolerance | ±5% | |
| Turn On Delay Time | <0.75s, (at 230V, 50 Hz, full load) | |
| Function | Dimming Mode | DMX |
| Dimming range | 0.5%-100% | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed |
| Over load | the output current decreases，Hiccup Protection | |
| Over voltage | the output current decreases，Hiccup Protection | |
| Safety&EMC | Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standards |
EN61347, GB19510 |
|
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:90℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 730g±5%/PCS; 25PCS/Carton;19kg±5%/Carton; Carton Size:377*241*196mm(L*W*H) | |
| Dimension | 360*40*32mm（L*W*H） | |
