150W 24VDC 0/1-10V CV Driver EUP150A-1W24V-1
150W 24VDC 0/1-10V CV Driver EUP150A-1W24V-1

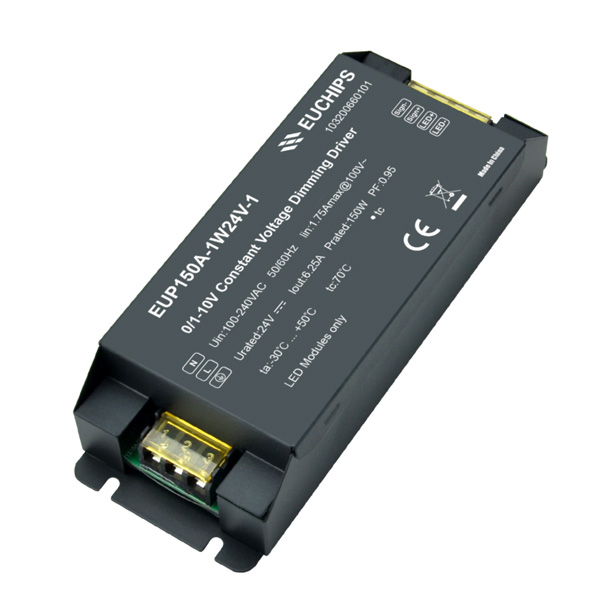

EUP150A-1W24V-1 is a constant voltage mode output LED driver. This driver can be controlled by external signal(0/1-10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect.
Features
· Single channel constant voltage output, 24V DC output per channel
· Support passive 0/1-10V analog dimming signal
· Dimming range from 0-100%, LED brightness starting from 1%
· Smooth dimming curve without jitter
· Load protection, short circuit protection, overcurrent protection
Technical Parameters
|
Model |
EUP150A-1H24V-1 | |
|
Input |
Efficiency | 93%@230VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Current | 1.75Amax@100VAC | |
| Inrush Current | Cold start,51.2A 480uS@230VAC | |
| Standby power | ≤1W | |
| No load power | ≤1W | |
| Inrush current | ≤ 1 s, at100Vac ( When the light begins to shine ) | |
|
Output |
Current / Voltage / Power | 6.25A/24VDC/150W |
| Output Voltage | ±5% | |
| Current Accuracy | ±3% | |
| Ripple current | ±5% | |
| No load output voltage | 25.2V max | |
| Function | Dimming type | 0/1-10V |
| Dimming range | 0%-100% | |
| Dimming curve | Logarithm | |
| Protection | Over load | No output, troubleshooting self-recovery |
| Short circuit | No output, troubleshooting self-recovery | |
| Over Current | No output, troubleshooting self-recovery | |
|
Safety&EMC |
Surge | L-N 1000VAC N-PE2000V L-PE2000V |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA ; I/P-GND: 1500VAC/1min/5mA ; O/P-GND : 500VAC/1min/5mA | |
| Safety standards | IEC/EN62384,IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working temp. | -30℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 70℃ | |
| Material | Metal | |
| IP rating | IP20 | |
| Lifetime | 30,000h @tc:70℃ | |
| Warranty | 3 year | |
| Switch cycle | >15,000 times | |
| Packing size | Net weight: 650g±5%/PCS; 18PCS/Carton; 12.2kg±5%/ box; Outer box size: 303*221*265mm(L * W * H) | |
| Dimension | 206*75*40mm (L * W * H) | |
