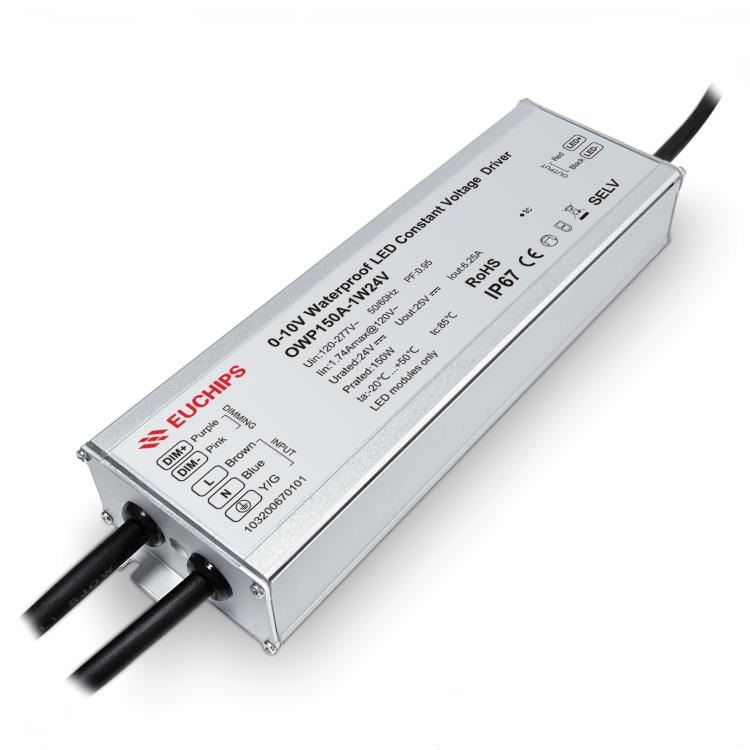

150W 24VDC 0/1-10V Waterproof CV Driver OWP150A-1W24V

Short Description:

Item No.: OWP150A-1W24V
Output Power: 150W

Product Detail

Product Tags

150W 24VDC 0/1-10V Waterproof CV Driver OWP150A-1W24V

OWP150A-1W24V is a waterproof constant voltage output LED dimming driver. Supports 0/1-10V active signals, adjustable resistors, PWM, achieving smooth dimming effect.

Features

· Single channel constant voltage output, output current is 6.25A max
· Dimming range 0.1% -100% dimming, smooth dimming without any step or flicker
· Built in PFC chip to improve energy efficiency and reduce pollution to the power grid
· Waterproof rating IP67, suitable for outdoor lighting
· Protection: Overload, overvoltage, short circuit protection
· Lifespan of 50000 hours, 5-year warrant

Technical Parameters

Model	OWP150A-1W24V
Input	Efficiency	≥88%@120VAC, ≥90%@277VAC, full load
	Frequency	50/60Hz
	Voltage	120VAC-277VAC
	Power Factor	0.95@120VAC, 0.95@277VAC, full load
	THD(full load)	10%@120VAC, 10%@277VAC, full load
	Current	1.74Amax@120VAC, 0.74A@277VAC
	Inrush Current	Cold start, 38A@120VAC 268us, 79A@277VAC 116us
	Standby Power	<0.5W
	No load power	<1W
	Turn on delay Time	0.75s (@120VAC, When the light begins to shine)
Output	Current	6.25A
	Voltage	24VDC
	Voltage Accuracy	±5%
	Power	150W
	Channel	1
	Over power limit	≥120%
	Ripple	≤720mV
	Frequency	20KHz PWM
Protection	Short Circuit	Turn off output, self recover after troubleshooting
	Over Current	Reduce current protection, restore normal operation after troubleshooting
	Over Load	Reduce current protection, restore normal operation after troubleshooting
Safety & EMC	Surge	L-N: 6KV L-N-PG: 10KV
	Withstand Voltage	I/P-O/P: 3750Vac/1min/<5mA, I/P-PG:1500Vac/1min/<5mA
	Safety standards	EN61347, GB19510
	EMI Eission	EN55015, EN61000-3-2 GB17743 GB17625.2
	Insulation Resisance	5MΩ
Function	Dimming Type	0-10V
	Dimming Range	0.1%-100%
	Dimming curve	Logarithm
	Flicker	Flicker free
Others	IP Rating	IP67
	Working Temp.	-20~+50 ℃
	Storage Temp., Humidity	-40~+85°C, 20~90% RH
	tc	85℃
	Lifetime	50,000h@tc:85℃
	Warranty Condition	5years
	Switch Cycle	>25,000 times
	Material	Metal
	Dimension	2106433mm(LWH)
	Packing(weight)	Net weight: 745g±5%/PCS; 20PCS/Carton; 15.4kg±5%/Carton; Carton Size:347257214mm(LWH)
