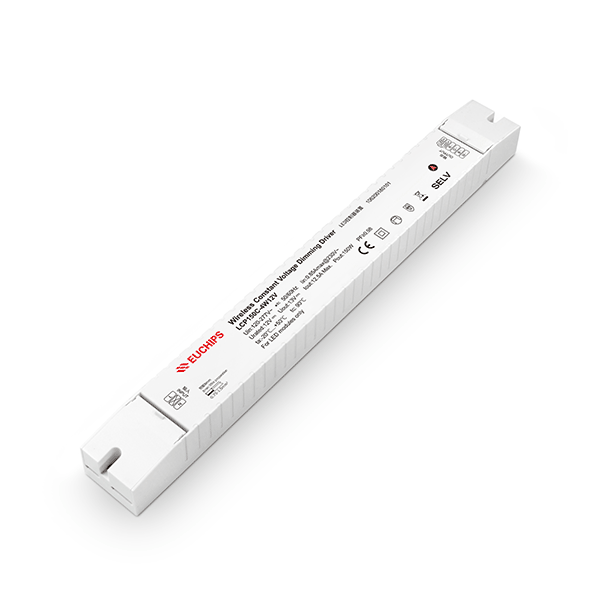

150W 12VDC 4ch Casambi CV Dimming Driver LCP150C-4W12V
150W 12VDC 4ch Casambi CV Dimming Driver LCP150C-4W12V
LCP150C-4W12V is a constant voltage mode output LED driver, Using Casambi wireless control and dimming, the curve is smooth and flicker free.
Features
· 4 channel constant voltage output, maximum output current 12.5A.
· Strong scalability, suitable for small home systems to large commercial or industrial lighting systems
· Flexible wireless control allows for remote management and real-time adjustment of lighting settings
· Good compatibility, able to integrate with various third-party devices and protocols
· User friendliness, easy control and configuration through smart device applications
· Overload, short circuit protection, V0 flame-retardant enclosure
· 50,000-hour lifespan with a 5-year warranty
· IP20 protection rating, suitable for indoor Class I, II, and III luminaires
Technical Parameters
| Model | LCP150C-4W12V | |
| Input | Efficiency | 90%@230VAC,Full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.98@230VAC,Full load | |
| THD(full load) | ≤5%@230VAC, Full load | |
| AC Current(max) | 0.85Amax@230VAC | |
| Standby power | <1W | |
| No load Power | <1W | |
| Inrush Current(max) | Cold start,40A@230VAC | |
| Output | Output Current | 12.5A(R+G+B+W≤1.25A) |
| Output Voltage | 12VDC | |
| Output Power | 150W | |
| Output Channel | 4 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | Bluetooth 4.0 or 5.0 Low Energy(BLE) |
| Dimming Range | 0.5%-100% Dimming to off | |
| Protection | Short Circuit | Hiccup, recovers after fault condition is removed |
| Overload | When the load current exceeds the rated output current, hiccup protection will be triggered; the output will automatically recover after the fault is resolved. | |
| Safety & EMC | Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
|
Safety standard |
CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 EMEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
|
EMC |
CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMI | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
| Others | RoHS | Comply with 2011/65/EU |
| tc | 90℃ | |
| material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 360*40*32mm（L*W*H） | |
| Packing(weight) | Net weight: 730g±5%/PCS; 25PCS/Carton;19kg±5%/Carton; Carton Size:377*241*196mm(L*W*H) | |
| Noise | In a quiet environment，No noise outside 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
