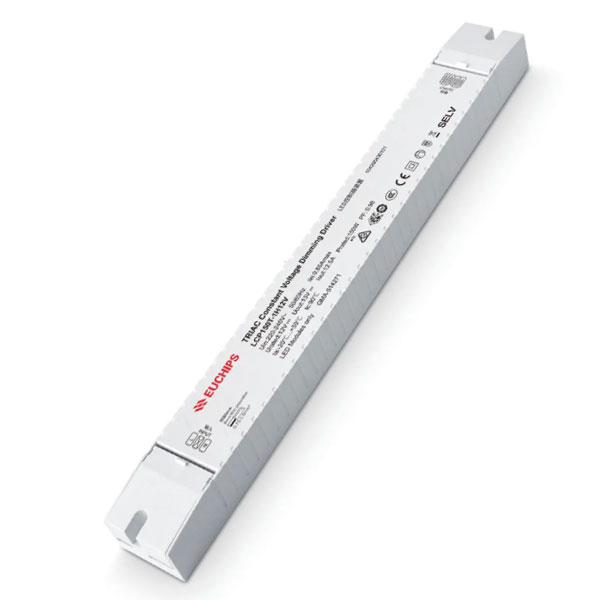

150W 12VDC Phase-cut CV Driver LCP150T-1H12V
150W 12VDC 12.5A*1ch CV Driver LCP150T-1H12V
LCP150T-1H12V is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB,Bunge, Siemens etc.) to achieve a smooth dimming effect.
Feature
1. Single-channel constant Voltage output, 12.5A Max.
2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer
3. Dimming range from 40VAC to 240V AC
4. Dimming effect smooth, no flicker
5. High efficiency: up to 88%
6. Over current protection; Short circuit protection；Over voltage
7. Suitable for indoor LED lighting application
Technical Parameters
| Model | LCP150T-1H12V | ||
| Input | Efficiency | 88%@220VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | 0.98@230VAC, Full load | ||
| Current | 0.85Amax@220VAC, Full load | ||
| THD | <10%@220VAC, Full load | ||
| Dimming Voltage Range | 40-240VAC | ||
| Inrush Current | Cold start, 49.4A@220VAC | ||
| Output | Current/Voltage/Power | 12.5A/12VDC/150W | |
| No load output voltage | 13VDC | ||
| Channel | 1 | ||
| Current Tolerance | ±3% | ||
| Turn On Delay Time | NA | ||
| Function | Dimming Mode | Triac | ELV |
| Dimming range | 1%-100% | ||
| Protection | Over load | Limit the output to 110% to 150% of the rated power | |
| Short Circuit | Hiccup, recovers after fault condition is removed | ||
| Over voltage | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | ||
| Safety&EMC | Surge | L-N:2KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| Safety standards | EN61347, GB19510 | ||
| EMI emission | EN55015, EN61000-3-2 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 90℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:90℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >25,000 times | ||
| Packing Size | Net weight: 730g±5%/PCS; 25PCS/Carton;19kg±5%/Carton; Carton Size:377*241*196mm(L*W*H) | ||
| Dimension | 360*40*32mm（L*W*H） | ||
