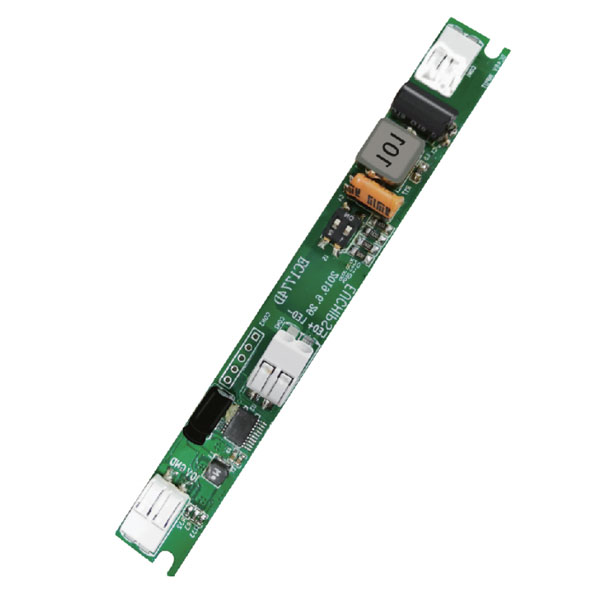

14W 48VDC 120~350mA 0/1-10V DC-DC Driver BMP14A-1SMC
14W 48VDC 120/150/180/210/240/270/300/350mA 0/1-10V DC-DC Driver
Features
1. Supporting Hot Plug-in of Front 48V Driver
2. Input Reverse Connection Protection
3. Dial Selection Current
4. Supporting short circuit and overload protection
5. When the input is connected to the signal terminal, the power supply is not damaged.
6. Support 3-in-1 analog dimming signal (active signal, adjustable resistance, PWM signal)
Technical Parameters
| Model | BMP14A-1SMC | |
| Input | Efficiency | 91%@48VDC, full load |
| Voltage | 42-52VDC | |
| Frequency | / | |
| Current | 0.63Amax@48VDC, full load | |
| Inrush Current | / | |
| Standby Power | <0.3W | |
| Output | Current / Voltage / Power | 120mA/3-40VDC/4.8W 150mA/3-40VDC/6W 180mA/3-40VDC/7.2W 210mA/3-40VDC/8.4W 240mA/3-40VDC/9.6W 270mA/3-40VDC/10.8W 300mA/3-40VDC/12W 350mA/3-40VDC/14W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5%(20-40VDC)/±8%(9-40VDC) | |
| No-load Output Voltage | / | |
| Turn On Delay Time | <0.6s, at 48VDC | |
| Function | Dimming Type | 1-10V active signal, adjustable resistance, PWM signal |
| Dimming Range | 0.5%-100% | |
| Protection | Short Circuit | Shut down the output, recovers automatically after fault removed |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Others | Working Temp. | -20℃~60℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 80℃ | |
| Material | PC | |
| Ip Rating | IP20 | |
| Lifetime | 50,000h@ta:50℃ | |
| Warranty Condition | 5 Year | |
| Switch Cycle | >100,000 times | |
| Packing(Weight) | Net weight: 15g±5%/PCS; 200PCS/Carton; 3.7kg±5%/Carton; Carton Size: 276*180*136mm(L*W*H) | |
| Dimension | 125*14*10mm(L*W*H) | |
