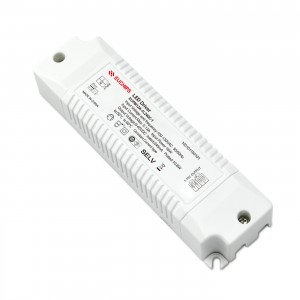

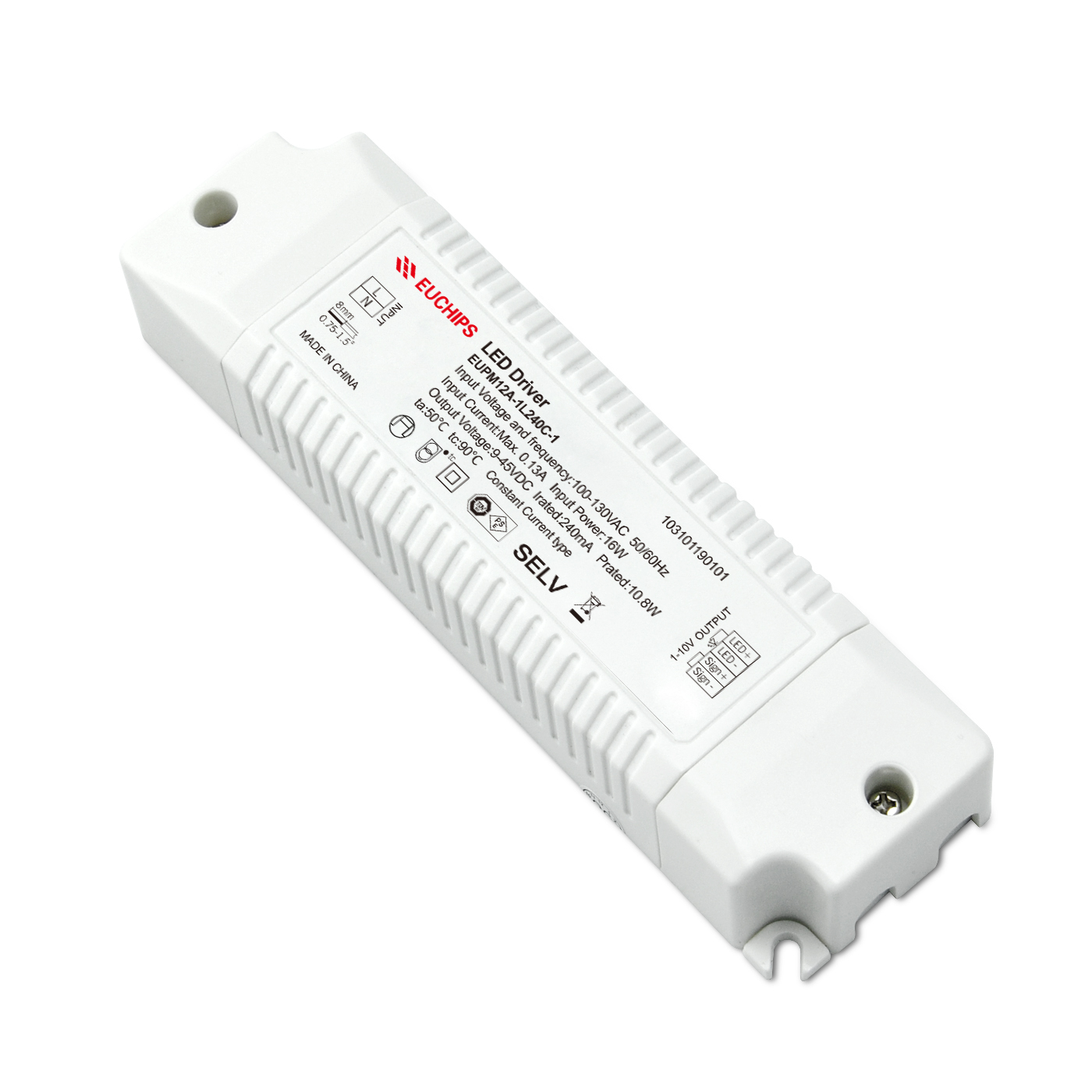

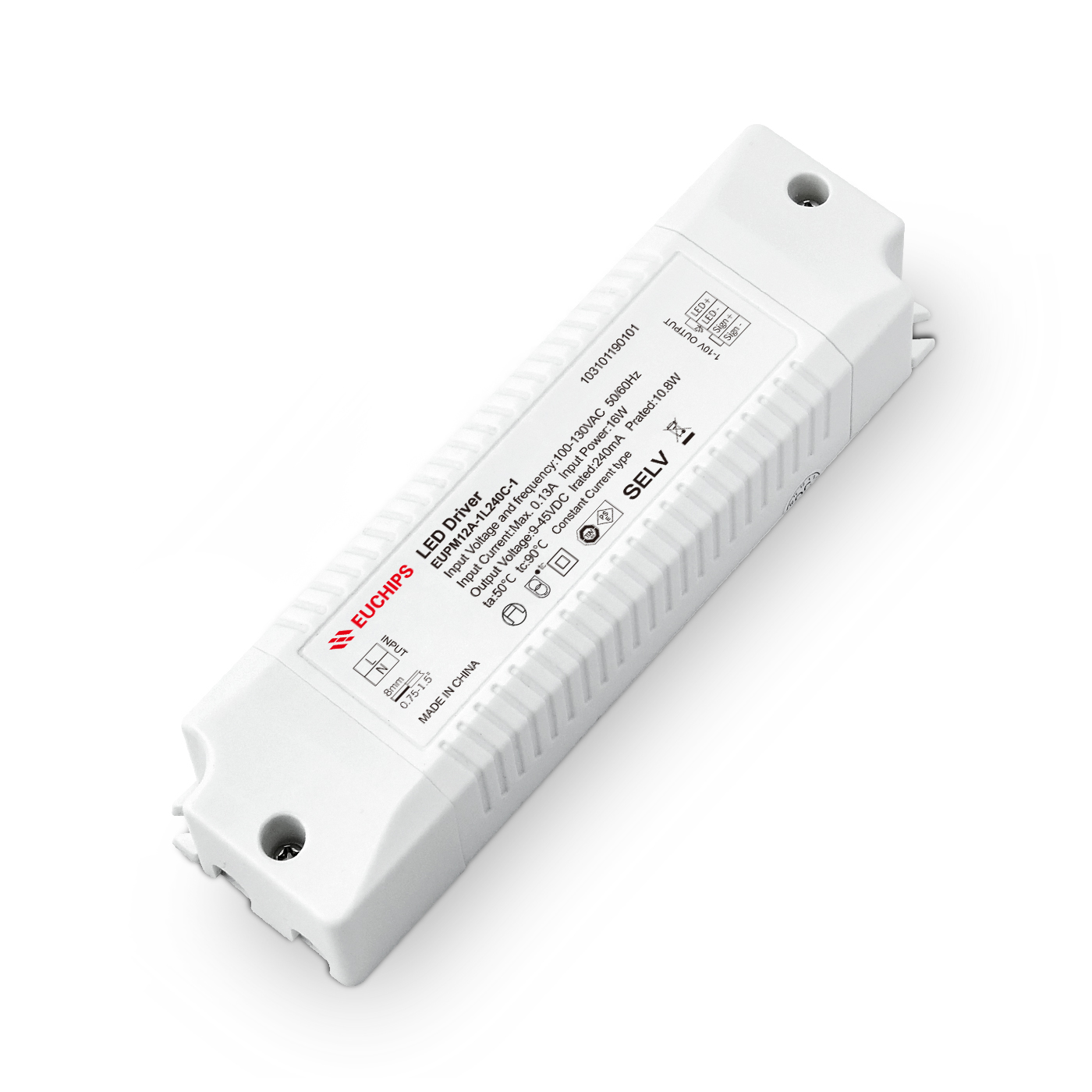

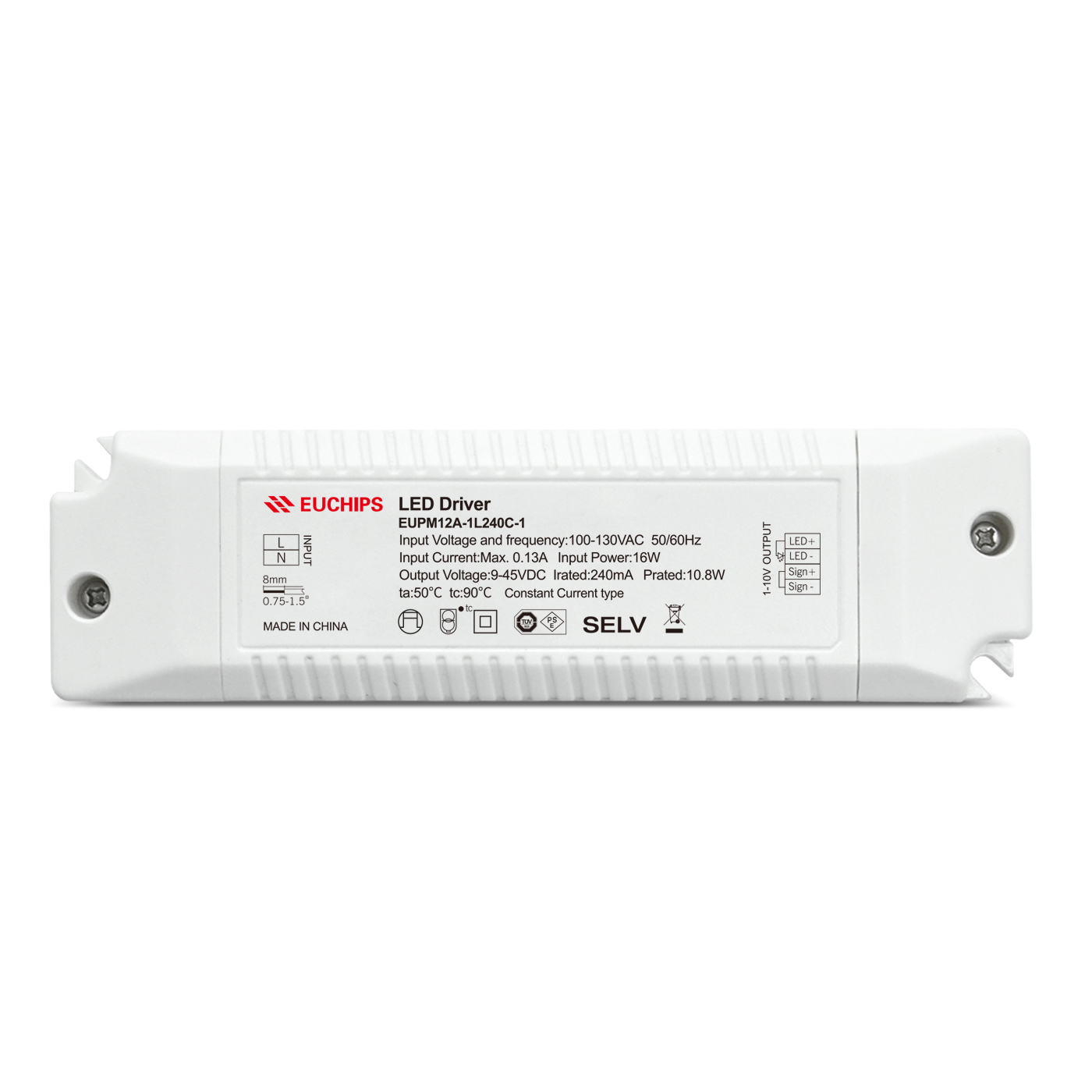

12W 240mA*1ch 0/1-10V CC Driver EUPM12A-1L240C-1
12W 240mA*1ch 0/1-10V CC Driver EUPM12A-1L240C-1
EUPM12A-1L240C-1 is a constant output mode LED driver, and the driver can be adjusted by the external 1-10VDC active signal, PWM signal to achieve the smooth dimming effect.
Features
· Support 2-in-1 dimming mode(1-10V active signal, PWM)
· Built-in active PFC function
· Class 2 power supply. Full protective plastic housing
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load, over temperature
· Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameters
| Model | EUPM12A-1L240C-1 | |
| Input | Efficiency | 80%@110VAC,full load |
| Voltage | 100VAC-130VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ＞0.95@110VAC,full load | |
| THD(full load) | ＜15%@110VAC,full load | |
| AC Current(max) | 0.13Amax@110VAC | |
| Inrush Current(max) | Cold start,15A(twidth=22us measured at 50% Ipeak) @110VAC | |
| Output | Current(mA) | 240mA |
| Voltage (VDC) | 9-45VDC | |
| Power(W) | 10.8W | |
| Output LF current ripple(< 120 Hz) | <3% | |
| Channel | 1 | |
| No load output voltage | 50V Max | |
| Function | Dimming Type | 1-10V active signal, PWM |
| Protection | Short Circuit | Close output，recovers automatically after fault removed |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Others | Dimming | 1-10V active signal, PWM |
| Dimension | 150*43*29 mm（L*W*H） | |
| G.W | 120g | |
| Working temp. | -20℃ ~ 50℃ | |
| Relative humidity | 20~90% RH | |
