12W 200~350mA*1ch 0/1-10V CC Driver EUP12A-1HMC-200
12W 200~350mA*1ch 0/1-10V CC Driver EUP12A-1HMC-200

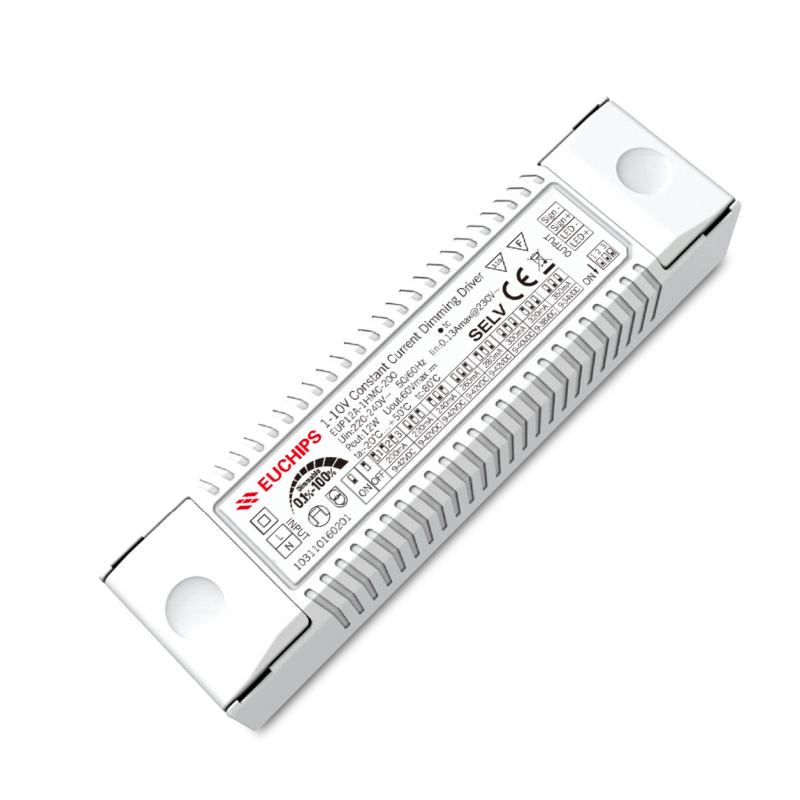

EUP12A-1HMC-200 is a can provide 200/220/240/260/280/300/320/350mA eight current LED driver.The output current can be easily set by DIP switch, external 1-10V active signal, adjustable resistance, PWM signal to achieve smooth dimming; When the external signal is not connected, it can be used as a conventional power supply.
Features
·Single channel output, output current level selectable by DIP S.W.
·Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)
·Input voltage of 220VAC ~ 240VAC
·100% output when no dimming signal input, can be used as normal power supply
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load, over temperature
·Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
|
Model |
EUP12A-1HMC-200 | |
|
Input |
Efficiency | 78%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.5@230VAC, Full load | |
| AC Current(max) | 0.13Amax@230VAC | |
| No load power | ≤1.5W | |
| Turn on delay Time | ≤ 0.75s, at230Vac (When the light begins to shine) | |
| Inrush Current(max) | Cold start,10A(twidth=103us at 50%Ipeak)@230VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 200mA/9-42VDC/8.4W 220mA/9-42VDC/9.24W 240mA/9-42VDC/10.08W 260mA/9-42VDC/10.92W
280mA/9-42VDC/11.76W 300mA/9-40VDC/11.99W 320mA/9-38VDC/11.99W 350mA/9-34VDC/11.9W |
| Output Voitage | 9-42V | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Standby Power | <1.5W | |
| No load output voltage | 60V Max | |
| Function | Dimming Type | 1-10V active signal, adjustable resistance, PWM signal |
| Dimming Range | 0.1%-100% darken until closed | |
| Dimming curve | Linearity | |
| Protection | Over load | Current down, troubleshooting output normal |
| Short circuit | Short circuit No output, troubleshooting output normal | |
| over temperature | Turn off the output and automatically resume when the temperature returns to normal | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 80℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 62g±5%/PCS; 100PCS/Carton; 6.7kg±5%/Carton; Carton Size: 515*235*140mm(L*W*H) | |
| Dimension | 110*30*22mm(L*W*H) | |
