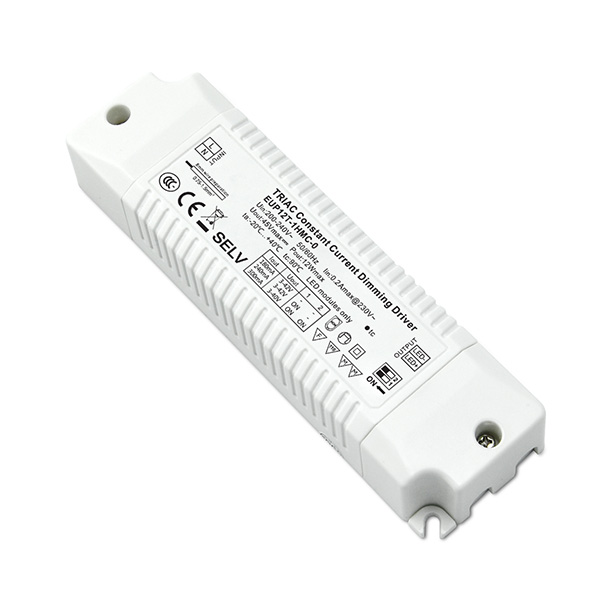

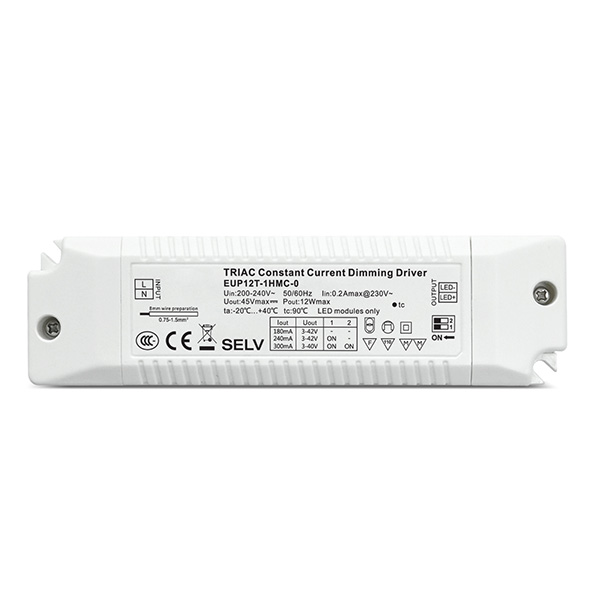

12W 180/240/300mA*1ch Phase-cut CC Driver EUP12T-1HMC-0
12W 180/240/300mA Constant Current Phase-cut Driver EUP12T-1HMC-0
Feature:
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (TRIAC) and Trailing edge (ELV) Dimmer
3. Dimming range from 40VAC to 240VAC
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over temperature
7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameter
| Model | EUP12T-1HMC-0 | |||
| Output | Current | 180mA | 240mA | 300mA |
| Voltage | 9-42VDC | 9-42VDC | 9-40VDC | |
| Rated power | 7.56W | 10.08W | 12W | |
| Current accuracy | ±5% | |||
| No load output voltage | 48VDC | |||
| Output LF current ripple(< 120 Hz) | ＜3% | |||
| Channels | 1 | |||
| Input | Voltage | 200VAC – 240VAC | ||
| Frequency | 50/60Hz | |||
| Current | 0.2Amax@230VAC | |||
| Dimming voltage range | 40VAC – 240VAC | |||
| Power factor | ＞0.5@230VAC,full load | |||
| Efficiency | 80%@230VAC,full load | |||
| Inrush current | Cold start,15A(twidth=22us measured at 50% Ipeak) @230VAC | |||
| Protection | Short circuit | Close output，recovers automatically after fault removed | ||
| Over load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |||
| Over temperature | Shut down the output, recovers automatically when temp. back to normal. | |||
| Function | Dimming | Triac/ELV | ||
| Others | Dimension | 150 *43*29 mm（L*W*H） | ||
| G.W | 130g | |||
| Working temp. | -20℃ ~ 50℃ | |||
| Relative humidity | 20~90% RH | |||
