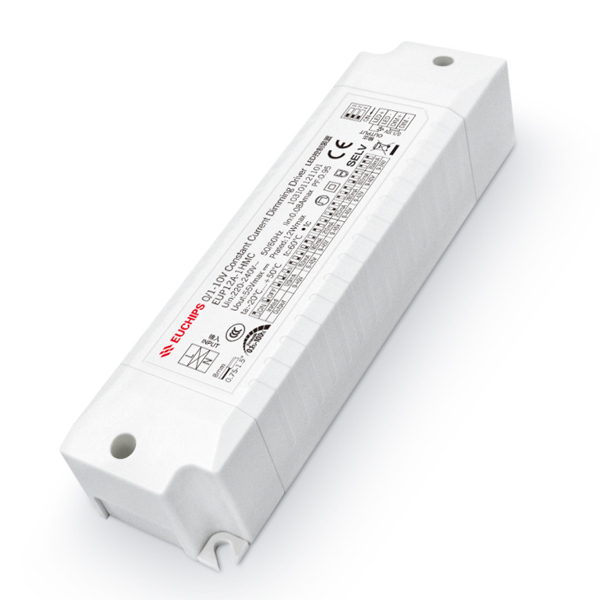

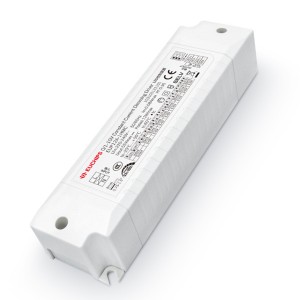

12W 120~350mA*1ch 0/1-10V CC Driver EUP12A-1HMC
12W 120~350mA*1ch 0/1-10V CC Driver EUP12A-1HMC
EUP12A-1HMC is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Features
·Single channel output, output current level selectable by DIP S.W.
·Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
·High input voltage of 220VAC ~ 240VAC
·High efficiency up to 84%
·Built-in active PFC function
·100% output when no dimming signal input, can be used as normal power supply
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load, Over Voltage
·Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
| Model | EUP12A-1HMC | |
| Input | Efficiency | 84%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.08Amax@230VAC | |
| Inrush Current(max) | Cold start,20A@230VAC 100us | |
| Output | Current(mA)/Voltage (VDC) Power(W) | *120mA/9-45VDC/5.4W 150mA/9-45VDC/6.75W180mA/9-45VDC/8.1W 210mA/9-45VDC/9.45W
250mA/9-45VDC/11.25W 280mA/9-42VDC/11.76W *300mA/9-40VDC/12W *350mA/9-34VDC/11.9W |
| Current Tolerance | ±5% *120mA Scope ±7% *300mA Scope -2-+8% *350mA Scope -8-+2% | |
| Channel | 1 | |
| Standby Power | <0.5W | |
| No load output voltage | 55VDC Max | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming Range | 0.4%-100% Dimming to off | |
| Protection | Short Circuit | after fault removed Close output ,the output current recovers automatically |
| Over Load | Hiccup , recovers after fault condition is removed | |
| Over Voltage | Hiccup , recovers after fault condition is removed | |
| Safety& EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 60 @230Vac | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:60℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: – g±5%/PCS; – PCS/Carton; – kg±5%/Carton; Carton Size: –*–*–mm(L*W*H) | |
| Dimension | 135*36*25mm（L*W*H） | |
