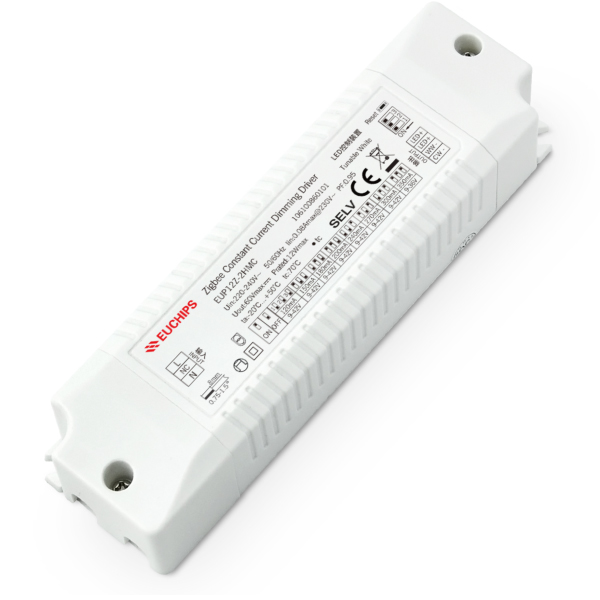

12W 120~350mA*2ch Zigbee CC Driver EUP12Z-2HMC
12W 120~350mA*2ch Zigbee CC Driver EUP12Z-2HMC
UP12Z-2HMC is an LED driver that can provide 120 / 150 / 180, 200 / 240, 270 / 300 / 350 ma current.
The output current can be set through the DP dip switch profile to achieve
wireless dimming and color matching through ZigBee.
Features
1. output current level selectable by DIP S.W.
2. Wide input voltage of 220VAC ~ 240VAC
3. High efficiency up to 81%
4. Built-in active PFC function
5. Protections: Over voltage , Over load , Short circuit
6. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
Model | EUP12Z-2HMC | |
Input | Voltage | 220VAC-240VAC |
Frequency Range | 50/60Hz | |
Efficiency | ≥81%@230VAC,full load | |
Power Factor | ≥0.95@230VAC,full load | |
AC Current(max) | 0.08Amax@230VAC | |
THD | <10%@230VAC, | |
Inrush Current(max) | Cold start, 40A (twidth = 100US measured at 50% ipeak) @ 230VAC | |
standby power | ≤1W | |
No load power | ≤1W | |
start delay | ≤ 0.75 s, at230Vac (When the light begins to shine); | |
Output | Current / voltage / power | 120mA/9-42V/5.4W 150mA/9-42V/6.3W
180mA/9-42V/7.56W 200mA/9-42V/8.4W 240mA/9-42V/10.8W 300mA/9-42V/12.6W 270mA/9-42V/11.34W 350mA/9-36V/12.6W |
Voltage | 45V | |
electric current | MAX0.35A | |
Output voltage range | 9-42V | |
Dial switch | 120-350MA | |
Channel | 2 | |
Current accuracy | ±5%(120/150/180/200±7% ) | |
power | 12W | |
Ripple current | <3% | |
No load voltage | 60V | |
Function | Dimming mode | Zigbee |
Dimming range | 1%-100% | |
Dimming curve | linear | |
Protection | Over voltage | Current drops, troubleshooting output is normal |
Over load | Reduce current hiccup protection, troubleshooting output normal | |
short circuit | Short circuit no output, troubleshooting output normal | |
Safety&EMC | lightning surge | L-N 2000VAC |
Withstand voltage | Input to output 3750VAC / 1min / < 5mA | |
safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
electromagnetic compatibility | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
Insulation impedance | 5MΩ | |
Others | Waterproof grade | IP20 |
working temperature | ta:-20℃~+50℃ | |
tc | 70℃@220Vac | |
Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
life | 50,000h@tc:70℃ | |
Warranty | 5year | |
texture of material | Plastic shell | |
Switching cycle | >25,000 times | |
Package size (weight) | Net weight: 121g ± 5% / PCS; 50PCS/Carton; 6.5kg ± 5% / box; Outer box size: 319 * 254 * 136mm | |
size | 150*43*29mm (L*W*H) |
