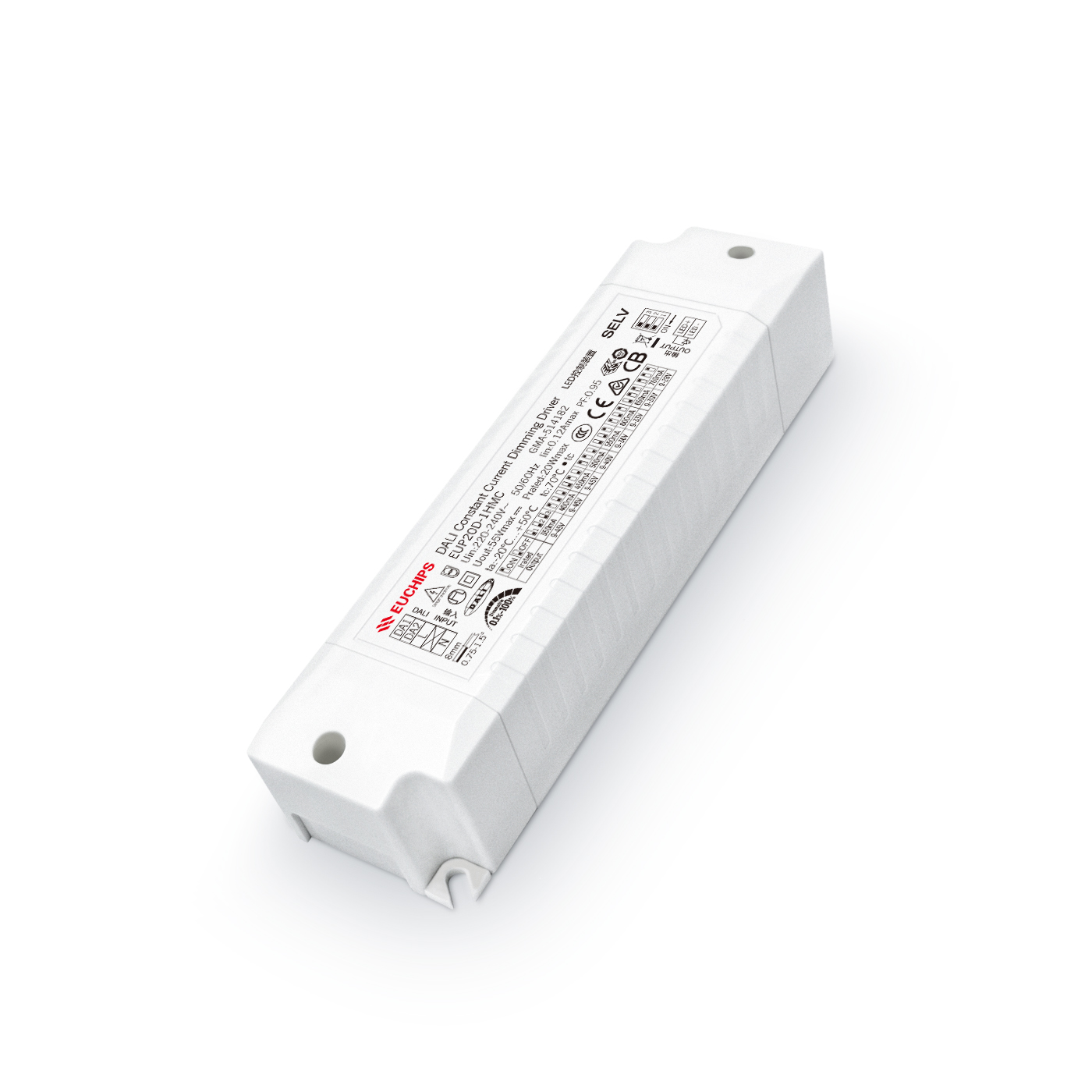

12W 120~350mA*2ch DALI CC Driver DT8 EUP12D-2HMC
12W 120~350mA*2ch DALI CC Driver EUP12D-2HMC
EUP12D-2HMC is a 12W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386-209. Can be connected to DALI main controller or Touch DIM to a chieve a smooth dimming effect.
Features
·Two channel output, output current level selectable by DIP S.W.
·Meet DALI Protocol IEC 62386-209
·Support Touch-DIM function
·High efficiency up to 85 %
·Built-in active PFC function
·Dimming effect smooth, flicker free
·Protections: Short circuit, over load, over temperature
·Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP12D-2HMC | |
|
Input |
Efficiency | >85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.08Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start,15A(twidth=14us measured at 50% Ipeak)@230VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | *120mA/9-42VDC/5.04W *150mA/9-42VDC/6.3W*180mA/9-42VDC/7.56W *200mA/9-42VDC/8.4W
240mA/9-42VDC/10.1W 270mA/9-42VDC/11.34W 300mA/9-40VDC/12W 350mA/9-34VDC/11.9W |
| Channel | 2 | |
| Current Tolerance | ±5% | |
| No load output voltage | 59V Max | |
| Turn on delay Time | <1s, at230Vac | |
| Function | Dimming Type | DALI /Touch DIM |
| Dimming Range | 0.5%-100% Dimming to off | |
| color temperature | 2700K-6500K | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| over Voltage | Close output, recovers automatically after fault removed | |
|
Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-209: 2009, DALI 2.0 | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14, | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 70℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 95g±5%/PCS; 80PCS/Carton; 8.8kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | |
| Dimension | 135*36*25mm（L*W*H） | |
*Current Tolerance: 120mA ±8%，150mA ±8%，180mA ±7%，200mA ±7%
