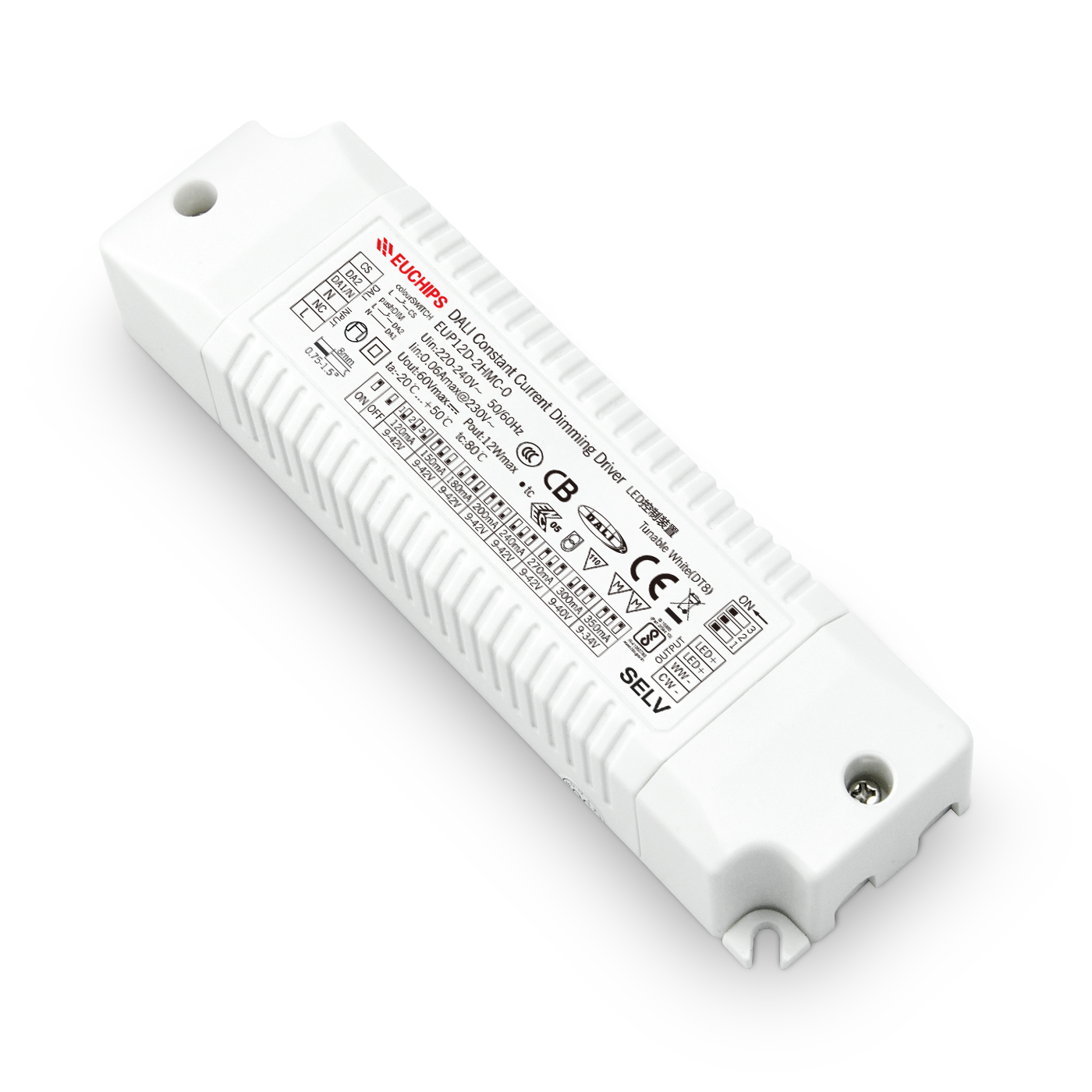

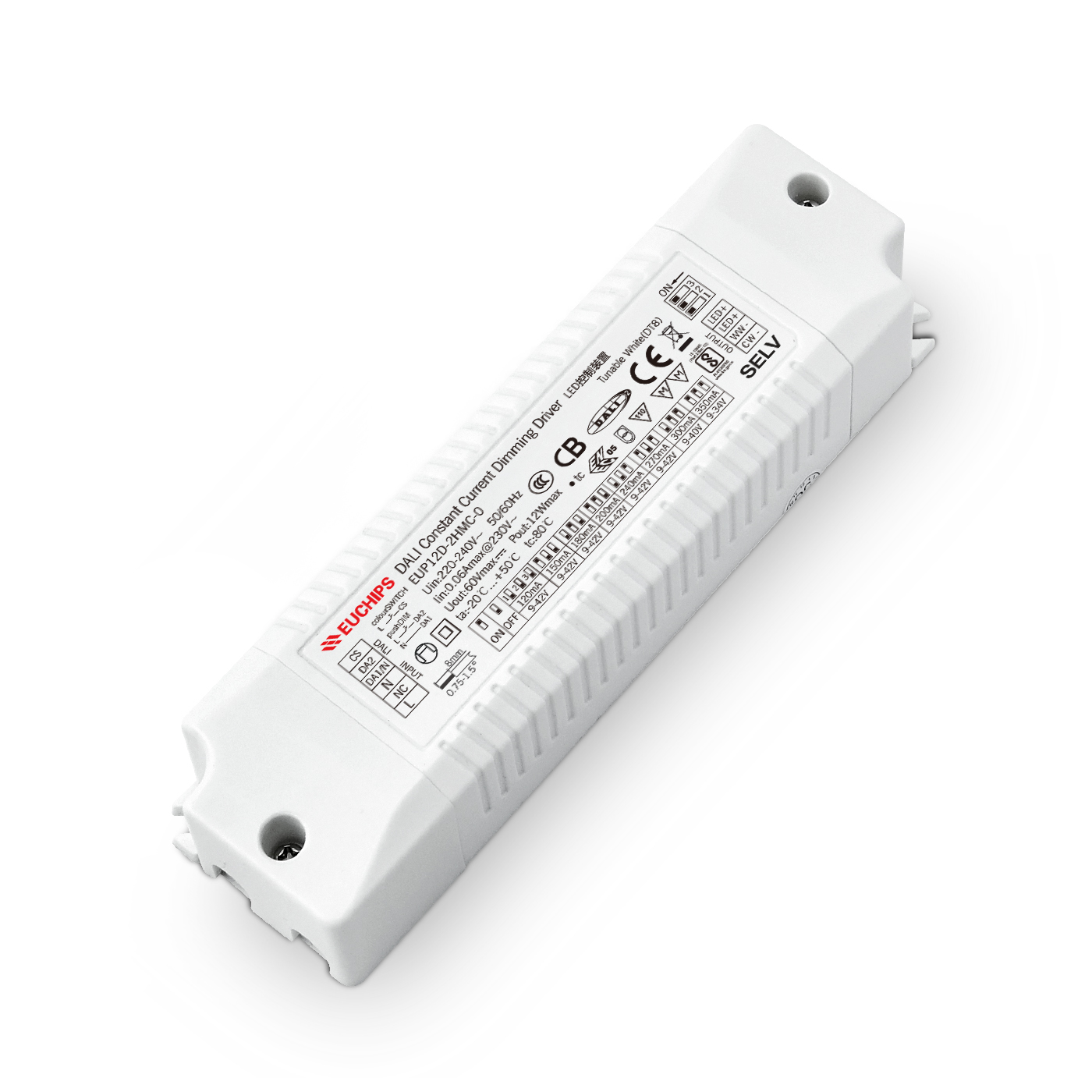

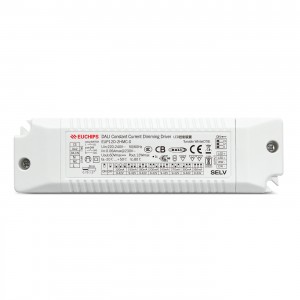

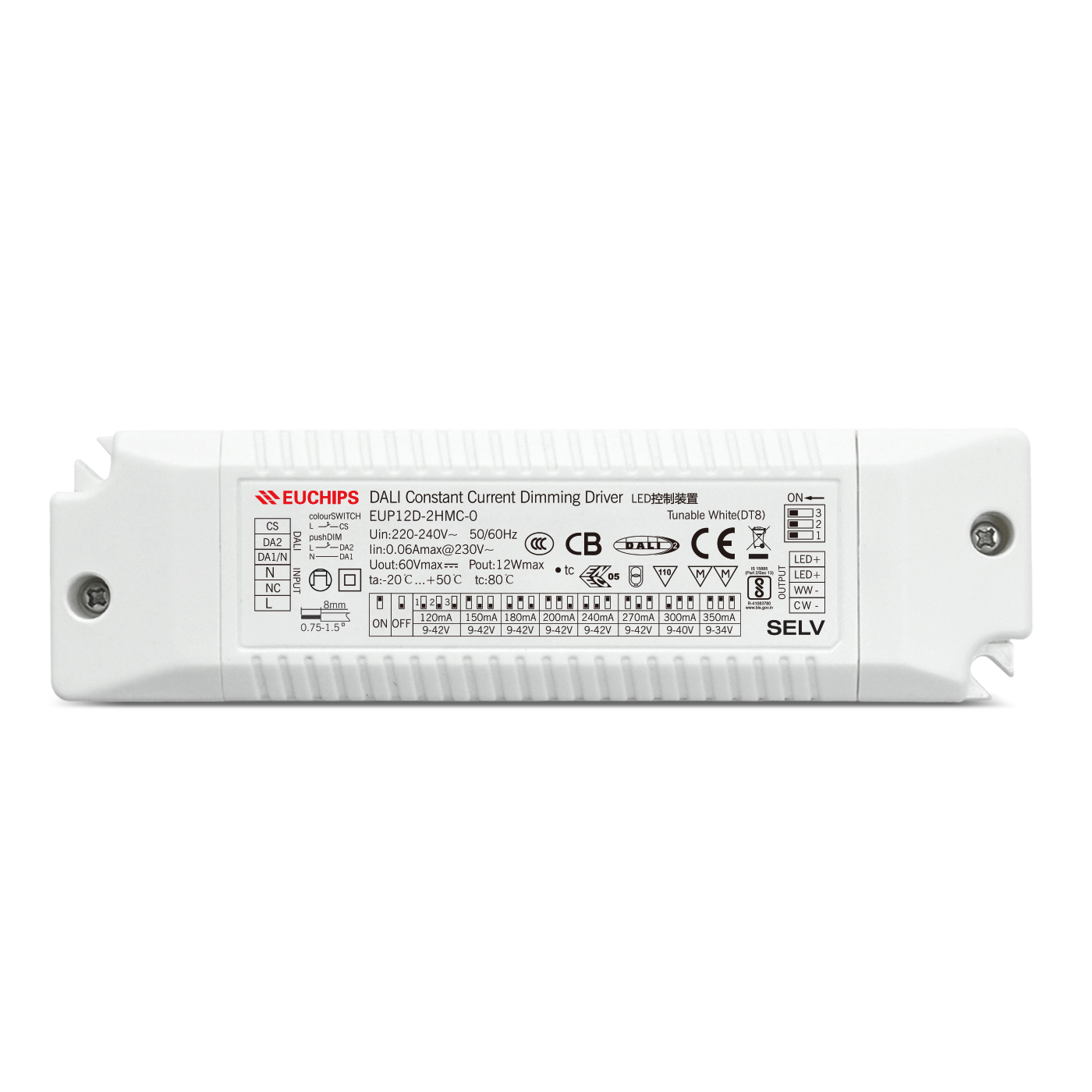

12W 120~350mA*2ch DALI CC Driver DT8 EUP12D-2HMC-0
12W 120~350mA*2ch CC DALI-2 Driver DT8 EUP12D-2HMC-0
EUP12D-2HMC-0 is a 12W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386-209. EUP12D-2HMC-0 can be connected to DALI main controller or Touch DIM to a chieve a smooth dimming effect.
Features
1. Two channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-209
3. Support Touch-DIM function
4. High efficiency up to 83 %
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage
8. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP12D-2HMC-0 | ||
| Input | Efficiency | >83%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load | <10%@230VAC, Full load | ||
| AC Current(max) | 0.06Amax@230VAC | ||
| Standby power | <0.5W | ||
| Inrush Current(max) | Cold start,15A(twidth=14us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
*120mA/9-42VDC/5.04W *150mA/9-42VDC/6.3W *180mA/9-42VDC/7.56W *200mA/9-42VDC/8.4W 240mA/9-42VDC/10.1W 270mA/9-42VDC/11.34W 300mA/9-40VDC/12W 350mA/9-34VDC/11.9W |
|
| Ripple Current | <3% | ||
| Channel | 2 | ||
| Current Tolerance | ±5% | ||
| No load output voltage | 60V max | ||
| Turn on delay Time | <1s, at230Vac | ||
| Function | Dimming Mode | DALI/Touch DIM | |
| Dimming Range | 0.2%-100% Dimming to off | ||
| color temperature | 2700k-6500k | ||
| Protection | Short circuit | Close output，recovers automatically after fault removed | |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | ||
| Over Voltage | Close output, recovers automatically after fault removed | ||
| Safety&EMC | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| DALI Standard | EC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-209: 2009, DALI 2.0 | ||
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14, | ||
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 80℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:70℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >25,000 times | ||
| Packing Size | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||
