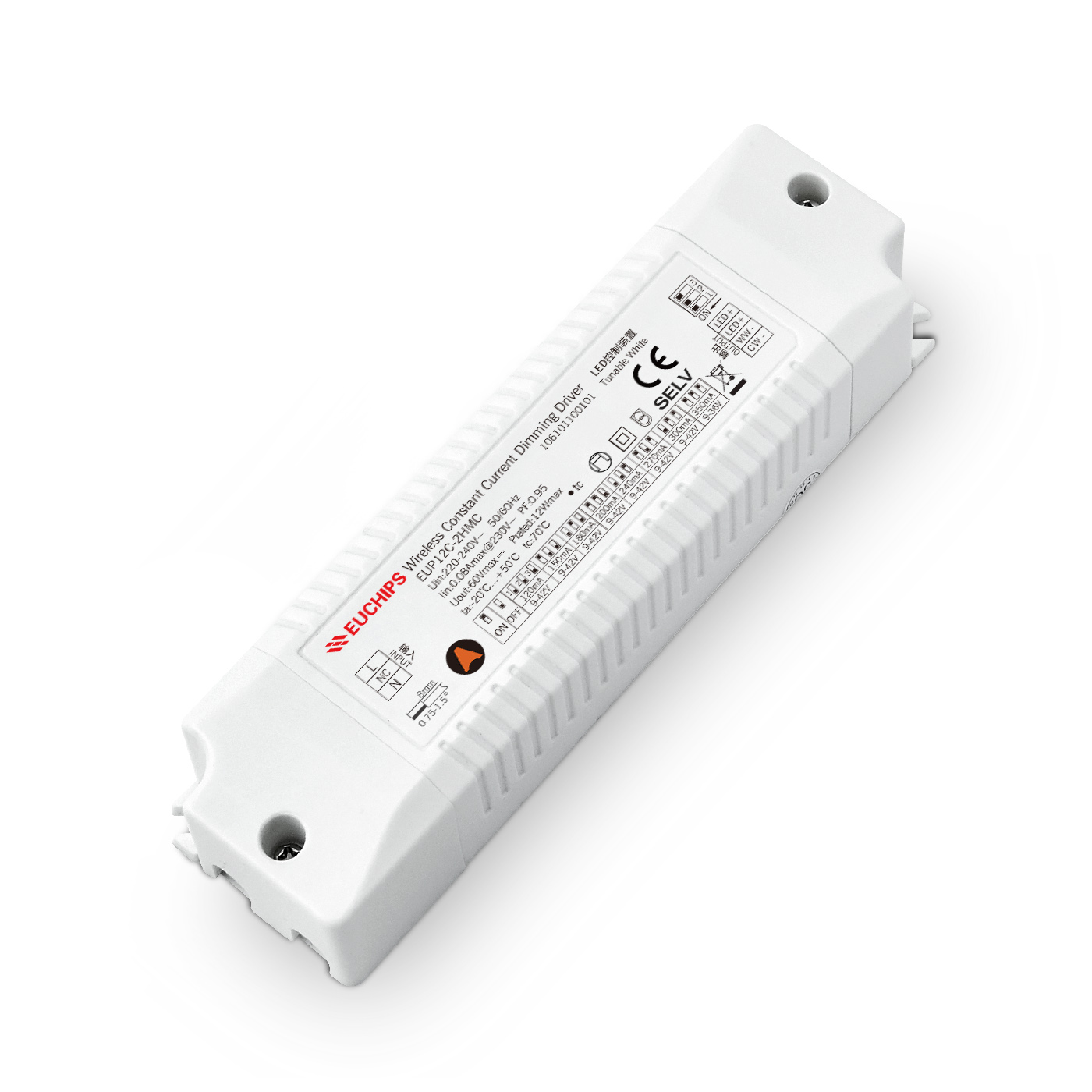

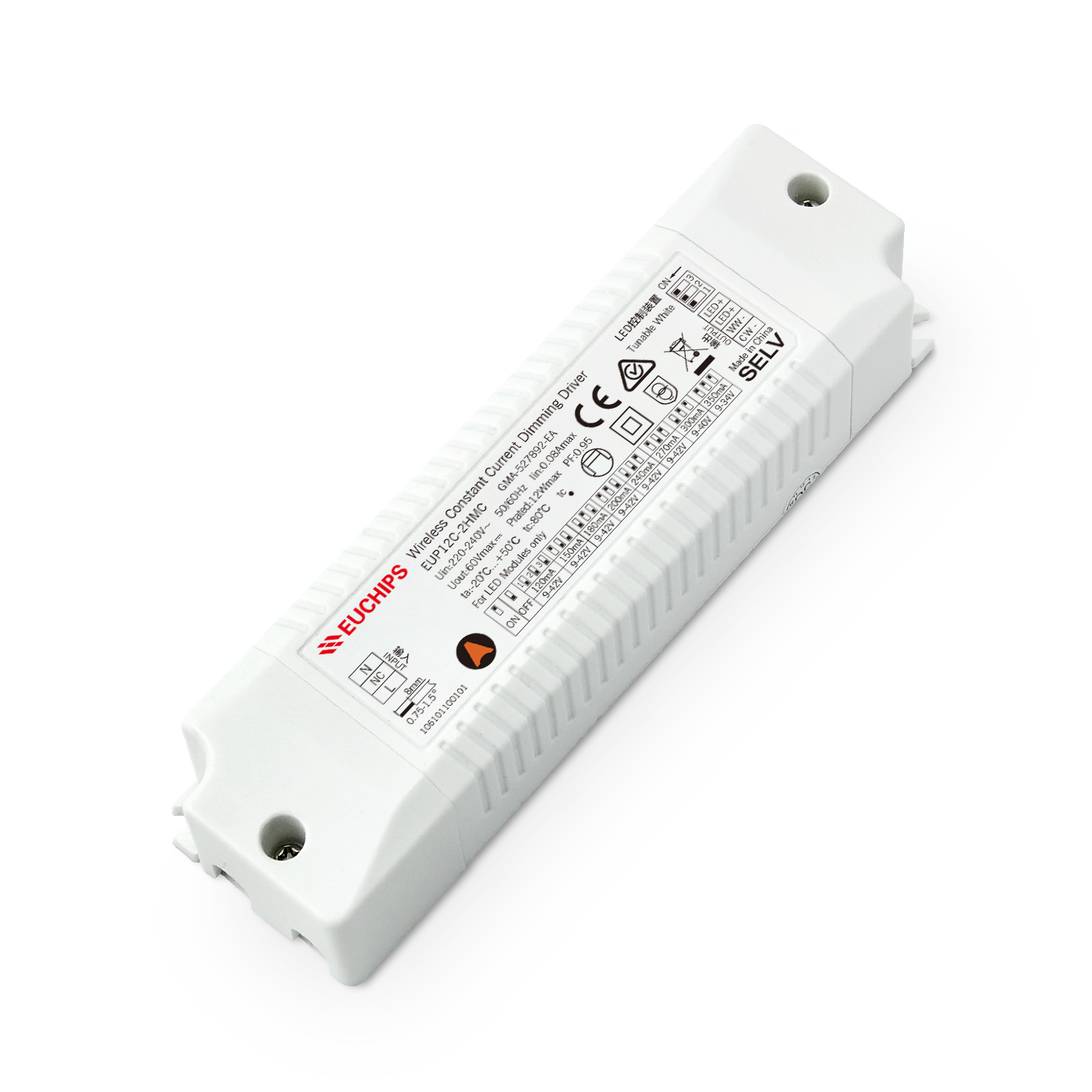

12W 120~350mA*2ch Casambi CC Dimming Driver EUP12C-2HMC

Short Description:

Item No.: EUP12C-2HMC
Output Power: 12W

Product Detail

Product Tags

12W 120~350mA*2ch Casambi CC Dimming Driver EUP12C-2HMC

EUP12C-2HMC is a 12W AC/DC constant current mode output LED driver, multiple current selectable by DIP switch, Using Casambi wireless control and dimming, the curve is smooth and flicker free.

Features

· Strong scalability, suitable for small home systems to large commercial or industrial lighting systems
· Flexible wireless control allows for remote management and real-time adjustment of lighting settings
· Good compatibility, able to integrate with various third-party devices and protocols
· User friendliness, easy control and configuration through smart device applications
· Overload, overvoltage, short circuit protection
· 50,000-hour lifespan with a 5-year warrant
· IP20 protection rating, suitable for indoor Class I, II, and III luminaires

Technical Parameters

Model	EUP12C-2HMC
Input	Efficiency	>83%@230VAC,Full load
	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Power Factor	≥0.95@230VAC,Full load
	THD(full load)	<10%@230VAC, Full load
	AC Current(max)	0.06Amax@230VAC
	Standby power	<1W
	Inrush Current(max)	Cold start,15A(twidth=14us measured at 50% Ipeak)@230VAC
	Current(mA)/Voltage (VDC)	120mA/9-42VDC/5.04W 150mA/9-42VDC/6.3W 180mA/9-42VDC/7.56W 200mA/9-42VDC/8.4W
	Power(W)	240mA/9-42VDC/10.1W 270mA/9-42VDC/11.34W 300mA/9-40VDC/12W 350mA/9-34VDC/11.9W
	Ripple Current	<3%
Output	Channel	2
	Current Tolerance	±5%
	No load output voltage	60V Max
	Turn on delay Time	<1s, at230Vac
Function	Dimming Type	Bluetooth 4.0 or 5.0 Low Energy(BLE)
	Dimming Range	0.5%-100% Dimming to off
	color temperature	2700K-6500K
Protection	Short Circuit	Close output, recovers automatically after fault removed
	Overload	When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
	Overvoltage	Close output, recovers automatically after fault removed
Safety& EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
	Safety Standards	IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14,
	EMC Eission	EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1
Others	Working Temp.	-20℃~50℃
	Storage Temp., Humidity	-40℃~85℃, 20-90%RH
	tc	80℃
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:70℃
	Warranty Condition	5 Years
	Switch Cycle	>25,000 times
	Packing(weight)	Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319254136mm(LWH)
	Dimension	1504329mm（LWH）
