12W 120~350mA*1ch Zigbee CC Driver EUP12Z-1HMC
12W 120~350mA*1ch Zigbee CC Driver EUP12Z-1HMC

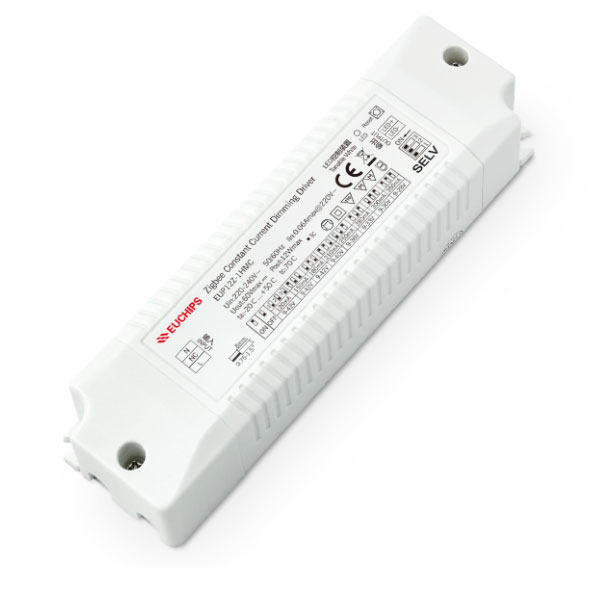

EUP12Z-1HMC is a 12W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch. Through Zigbee to achieve wireless dimming effect.
Features
1. output current level selectable by DIP S.W.
2. Wide input voltage of 220VAC ~ 240VAC
3. High efficiency up to 85%
4. Built-in active PFC function
5. Dimming effect smooth, no flicker
6. Protections: over load, Short circuit
7. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP12Z-1HMC | |
| Input | Efficiency | 85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.06Amax@230VAC | |
| Inrush Current(max) | Cold start, 40A (twidth = 100US measured at 50% ipeak) @ 230VAC | |
| standby power | ≤1W | |
| No load power | ≤1W | |
| start delay | ≤ 0.75 s, at230Vac (When the light begins to shine) | |
| Output | Current / Voltage / Power | 120mA/9-45V/5.4W 150mA/9-45V/6.75W180mA/9-45V/8.1W 200mA/9-45V/9W240mA/9-45V/10.8W 270mA/9-45V/12.15W300mA/9-42V/12.6W 350mA/9-36V/12.6W |
| Voltage | 45V | |
| electric current | MAX0.35 | |
| Output voltage range | 9-45V | |
| Dial switch | 120-350MA | |
| Channel | 1 | |
| Current accuracy | 7% | |
| power | 12W | |
| Ripple current | <3% | |
| No load voltage | 55V | |
| Fuction | Dimming Type | Zigbee |
| Dimming Range | 1%-100% | |
| Dimming curve | linear | |
| Protection | Overvoltage | The current drops and the output is normal after troubleshooting |
| Over Load | Reduce the current burping protection, remove the fault, and the output is normal | |
| short circuit | There is no output due to short circuit. After troubleshooting, the output is normal | |
| Safety & EMC | Surge | L-N 2000VAC |
| Withstand voltage | Input to output 3750VAC / 1min / < 5mA | |
| safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| electromagnetic compatibility | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation impedance | 5MΩ | |
| Others | Waterproof grade | IP20 |
| working temperature | ta:-20℃~50℃ | |
| tc | 70℃@220Vac | |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| life | 50,000h@tc:70℃ | |
| Warranty | 5 Years | |
| texture of material | Plastic shell | |
| Switch Cycle | >25,000 tims | |
| Packing(weight) | Net weight: 121g ± 5% / PCS; 50PCS/Carton; 6.5kg ± 5% / box; Outer box size: 319 * 254 * 136mm | |
| Dimension | 151*42*28mm（L*W*H） | |
