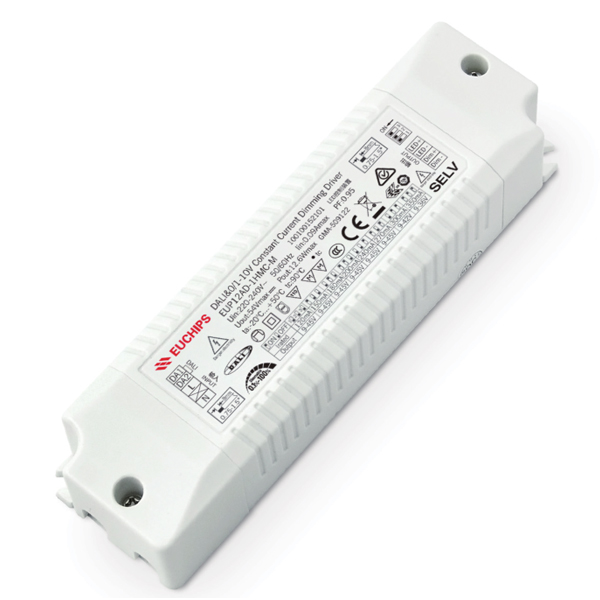

12W 120~350mA*1ch DALI&0/1-10V CC Driver EUP12AD-1HMC-M
12W 120~350mA*1ch DALI&0/1-10V CC Driver EUP12AD-1HMC-M
EUP12AD-1HMC-M is a constant current output mode LED driver. Support DALI dimming function, Touch DIM (Push DIM) function, 0/1-10V Dimming function. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
·Single channel output, output current level selectable by DIP S.W.
·Support DALI-2 dimming function, Touch DIM (Push DIM) function, 0/1-10V Dimming function
·Dimming range: 0.1-100% Dimming effect smooth, no flicker
·Protections: Short circuit, Over load, Over Voltage
·Suitable for indoor LED lighting application
Technical Parameters
| Model | EUP12AD-1HMC-M | |
|
Input |
Efficiency | 85%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95@230VAC, Full load | |
| THD(full load) | <15%@230VAC | |
| AC Current(max) | 0.09Amax@230VAC | |
| Standby power | 0.5W | |
| Inrush Current(max) | Cold start, 60A@230VAC | |
| Current/Voltage/Power | 120mA/9-45V/5.4W* 180mA/9-45V/8.1W 240mA/9-45V/10.8W 300mA/9-42V/12.6W | |
| 150mA/9-45V/6.75W* 200mA/9-45V/9W 270mA/9-45V/12.15W 350mA/9-36V/12.6W | ||
| Ripple Current | <3% | |
| Output | Channel | 1 |
| Current Tolerance | ±5% *(120mA ±7% 150mA ±7% ) | |
| No-Load Voltage | 54VDC | |
| Voltage Range | 9-45VDC | |
| Turn on delay Time | <1s, at 230Vac | |
| Function | Dimming Type | 0/1-10V/DALI-2/Touch DIM (Push DIM)/PWM/RX |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed. |
| Over Load | Hiccup, recovers after fault condition is removed. | |
| Over Voltage | Hiccup, recovers after fault condition is removed. | |
|
Safety & EMC |
Surge | L-N:0.5KV; |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/10mA; I/P-E: 1875VAC/1min/10mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | |
| Safety Standards | EN61347-1, EN61347-2-13 | |
| EMC Eission | EN55015, EN61000-3-2, EN61000-3-3, EN6154 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | |
|
Others |
Working Temp., Humidity | -20°C~+50°C, 20-50%RH |
| Storage Temp., Humidity | -40°C~85°C, 5-70%RH | |
| Tc | 90°C | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80°C | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 tims | |
| Packing(weight) | Net weight: –g±5%/PCS; –PCS/Carton; –kg±5%/Carton; Carton Size: –mm(L*W*H) | |
| Dimension | 150*43*29mm(L*W*H) |
