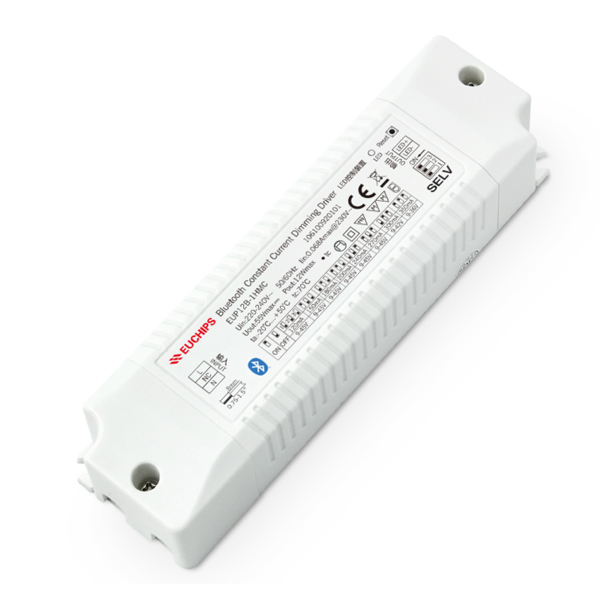

12W 120~350mA*1ch Bluetooth CC Driver EUP12B-1HMC
12W 120~350mA*1ch Bluetooth CC Driver EUP12B-1HMC
EUP12B-1HMC is a 12W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch. Through Bluetooth to achieve wireless dimming effect.
Features
· output current level selectable by DIP S.W.
· Wide input voltage of 220VAC ~ 240VAC
· High efficiency up to 83%
· Built-in active PFC function
· Protections: over load, short circuit
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
· Support Bluetooth line control and gateway control for IOS and Android smart devices
· Bluetooth 5.1SIGMesh connection is more stable
· No stroboscopic
· Passed BQB certification test and met SIG Mesh standards
Technical Paramters
| Model | EUP12B-1HMC | ||
|
Input |
Voltage | 220VAC-240VAC | |
| Frequency Range | 50/60Hzfull load | ||
| Efficiency | ≥83%@230VAC,full load | ||
| Power Factor | ≥0.95@230VAC,full load | ||
| AC Current(max) | 0.068Amax@230VAC | ||
| THD | <10%@230VAC,full load | ||
| Inrush Current(max) | Cold start, 40A (twidth = 100US measured at 50% ipeak) @ 230VAC | ||
| standby power | ≤1W | ||
| No load power | ≤1W | ||
| start delay | ≤ 0.75 s, at230Vac (When the light begins to shine) | ||
| Output | Current / voltage / power | 120mA/9-45V/5.4W 150mA/9-45V/6.75W180mA/9-45V/8.1W 200mA/9-45V/9W
240mA/9-45V/10.8W 300mA/9-42V/12.6W 270mA/9-45V/12.15W 350mA/9-36V/12.6W |
|
| Voltage | 45V | ||
| electric current | MAX0.35A | ||
| Output voltage range | 9-45V | ||
| Dial switch | 120-350MA | ||
| Channel | 1 | ||
| Current accuracy | ±9% | ||
| power | 12W | ||
| Ripple current | <3% | ||
| No load voltage | 55V | ||
| Function | Dimming mode | Bluetooth | |
| Dimming range | 0%-100% | ||
| Protection | Over voltage | Current drops, troubleshooting output is normal | |
| Over load | Reduce current hiccup protection, troubleshooting output normal | ||
| Short circuit | Short circuit no output, troubleshooting output normal | ||
| SEMafCety& | lightning surge | L-N 2000VAC | |
| Withstand voltage | Input to output 3750VAC / 1min / < 5mA | ||
| safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | ||
| electromagnetic compatibility | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | ||
| Insulation impedance | 5MΩ | ||
| Others | Waterproof grade | IP20 | |
| working temperature | ta:-20℃~50℃ | ||
| tc | 70℃@220Vac | ||
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | ||
| life | 50,000h@tc:70℃ | ||
| Warranty | 5year | ||
| texture of material | Plastic shell | ||
| Switching cycle | >25,000 times | ||
| Package size (weight) | Net weight: 121g ± 5% / PCS; 50PCS/Carton; 6.5kg ± 5% / box; Outer box size: 319 * 254 * 136mm | ||
| size | 150*43*29mm (L*W*H) | ||
