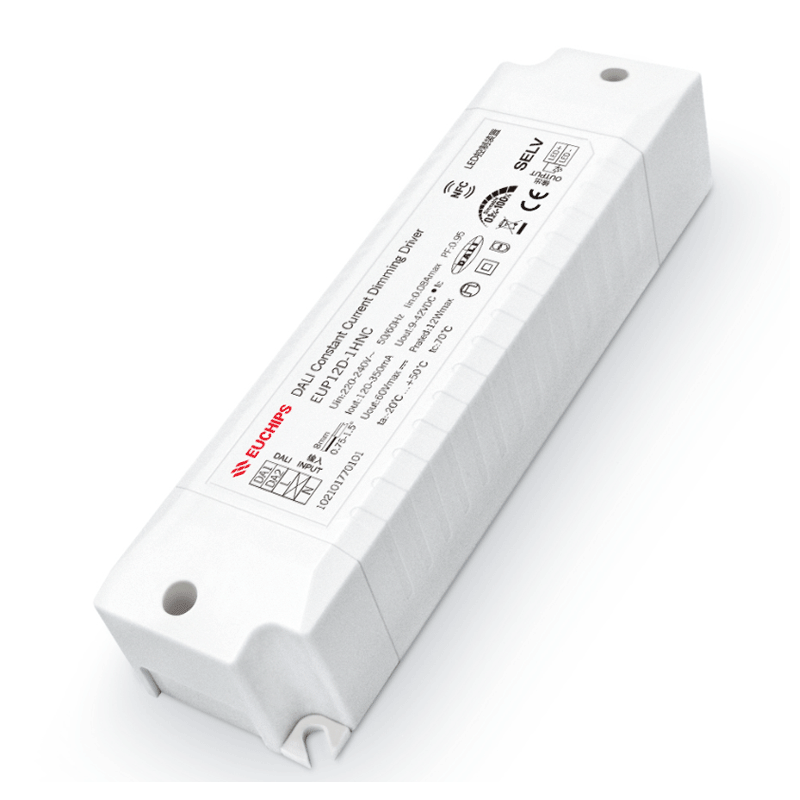

12W 120-350mA(NFC)*1ch DALI CC Driver EUP12D-1HNC
12W 120-350mA(NFC)*1ch DALI CC Driver EUP12D-1HNC
EUP12D-1HNC is an LED driver that can deliver 120-350mA of current. The output current can exceed the NFC setting, in accordance with the DALI standard protocol IEC62386. DALI master dimming, smooth curve, no stroboscopic
Features
· Single channel output, output current can be selected through NFC regulation
· Comply with DALI protocol standard IEC62386-207
· Efficiency up to 84%
· Built-in active PFC function
· Smooth dimming effect, no stroboscopic
· Protection: short circuit, overvoltage, overload
· Suitable for LED indoor lamps, such as downlights, spotlights, etc
Technical Parameters
|
Model |
EUP12D-1HNC | |
|
Input |
Efficiency | 84%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| AC Current(max) | 0.08Amax@230VAC | |
| Inrush Current(max) | Cold start,12A@230VAC 100us | |
| Standby power | <0.5W | |
| No load power | <0.5W | |
| Turn On Delay Time | <0.75s, at230Vac (When the light begins to shine) | |
|
Output |
Current / Voltage / Power | 120-350mA / 9-42V / 12W (NFC current adjustment, factory default 120mA, Maximum load power 12W) |
| Output Voltage | 9-42VDC ±5% | |
| Channel | 1 | |
| Current tolerance | ±5% | |
| Ripple | ≤34mV | |
| No Load Output Voltage | 60V Max | |
| Function | Dimming Type | DALI |
| Dimming Range | 0.3%-100% | |
| Protection | Short Circuit | Close the output and recover after troubleshooting |
| Over Load | Reduce current burp protection, self-recovery after troubleshooting | |
| Over Voltage | Reduce current burp protection, self-recovery after troubleshooting | |
|
Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA O/P-DALI( Signal port ):1500Vac/1min/<5mA | |
| Safety standard | EN61347, GB19510 | |
| EMC Emission | EN55015, EN61000-3-2 | |
| Insulation impedance | 5MΩ | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 70℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 year | |
| Switch Cycle | >25,000times | |
| Packing(weight) | Net weight: 110 g±5%/PCS; 80 PCS/Carton; 9.3 kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | |
| Dimension | 135*36*25mm (L*W*H) | |
