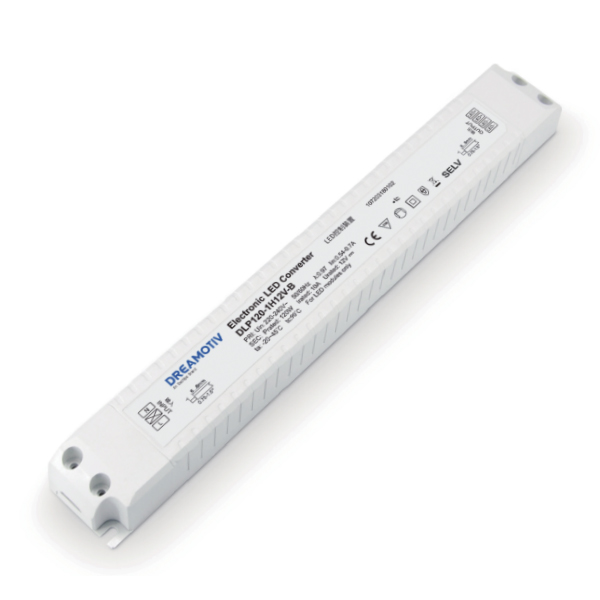

120W 12VDC Non-dimmable CV Driver DLP120-1H12V-B
120W 12VDC Non-dimmable CV Driver DLP120-1H12V-B
Features
· A channel constant voltage output
· Applicable to indoor LED lights
· Small size, high efficiency, high reliability and long life time
· -20℃~+45℃, working temp
· Protections: Over Current, Over voltage, Thermal protection, short circuit self-recovery protection
· The typical efficiency of the machine is up to 88%
· Compliance with CE and ROHS
· 100% Full load aging test
Technical Parameters
|
Model |
DLP120-1H12V-B | |
|
Input |
Efficiency | ≥88%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.97@230VAC, full load | |
| THD(full load) | ≦10%@230VAC, full load | |
| AC Current(max) | 0.54-0.7A | |
| Inrush current | Cold start,20A@230VAC 1ms | |
|
Output |
Current(mA) | 10A |
| Voltage (VDC) | 12VDC | |
| Power(W) | 120W | |
| No load output voltage | 12.6VDC MAX | |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | <0.8s, at230Vac (When the light begins to shine) | |
| Standby power | ≤0.5W | |
| Protection | Over load | Self-recovery after removal |
| Short circuit | Self-recovery after removal | |
|
Safety& EMC |
Surge | L-N:1.2KV |
| Withstand Voltage | Input-output: 3750Vac/1min/<5mA | |
| Safety Standards | IEC 62384:2006, GB24825-2009 | |
| EMC Eission | EN55015、EN61547 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Others |
Working Temp. | -20°C~45 °C@230VAC |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: –g±5%/PCS; 30PCS/Carton; –kg±5%/Carton; Carton Size:307*220*200mm(L*W*H) | |
| Dimension | 300*40*30mm（L*W*H） | |
