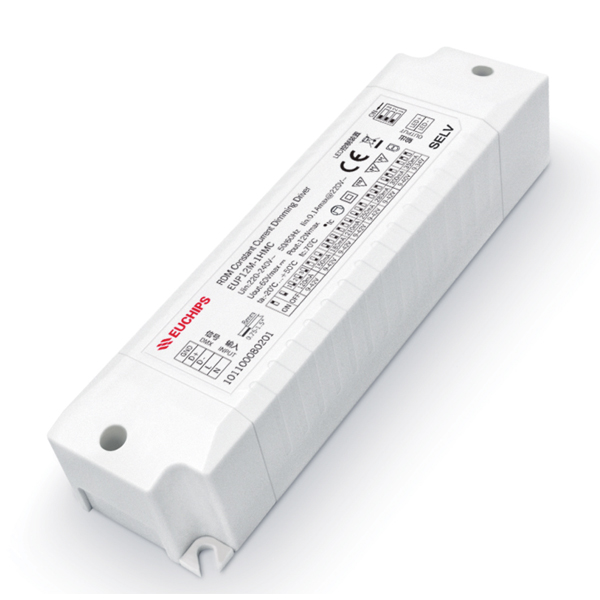

12W 120~350mA*1ch DMX CC Driver EUP12M-1HMC
120~350mA*1ch DMX CC Driver EUP12M-1HMC
EUP12M-1HMC is a 12W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DMX512(1990). EUP12M-1HMC can be connected to DMX main controller or RDM controller to achieve a smooth dimming effect.
Features
· Single channel output, output current level selectable by DIP S.W.
· Meet DMX512(1990)
· Support RDM function
· Wide input voltage of 220VAC ~ 240VAC
· High efficiency up to 86%
· Built-in active PFC function
· Dimming effect smooth, no flicker
· Protections: over load, short circuit
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
|
Model |
EUP12M-1HMC | |
|
Input |
Efficiency | 86%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| AC Current(max) | 0.1Amax@230VAC | |
| Standby power | ≤0.5W | |
| No load power | ≤0.5W | |
| Inrush Current(max) | Cold start,13A(twidth=82us at 50%Ipeak)@220VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 120mA/9-42VDC/5W 150mA/9-42VDC/6.3W 180mA/9-42VDC/7.56W 210mA/9-42VDC/8.82W 250mA/9-42VDC/10.5W 280mA/9-42VDC/11.76W 300mA/9-40VDC/12W 350mA/9-34VDC/11.9W |
| Ripple Current | ±3% | |
| Channel | 1 | |
| Current Tolerance | ±5% (±7% accuracy below 200mA) | |
| No load output voltage | 60V Max | |
| Turn on delay Time | ≤ 0.75 s, at230Vac (When the light begins to shine) | |
| Protection | Over Voltage | Reduce current burp protection, troubleshoot normal output |
| Over load | Reduce current burp protection, troubleshoot normal output | |
| Short circuit | Short circuit No output, troubleshooting output normal | |
| Function | Dimming Type | DMX |
| Dimming Range | 0.5%-100% | |
| Dimming curve | Linearity | |
|
Safety& EMC |
Surge | L-N 1KV |
| Withstand Voltage | I/P-O/P: 2000VAC/1min/5mA I/P-DIM( Signal port DMX:1500Vac/1min/<5mA | |
| Withstand Voltage | IEC/EN61347-1, IEC/EN61347-2-13 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 70℃@230Vac | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 80g±5%/PCS; 80PCS/Carton; 6.9kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | |
| Dimension | 135*36*25mm（L*W*H） | |
