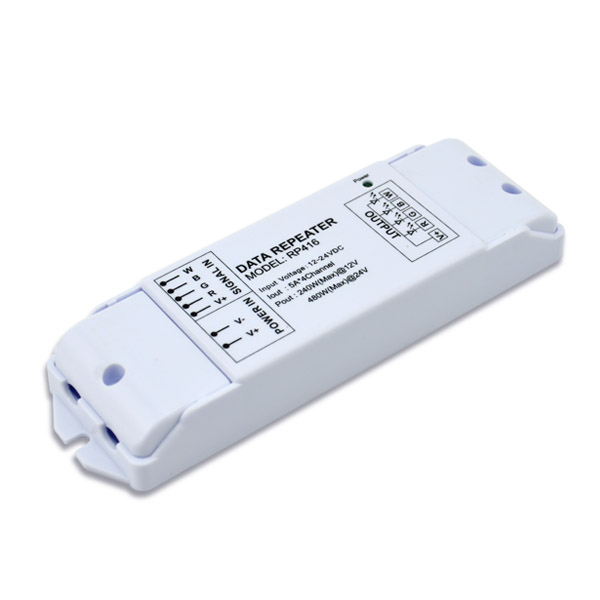

12-24VDC PWM CV Power Repeater RP416
PWM 12V 24V Constant Voltage LED Power Repeater RP416
Feature
1. Applied to power repeat of synchronous changing signal;
2. 4 channels RGB control，the max current of each channel up to 5A;
3. Accepts PWM control
4. Be used to kinds of LED modules
5. Theoretically we can connect limitless LED modules by connecting the repeaters in series.
Product Specification
| Product Name | PWM 12V 24V Constant Voltage LED Power Repeater |
| Item | RP416 |
| Input Powerspan | DC 12-24V |
| Input/output channels | 4 |
| Output power | 240W@12V/480W@24V |
| Size | 168(L)X51(W)X22(H) mm |
| Weight | 80g |
