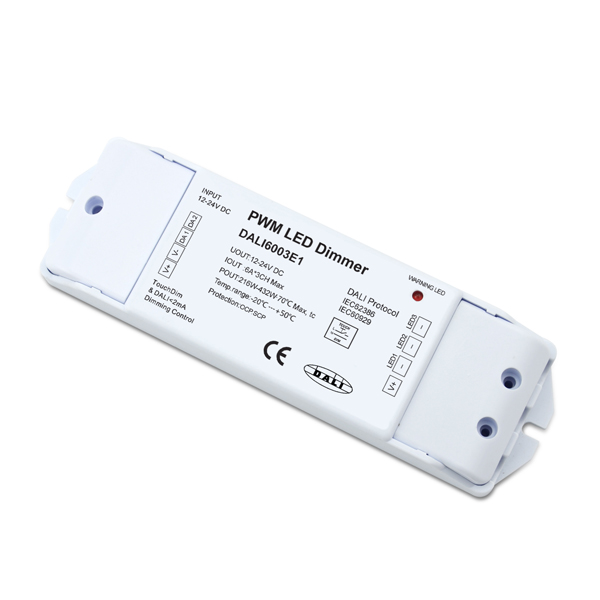

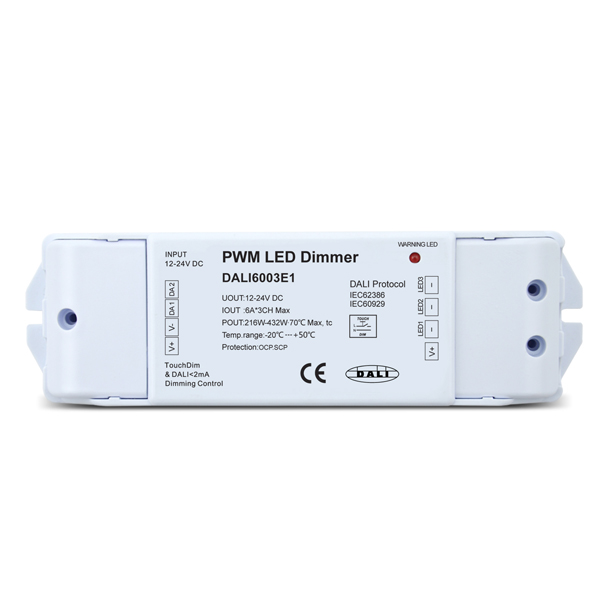

12-24VDC 6A*3ch TouchDIM CV DALI Decoder DALI6003E1

Short Description:

Item No.: DALI6003E1
Input Voltage: 12-24
Output Current: 6A*3CH
Output Voltage: 12-24
Output Power: 180~360
Dim Mode: DALI/Touch DIM
G.W.: 112
Size: 167*51*24

Product Detail

Product Tags

12-24VDC 6A*3ch TouchDIM Constant Voltage DALI Decoder DALI6003E1

Feature
1. PWM output current ㄩ MAX 6A/CH
2. DALI Digital control input, Dimming control LED module
3. Addressing output channel
4. Support Touch DIM function, and can be dimmed manually
5. Dimming range is from 0-100% (LED Will start from 1% )
6. Used for DC Power supply
7. Short circuit protection, Over load protection
8. Security level : 2
9. Three channels 12-24VDC constant voltage output

Technical?Parameter

Parameter	Min.	Nom.	Max.	Unit
Input voltage range	12	12-24	24	VDC
Touch DIM AC input voltage range	5	〞	290	VDC
Touch DIM AC input voltage frequency range	45	〞	65	Hz
12-24 V DC Input current	〞	〞	6	A/ ch
Output power	0.1	3 x 72-144	3 x 144	W
Output voltage	12	12-24	24	VDC
Output current	〞	〞	6	A/ ch
Peak current	〞	〞	7	A/ ch
Out casing temp.	〞	〞	70	⊥
Surrounding temp.	-20	〞	50	⊥
