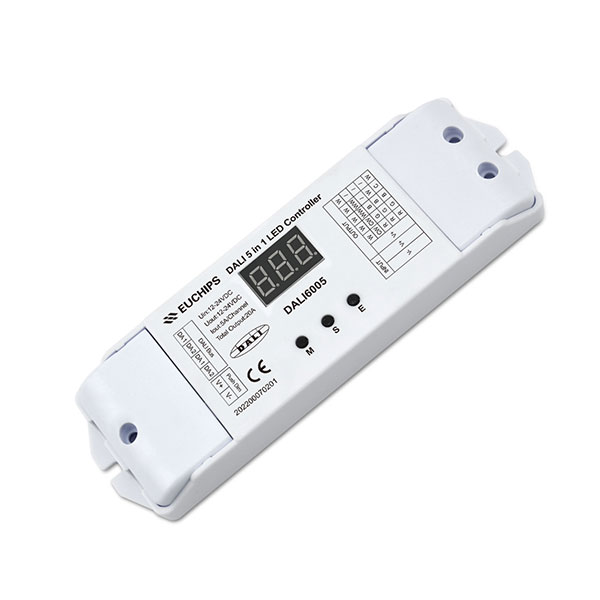

12-24VDC 5A*5ch PWM LED Dimmer DALI6005
12-24VDC 5A*5ch PWM LED Dimmer DALI6005
Features
· PWM output current: MAX 5A/CH
· DALI Digital control input, Dimming control LED module
· Addressing output channel
· Support Touch DIM function, and can be dimmed manually
· Dimming range is from 0-100% (LED Will start from 1% )
· Used for DC Power supply
· Short circuit protection, Over load protection
· Security level : 2
· 5 channels 12-24VDC constant voltage output
Technical Parameters
| Parameter | Min.* | Nom.* | Max. | Unit |
| Input voltage range | 12 | 12-24 | 24 | VDC |
| Touch DIM AC input voltage range | 12 | 12-24 | 24 | VAC |
| 12-24V DC Input current | - | - | 5 | A/ch |
| Output power | 0.1 | 5 x 60…120 | 20 x 24 | W |
| Output voltage | 12 | 12-24 | 24 | VDC |
| Output current | - | - | 5 | A/ch |
| Following DALI protocol | IEC62386 | |||
| Out casing temp | - | - | 70 | ℃ |
| Surrounding temp | -20 | - | +50 | ℃ |
| Protection | Short circuit protection | |||
| Over Current protection | ||||
