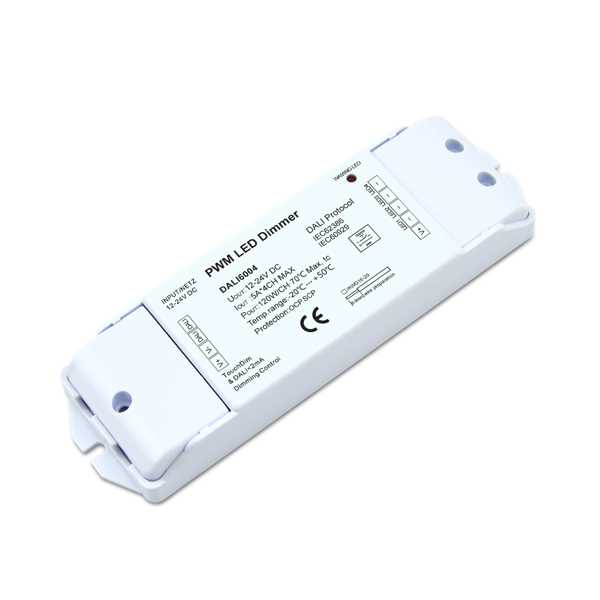

12-24VDC 5A*4ch TouchDIM CV DALI Decoder DALI6004
12-24VDC 5A*4ch TouchDIM Constant Voltage DALI Decoder DALI6004
Feature
1. PWM output current ： MAX 5A/CH
2. DALI Digital control input, Dimming control LED module
3. Addressing output channel
4. Support Touch DIM function, and can be dimmed manually
5. Dimming range is from 0-100% (LED Will start from 1% )
6. Used for DC Power supply
7. Short circuit protection, Over load protection
8. Security level : 2
9. Four channels 12-24VDC constant voltage output
Technical Parameter
| Parameter | Min. | Nom. | Max. | Unit |
| Input voltage range | 12 | 12-24 | 24 | VDC |
| Touch DIM AC input voltage range | 5 | — | 290 | VAC |
| Touch DIM AC input voltage frequency range | 45 | — | 65 | Hz |
| 12-24 V DC Input current | — | — | 5 | A/ ch |
| Output power | 0.1 | 4 x 60-120 | 4 x 120 | W |
| Output voltage | 12 | 12-24 | 24 | VDC |
| Output current | — | — | 5 | A/ ch |
| Peak current | — | — | 6 | A/ ch |
| Out casing temp. | — | — | 70 | ℃ |
| Surrounding temp. | -20 | — | 50 | ℃ |
