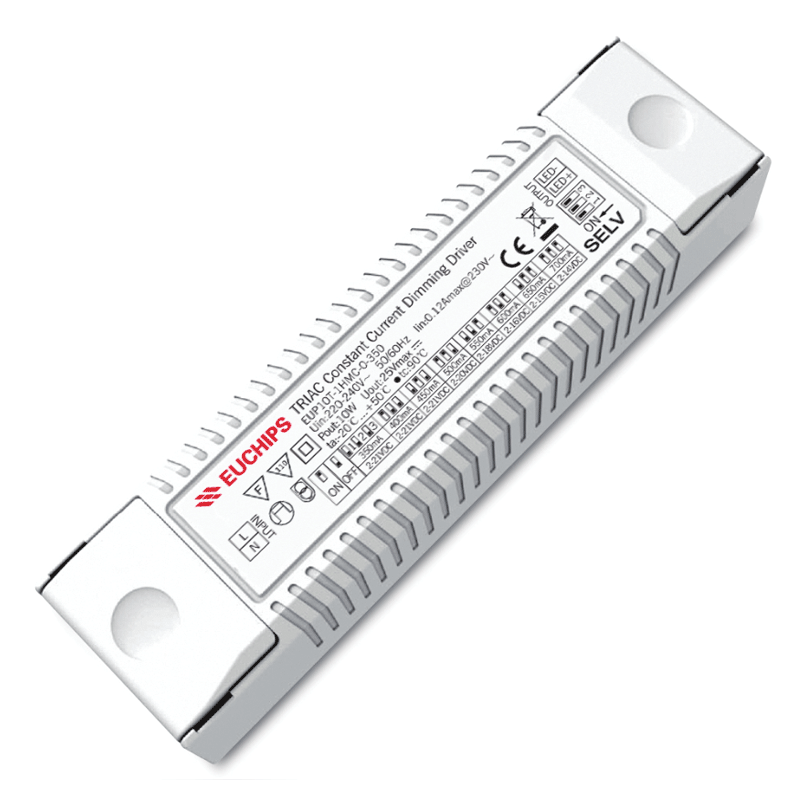

10W 350~700mA*1ch Phase-cut CC Driver EUP10T-1HMC-0-350
10W 350~700mA*1ch Phase-cut CC Driver EUP10T-1HMC-0-350
EUP10T-1HMC-0-350 is a constant output mode LED driver. The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens,Dalitek etc.) to achieve a smooth dimming effect.
Features
·Single channel output, output current level selectable byDIP S.W.
·Support Leading edge (Triac) and Trailing edge (ELV) dimmer
·Dimming range from 40VAC to 240VAC
·Class 2 power supply. Full protective plastic housing
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load
·Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
| Model | EUP10T-1HMC-0-350 | ||
| Input | Efficiency | 73%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Current | 0.12Amax@230VAC, Full load | ||
| Inrush Current | Cold start, 13A(twidth=240us measured at 50% Ipeak@230VAC | ||
| Output | Current/Voltage/Power | 350mA/2-21VDC/7.35W400mA/2-21VDC/8.4W450mA/2-21VDC/9.45W
500mA/2-20VDC/10W 550mA/2-18VDC/9.9W 600mA/2-16VDC/9.6W 650mA/2-15VDC/9.75W 700mA/2-14VDC/9.8W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±7% | ||
| No Load Output Voltage | 25V Max | ||
| Turn On Delay Time | ≤1s, @230Vac (When the light begins to shine) | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Short Circuit | Short circuit without output, troubleshooting results in normal output | |
| Over Load | Reduce current hiccup protection, troubleshoot and output normally | ||
| Over Current | Reduce current hiccup protection, troubleshoot and output normally | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 90℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing(weight) | Net weight: 90g±5%/PCS; 100PCS/Carton; 7kg±5%/Carton; Carton Size: 51.7*23.7*142cm(L*W*H) | ||
| Dimension | 110*30*22mm(L*W*H) | ||
