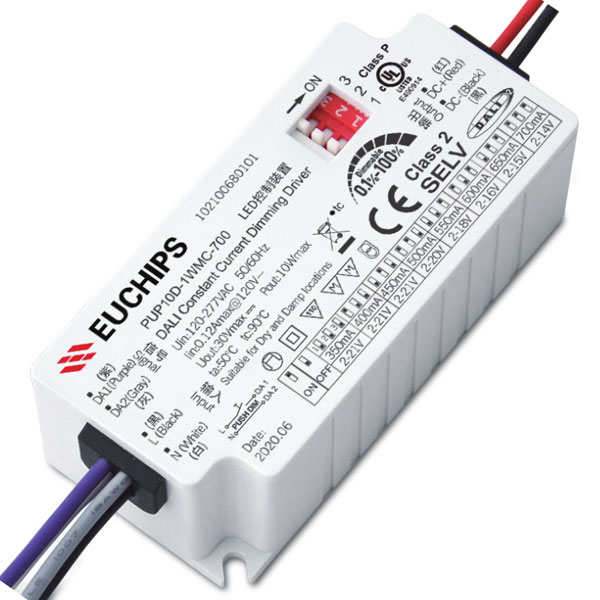

10W 350~700mA*1ch DALI CC Driver PUP10D-1WMC-700
10W 350~700mA DALI-2 Constant Current Driver PUP10D-1WMC-700
PUP10D-1WMC-700 is a constant current output mode LED driver. Support DALI dimming
function, Touch DIM (Push DIM) function. The output and dimming circuit are also
completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support DALI dimming function, Touch DIM (Push DIM) function
3. Input voltage of 120VAC ~ 277VAC
4. Dimming range: 0.1-100%，Dimming effect smooth, no flicker
5. Protections: Short circuit, Over load，Over voltage
6. Suitable for indoor LED lighting application
Technical Paramters
| Model | PUP10D-1WMC-700 | |
| Input | Voltage | 120VAC-277VAC |
| Frequency | 50/60Hz | |
| Efficiency | 79%@120VAC, Full load | |
| PF | 0.98@120VAC, Full load | |
| THD(full load) | <10%@120VAC, Full load | |
| Current | 0.12Amax@120VAC | |
| Inrush Current | Cold start,30A@120VAC | |
| Standby Power | <1W | |
| Output | Current/Voltage/Power | 350mA/2-21V/7.35W
400mA/2-21V/8.4W 450mA/2-21V/9.45W 500mA/2-20V/10W 550mA/2-18V/9.9W 600mA/2-16V/9.6W 650mA/2-15V/9.75W 700mA/2-14V/9.8W |
| Channel | 1 | |
| No load output voltage | 58V Max | |
| Frequency | 1KHz Min PWM | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
| Safety&EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Others | Dimming type | DALI/Touch DIM (Push DIM) |
| Dimming range | 0.1%-100% Dimming to off | |
| Dimension | 75*35*26.5mm(L*W*H) | |
| Pack Information | N.W: 96g±5%/PCS; 100PCS/Carton; 10.1kg±5%/Carton; Carton Size: 398x210x208mm(L*W*H) | |
| IP rating | IP20 | |
| Working temp. | -20℃~50℃ | |
| tc | 90℃ | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85℃ | |
| Material | PC | |
| Switch cycle | >25,000 times | |
