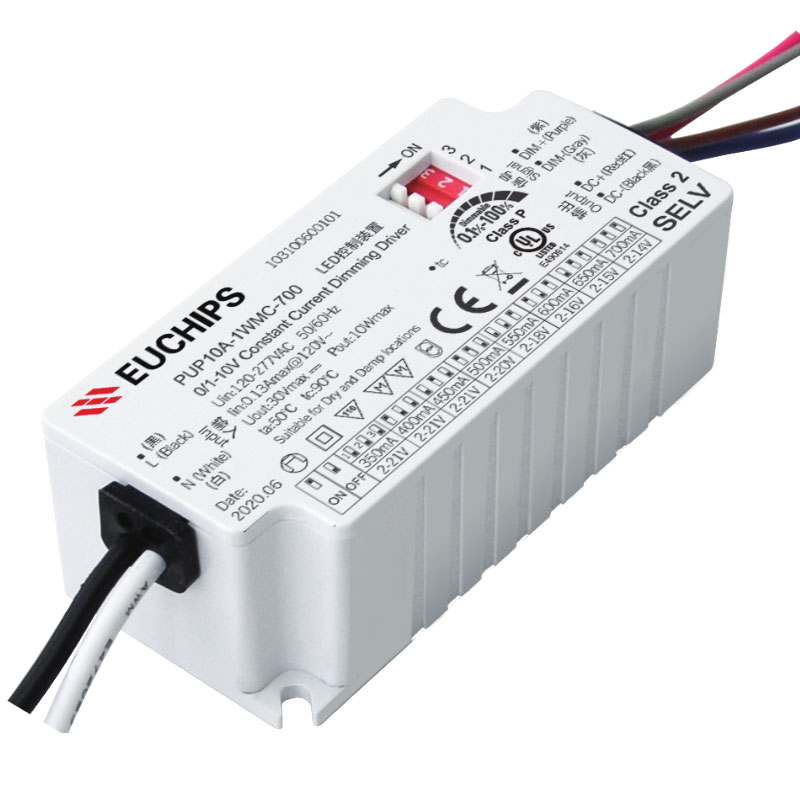

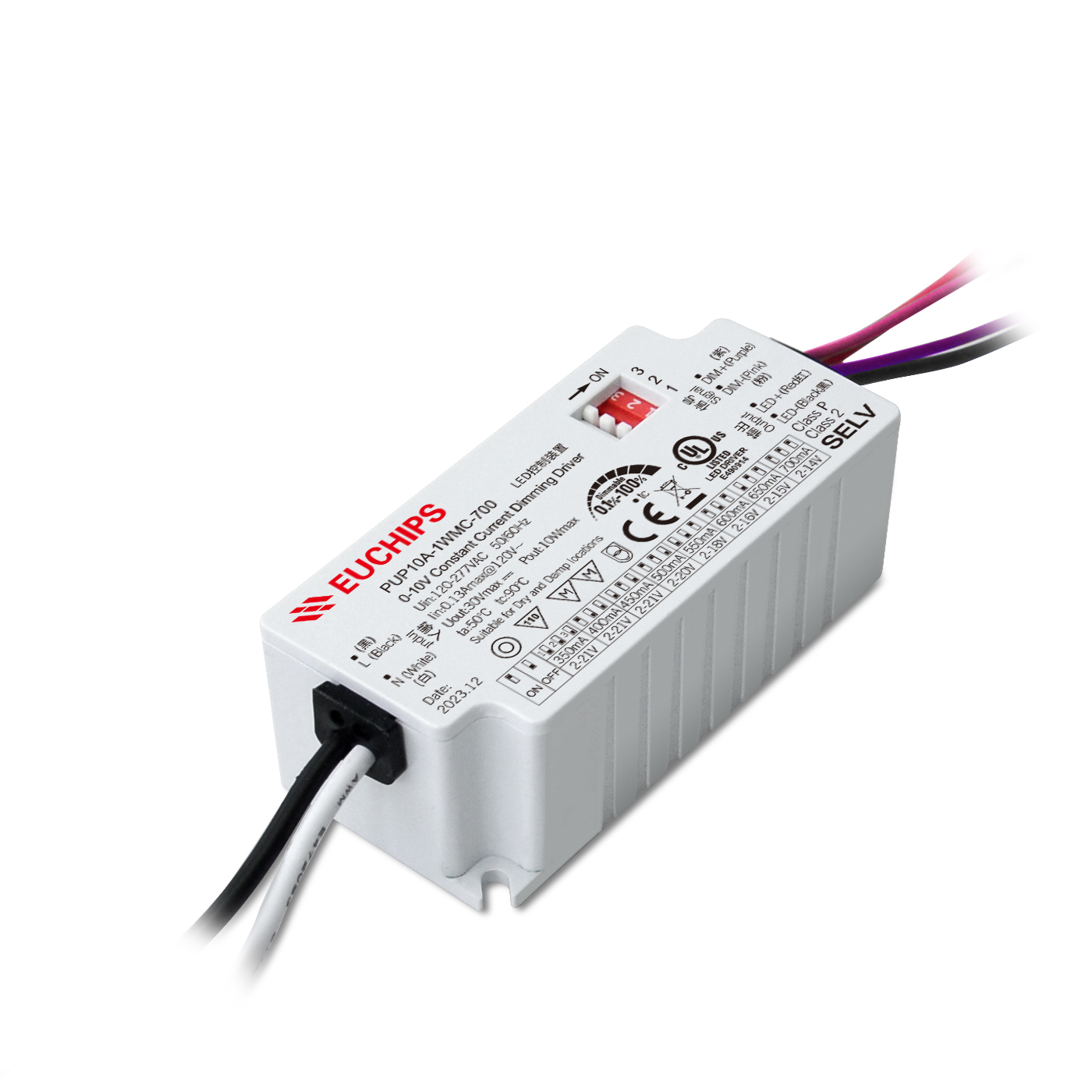

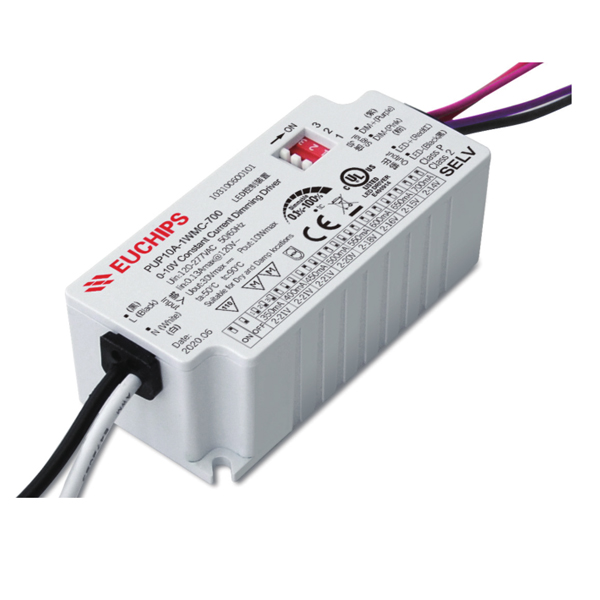

10W 350~700mA*1ch 0/1-10V CC Driver PUP10A-1WMC-700
10W 350~700mA 0/1-10V Constant Current Driver PUP10A-1WMC-700
PUP10A-1WMC-700 is a constant current output mode LED driver. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode:0/1-10V active signal, adjustable resistance, PWM
3. Input voltage of 120VAC ~ 277VAC
4. Dimming range: 0.1-100%，Dimming effect smooth, no flicker
5. Protections: Short circuit, Over load，Over voltage
6. Suitable for indoor LED lighting application
Technical Paramters
| Model | PUP10A-1WMC-700 | |
|
Input |
Efficiency | 78%@120VAC, Full load |
| Frequency | 50/60Hz | |
| Voltage | 120VAC-277VAC | |
| PF | 0.98@120VAC, Full load | |
| THD(full load) | <10%@120VAC, Full load | |
| Current | 0.13Amax@120VAC | |
| Inrush Current | Cold start,30A@120VAC | |
| Standby Power | <1W | |
|
Output |
Current/Voltage/Power | 350mA/2-21V/7.35W 450mA/2-21V/9.45W 550mA/2-18V/9.9W 650mA/2-15V/9.75W
400mA/2-21V/8.4W 500mA/2-20V/10W 600mA/2-16V/9.6W 700mA/2-14V/9.8W |
| Channel | 1 | |
| No load output voltage | 58V Max | |
| Frequency | 1KHz Min PWM | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
|
Protection |
Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Function | Dimming type | 0-10V(Type A) |
| Dimming range | 0.1%-100% Dimming to off | |
|
Others |
Dimension | 75*35*26.5mm(L*W*H) |
| Pack Information | N.W: 96g±5%/PCS; 100PCS/Carton; 10.1kg±5%/Carton; Carton Size: 398x210x208mm(L*W*H) | |
| IP rating | IP20 | |
| Working temp. | -20℃~50℃ | |
| tc | 90℃ | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85℃ | |
| Material | PC | |
| Switch cycle | >25,000 times | |
Remark: Use only within an enclosure
