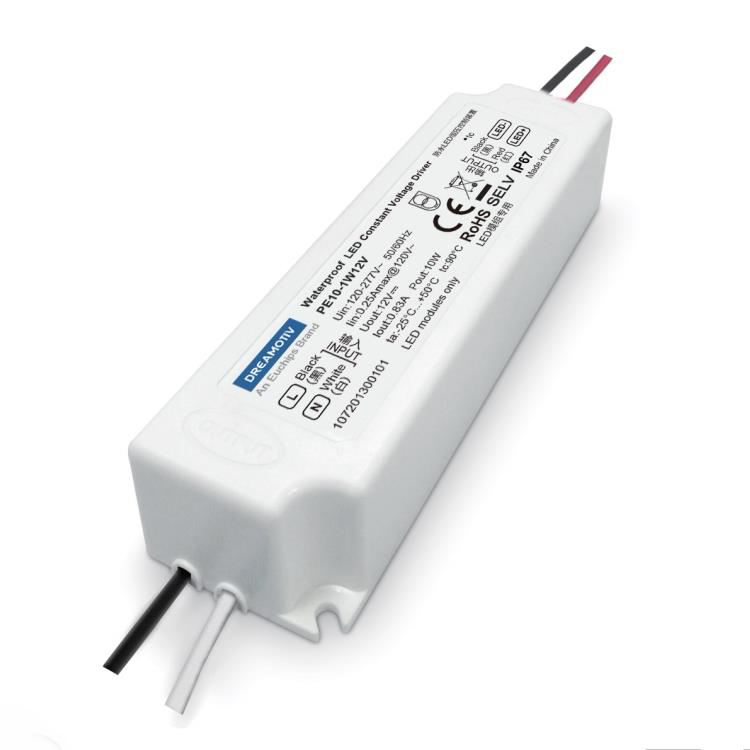

10W 12VDC Non-dimmable Waterproof CV Driver PE10-1W12V
10W 12VDC Non-dimmable Waterproof CV Driver PE10-1W12V
Features
·Width voltage input,full power output
·Insolated PC design
·Isolated design,safe and reliable
·Protections:Over load,Short circuit,over voltage
·Comply with UL/CE/SELV
·Protection grades is as high as IP67
·5 years warranty
Technical Parameters
| Model | PE10-1W12V | |
|
Input |
Efficiency | 83%@120VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Power Factor | ≥0.5@120VAC, full load | |
| Current | 0.25Amax@120VAC | |
| Standby Power | <0.5W | |
| Inrush Current | Cold start 50A@230VAC | |
| Output | Current/Voltage/Power | 0.83A/12VDC/10W |
| Ripple Current | 240mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn On Delay Time | <2s, at 120Vac | |
| Protection | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <18VDC Shut down the output, After restart recovers automatically. | |
| Over Current | <1.24A auto recovery when failure is removed | |
| Safety & EMC | Withstand Voltage | I/P-O/P:3000VAC/1min/5mA |
| Safety Standards | UL8750(type”HL”),CSA C22.2 No.250.13-12 ; EAC TC004,UL60950-1,TUV EN60350-1; J61347-1,J613447-2-13 GB19510.1,GB19510.14,UL879 | |
|
Others |
Working Temp. | -25℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | >50,000 times | |
| Packing Size | Net weight: 135g±5%/PCS; 30PCS/Carton; 4.1kg±5%/Carton; Carton Size: 330*220*205mm(L*W*H) | |
| Dimension | 98*33*25mm(L*W*H) | |
