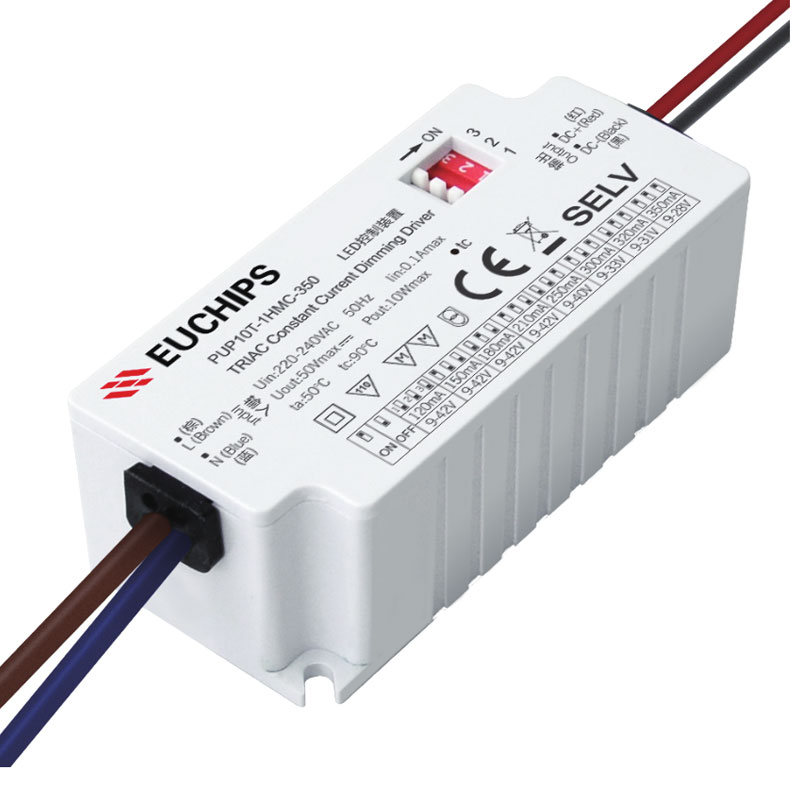

10W 120~350mA*1ch Phase-cut CC Driver PUP10T-1HMC-350
10W 120~350mA Phase-cut Constant Current LED Driver PUP10T-1HMC-350
PUP10T-1HMC-350 is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Input Voltage range 220-240VAC
4. Built-in active PFC function
5. Class Ⅱ power supply. Full protective plastic housing
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage
8. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameters
| Model | PUP10T-1HMC-350 | |
| Input | Efficiency | 70%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50/60Hz | |
| Power Factor | 0.87@230VAC, Full load | |
| Current | 0.08Amax@100VAC | |
| Inrush Current | Cold start, 30A@230VAC | |
| Output | Current/Voltage/Power | 120mA/9-42VDC/5.04W 150mA/9-42VDC/6.3W 180mA/9-42VDC/7.56W 210mA/9-42VDC/8.82W *250mA/9-40VDC/10W *300mA/9-33VDC/9.99W 320mA/9-31VDC/9.92W 350mA/9-28VDC/9.8W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No Load Output Voltage | 50V Max | |
| Turn On Delay Time | <1s, at 230Vac | |
| Protection | Over voltage | Hiccups, self recovery after removing faults |
| Over Load | Hiccups, self recovery after removing faults | |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | |
| Safety & EMC | Surge | L-N:0.5kV; |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standards | EN61347-2-13 | |
| EMC Eission | EN55015 | |
| EMC Immunity | EN61000-3-3 EN61000-4-3 EN61000-4-4 EN61000-4-5 | |
| Function | Dimming type | Triac |
| Dimming range | 3%-100% | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Pack Information | N.W: 96g±5%/PCS; 100PCS/Carton; 10.1kg±5%/Carton; Carton Size: 398x210x208mm(L*W*H) | |
| Dimension | 75*35*26.5mm(L*W*H) | |
