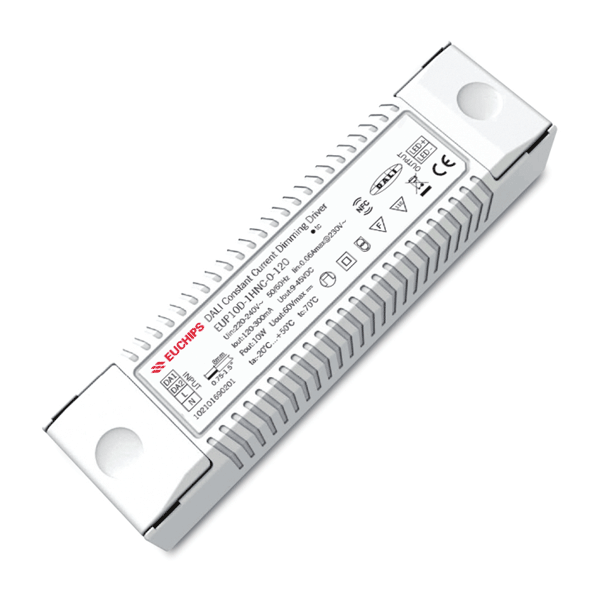

10W 120~300mA*1ch DALI CC Driver EUP10D-1HNC-0-120
10W 120~300mA*1ch DALI CC Driver EUP10D-1HNC-0-120
EUP10D-1HNC-0-120 is an LED driver that can provide 120-300mA current. The output current can exceed the NFC setting, in accordance with the DALI standard protocol IEC62386. DALI master dimming, smooth curve, no stroboscopic.
Features
· Single channel output, output current can be selected through NFC regulation
· Comply with DALI protocol standard IEC62386-207
· Efficiency up to 82%
· Built-in active PFC function
· Smooth dimming effect, no stroboscopic
· Protection: load protection, short circuit protection
· Suitable for LED indoor lamps, such as downlights, spotlights, etc
Technical Parameters
|
Model |
EUP10D-1HNC-0-120 | |
|
Input |
Efficiency | 82%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50/60Hz | |
| Power Factor | 0.95@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Current | 0.06Amax@230VAC, Full load | |
| No load power | ≤0.5W | |
| Inrush Current | Cold start,10A(twidth=10us measured at 50% Ipeak@230VAC | |
|
Output |
Current/voltage/power | 120~300mA / 9-45V / 10W |
| Output Voltage | 9-45VDC | |
| Channel | 1 | |
| Current Tolerance | ±7% | |
| Standby power | ≤1W | |
| No Load Output Voltage | 60VDC Max | |
| Turn On Delay Time | ≤ 0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Mode | DALI |
| Dimming Range | 1%-100% | |
| Protection | Overload | Current down, troubleshooting output normal |
| Short circuit | Short circuit No output, troubleshooting output normal | |
|
Safety |
Surge | L-N:500V |
| Withstand Voltage | I/P-O/P: 1000Vac/1min/<5mA O/P-DALI( Signal port ):500Vac/1min/<5mA I/P-DALI( Signal port ):500Vac/1min/<5mA | |
| Safety standards | EN61347-1,EN61347-2-13 | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| tc | 70 | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 year | |
| Switch Cycle | >100,000 times | |
| Packing weightv | Net weight: 90g±5%/ piece; 100 PCS/box; 9.5kg±5%/ box; Outer box size: 515*235*140mm(L*W*H) | |
| Dimension | 110*30*22.5mm(L*W*H) | |
