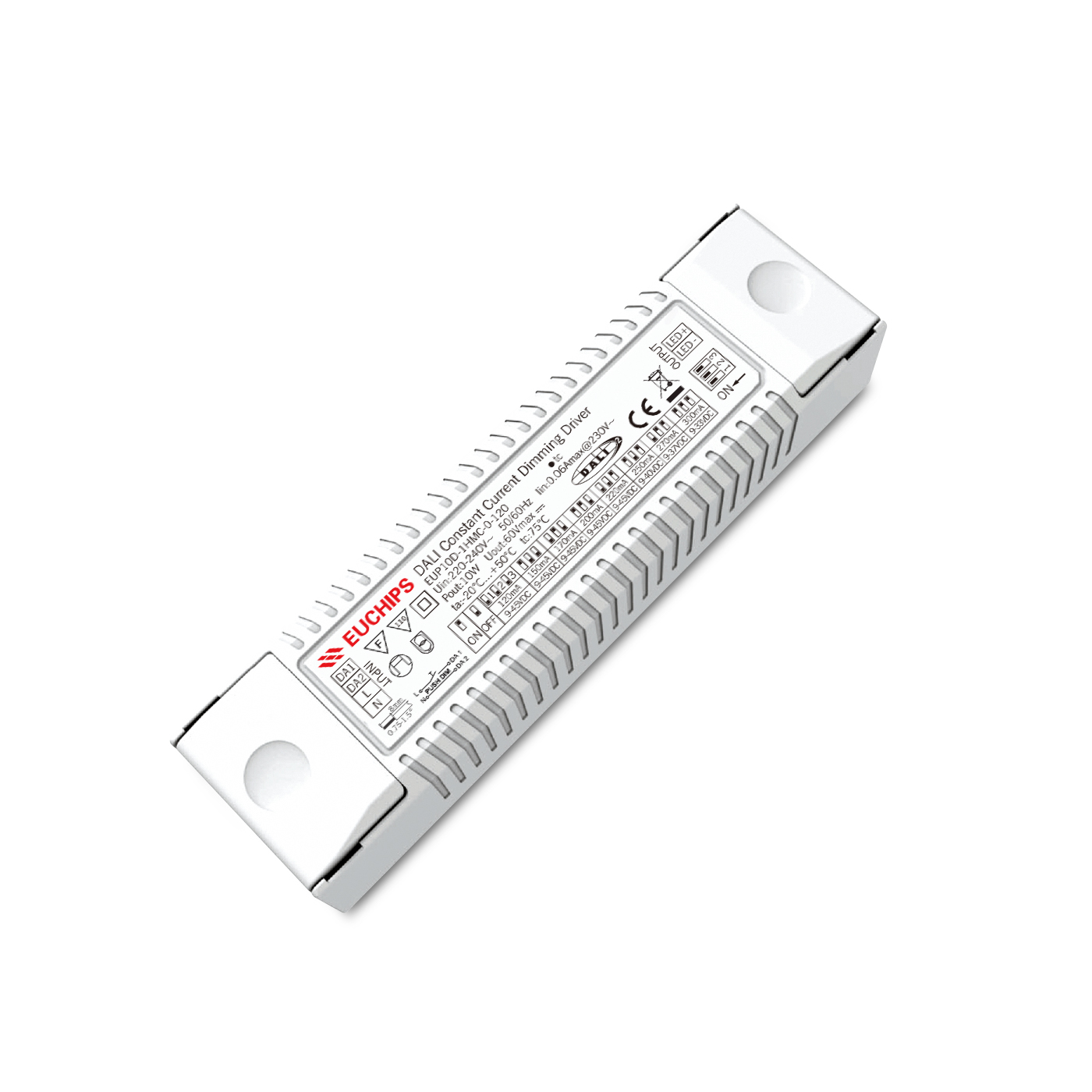

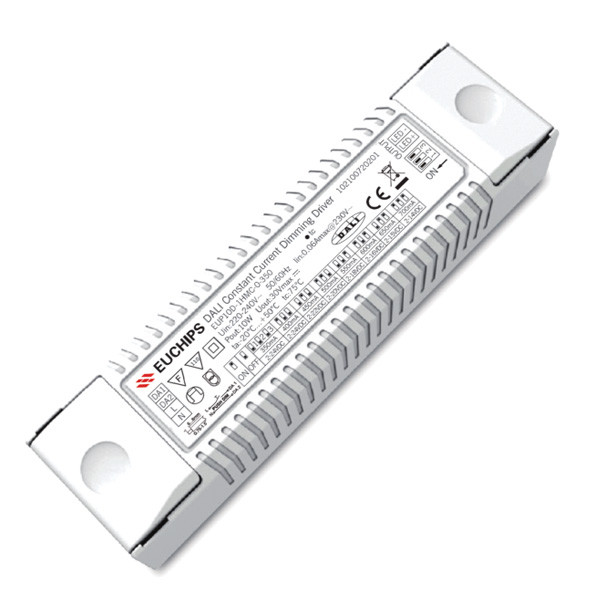

10W 120~300mA*1ch DALI CC Driver EUP10D-1HMC-0-120
10W 120/150/170/200/220/250/270/300mA DALI-2 Constant Current LED Dimming Driver EUP10D-1HMC-0-120
EUP10D-1HMC-0-120 is a 10W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP10D-1HMC-0-120 can be connected to DALI main controller or Touch DIM(Push DIM) to achieve a smooth dimming effect.
Product Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207
3. Support Touch DIM (Push DIM)function
4. High efficiency up to 82%
6. Built-in active PFC function
7. Dimming effect smooth, no flicker
8. Protections: Short circuit, over load, no load
9. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameter
| Model | EUP10D-1HMC-0-120 | ||
| Input | Efficiency | 82%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | 0.95@230VAC,Full load | ||
| THD | <10%@230VAC, Full load | ||
| Current | 0.06Amax@230VAC, Full load | ||
| Inrush Current | Cold start,10A(twidth=10us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
120mA/9-45VDC/5.4W 150mA/9-45VDC/6.75W 170mA/9-45VDC/9.9W 200mA/9-45VDC/9W 220mA/9-45VDC/9.9W 250mA/9-40VDC/10W 270mA/9-37VDC/9.99W 300mA/9-33VDC/9.9W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±7% | ||
| Standby Power | <0.5W | ||
| No load output voltage | 50VDC | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | DALI/Touch DIM(Push DIM) | |
| Dimming Range | 1%-100% | ||
| Protection | No Load | The LED Driver will not be damaged. | |
| Short Circuit | No Output, recovers automatically after fault condition is removed | ||
| Over Load | Hiccup mode, recovers automatically after fault condition is removed | ||
| Safety | Surge | L-N:500V | |
| Withstand Voltage | I/P-O/P: 1500VAC | ||
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:75℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >100,000 times | ||
| Packing Size | 515*235*140mm(L*W*H), 9.5Kg/Carton/100PCS | ||
| Dimension | 110*30*22.5mm(L*W*H) | ||
| G.W | 60g | ||
