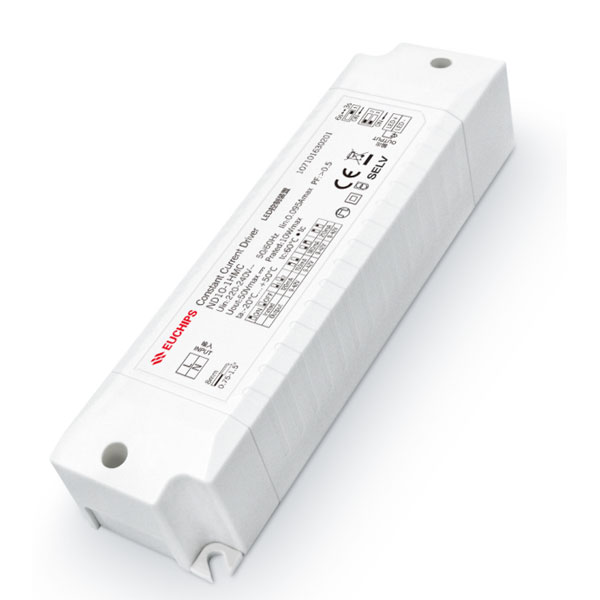

10W 120~210mA Non-dimmable CC LED Driver ND10-1HMC
10W 120~210mA Non-dimming CC LED Driver ND10-1HMC
Features
1. Single channel output, output current level selectable by DIP S.W.
2. High efficiency up to 73 %
3. Protections: Short circuit, over load, over temperature
4. Suitable for indoor LED lighting application, such as down light, panel light, and so on
5. You can adjust the 3S or 6S slowly startup time by dip switch. At the same time,it also has the function of slowly turn of
Technical Parameter
Model | ND10-1HMC | |
Input | Efficiency | 73%@230VAC,Full load |
Voltage | 220VAC-240VAC | |
Frequency | 50~60Hz | |
Power Factor | ≥0.5@230VAC,Full load | |
AC Current(max) | 0.11Amax@230VAC | |
Inrush Current(max) | Cold start,14A@230VAC 116us | |
Output | Current/Voltage/Power | 120mA/9-42VDC/5.04W 150mA/9-42VDC/6.3W 180mA/9-42VDC/7.56W 210mA/9-42VDC/8.83W |
Ripple Current | <3% | |
Channel | 1 | |
Current Tolerance | ±5% | |
Standby Power | ≤1.5W | |
No load output voltage | 50VDC Max | |
Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
Protections | Short Circuit | after fault removed Close output ,the output current recovers automatically |
Over Load | Hiccup , recovers after fault condition is removed | |
Over Voltage | Hiccup , recovers after fault condition is removed | |
Others | Working temp. | -20℃~+50℃ |
Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
Tc | 80℃ | |
Material | PC | |
IP Rating | IP20 | |
Lifetime | 30,000h@tc:70℃ | |
Warranty Condition | 3 years | |
Switch Cycle | >15,000 times | |
Packing Size | Net weight: 110 g±5%/PCS; 80 PCS/Carton; 9.3 kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | |
Dimension | 135*36*25mm(L*W*H) |
