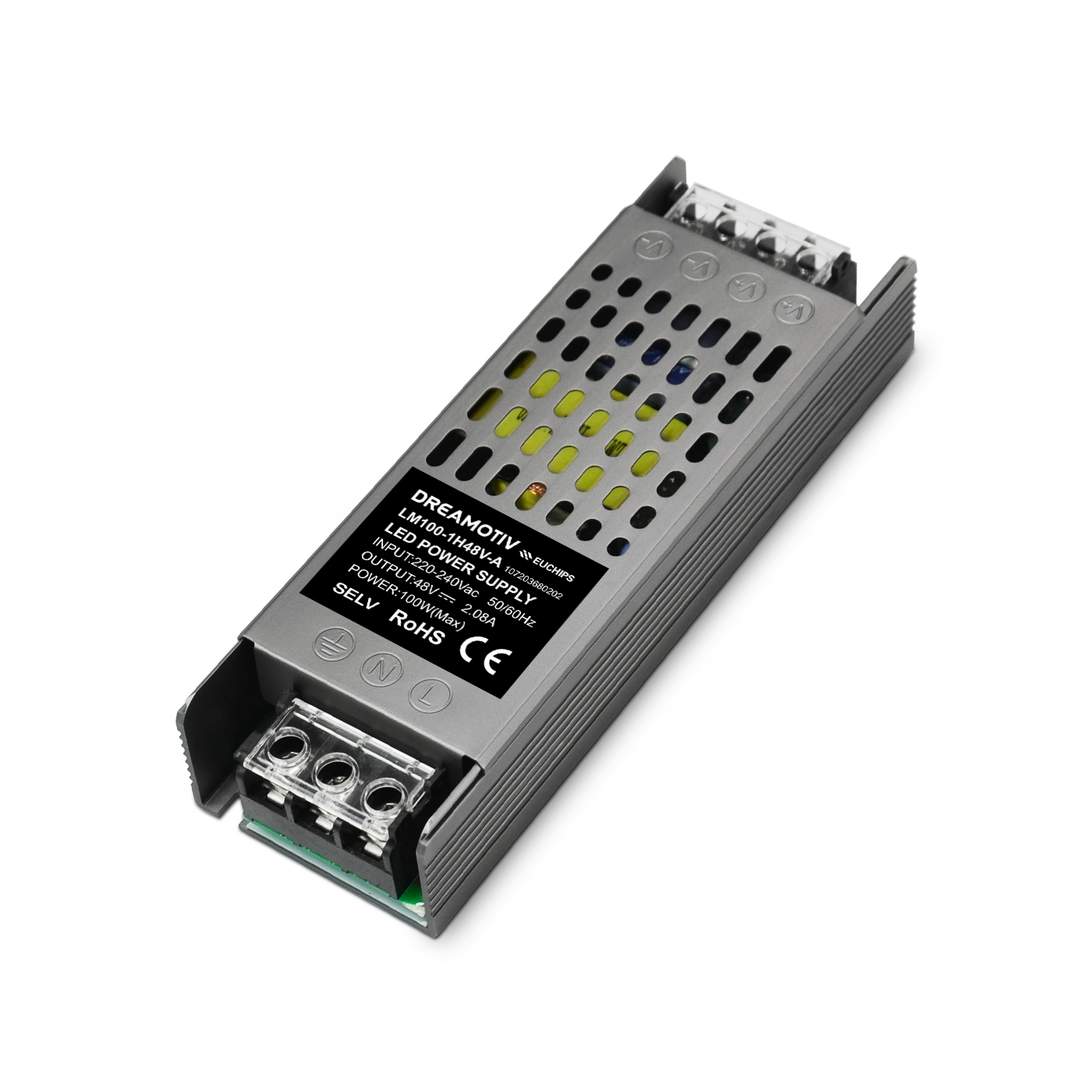

100W 48VDC Non-dimmable CV Driver LM100-1H48V-A

Short Description:

Item No.: LM100-1H48V-A
Output Power: 100W

Product Detail

Product Tags

100W 48VDC Non-dimmable CV Driver LM100-1H48V-A

The circuit of this product is simple, stable and reliable. Long aluminum structure, ordinary constant voltage simple terminal input and output Simple installation, can be used in commercial, home, engineering and other projects.

Features

· Aluminium Casing
· Ultra-low start up temp. （-20℃）
· Ultra-light and easy to install
· High efficiency up to 85%
· High reliability
· Small size, light weight
· No Flicker

Technical Parameters

Model	LM100-1H48V-A
Input	Efficiency	≥85%@230VAC
	Frequency Range(Hz)	50/60Hz
	Voltage	220-240VAC
	PF	≥0.4@230VAC
	Current	1.17Amax@230Vac
	Inrush current	Cold start,60A@230VAC 400us
	Standby power	≤1W
	No load power	≤1W
	Turn on delay Time	≤ 0.75 s, at230Vac (When the light begins to shine)
Output	Power	100W
	Output Voltage	48VDC
	Current	0～2.08A
	Frequency	65K
	Channel	1
	No load output voltage	50.4VDC max
Protection	Over load	Reduce voltage protection to troubleshoot normal output
	Short circuit	Short circuit No output, troubleshooting output normal
	Over Current	Reduce voltage protection to troubleshoot normal output
	Over Temperature	Reduce voltage protection to troubleshoot normal output
Safety& EMC	Surge	L-N 1000VAC, LN- Ground cable 2000VAC
	Withstand Voltage	Input pair Output 1500Vac/1min/<5mA Input ground (housing) 1500Vac/1min/<5mA Output ground (housing) 500Vac/1min/<5mA
	Safety standards	IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
	Insulation Resistance	5MΩ
Others	Storage Temp., Humidity	-40℃~85℃, 20-90%RH
	Working temp.	ta:-20-45℃
	Tc	85℃ @230Vac
	IP	IP20
	Lifetime	30 000h@tc:50℃
	Warranty	3 year
	Switch cycle	15,000 times
	Packing size	Net weight:–g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size: 330294200mm(LWH)
	Dimension	1455029mm(LWH)
