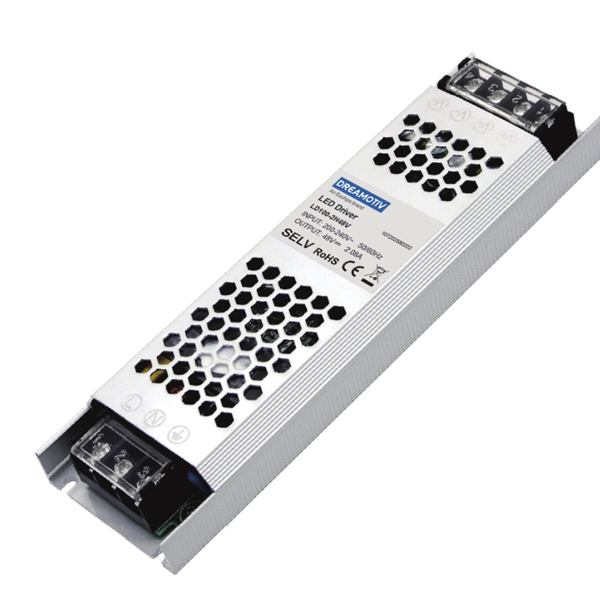

100W 48VDC 2ch Non-dimmable CV Driver LD100-2H48V
100W 48VDC 2ch LED Driver LD100-2H48V
Features
·Aluminium Casing
·Ultra-low start up temp -30°C
·Ultra-light and easy to install
·High efficiency up to 86%
·High reliability
·Wide input Voltage 180~264Vac
Technical Paramters
| Model | LD100-2H48V | |
|
Input |
Efficiency | 86%@220VAC, Full load |
| Typical Input Voltage | 200-240VAC | |
| Maximum Input Voltage Range | 180～264Vac | |
| Frequency | 50Hz | |
| Current | Max ≤1.2A @ 230Vac | |
| Inrush Current | Less than 65A/230Vac, cold start | |
| Leakage Current | <0.75mA/240Vac | |
|
Output |
Current | 0～2.08A |
| Voltage | 48VDC | |
| Power | 100W | |
| Ripple & noise | 400mVp-p | |
| Output Voltage range | 45.6～50.4V | |
| Channel | 2 | |
| Line Regulation | 1% | |
| Load Regulation | 2% | |
| Voltage Tolerance | ±5% | |
| Turn On Delay Time | 1.5S, 20mS@230Vac | |
| Protection | Short Circuit | Protection Type : Hiccup mode, Auto-recovery |
| Over Load | 110%～150% of rated load. | |
| Safety | Withstand Voltage | Input-FG: 1500Vac or 2121Vdc, Input-Output: 1500Vac or 2121Vdc, Output-FG: 500Vac or 707Vdc |
| Isolation Resistance | Input-FG: >100MΩ 500Vdc @25°C &70RH; I/P-O/P: >100MΩ 500Vdc @25°C &70RH; O/P-FG: >100MΩ 500Vdc @25°C &70RH | |
|
Others |
Working Temp. | -30~+60°C, 20~90% |
| Storage Temp.; Humidity | -30°C~+70°C, 20%~95%RH | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:65°C | |
| Warranty Condition | 3 Years | |
| Switch Cycle | >15,000 times | |
| Packing Size | Net weight: 210g±5%/PCS; 100PCS/Carton; 24.2kg±5%/Carton; Carton Size: 420*290*315mm(L*W*H) | |
| Dimension | 187*53*22mm(L*W*H) | |
