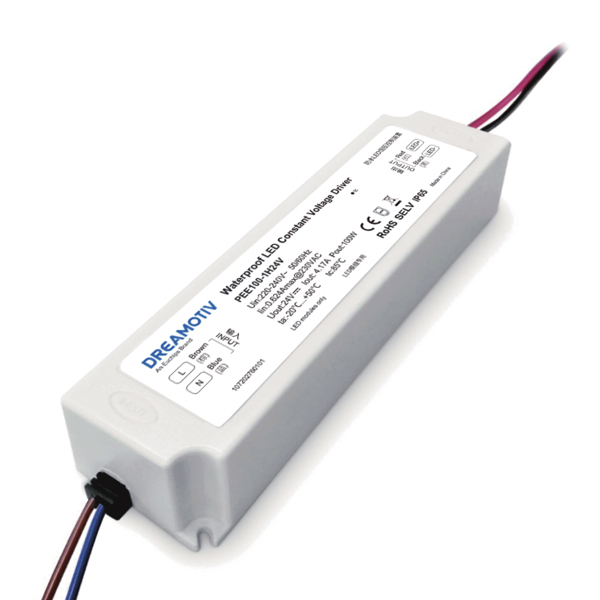

100W 24VDC Non-dimmable Waterproof CV Driver PEE100-1H24V
100W 24VDC Non-dimmable CV Driver PEE100-1H24V
Features
·full power output
·Insolated PC design
·Isolated design,safe and reliable
·Protections:Over Voltage,Short circuit,over Current
·Protection grades is as high as IP65
·5 years warranty
·No Flicker
Technical Parameters
| Model | PEE100-1H24V | |
| Input | Efficiency | >88%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50/60Hz | |
| Power Factor | ≥0.95@230VAC, full load | |
| THD | <10%@230VAC, full load | |
| Current | 0.624Amax@230VAC | |
| No load output voltage | <0.5W | |
| Inrush Voltage | Cold start,43A@230VAC 312us | |
| Output | Current/Voltage/Power | 4.17A/24VDC/100W |
| Ripple Current | ≤200mV | |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| Turn On Delay Time | ≤0.5 s, at230Vac (When the light begins to shine) | |
| Protection | Short Circuit | Short circuit no output, troubleshooting self recovery |
| Over Voltage | Reduced voltage hiccup protection, fault elimination self-recovery | |
| Over Current | Reduced voltage hiccup protection, fault elimination self-recovery | |
| Safety & EMC | Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3750Vac/1min/<5mA | |
| Safety Standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40 ~85 20-90%RH | |
| Tc | 85℃ | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 550g±5%/PCS; 20PCS/Carton; 11.5kg±5%/Carton; Carton Size: 333*218*205mm(L*W*H) | |
| Dimension | 190*52*38mm(L*W*H) | |
